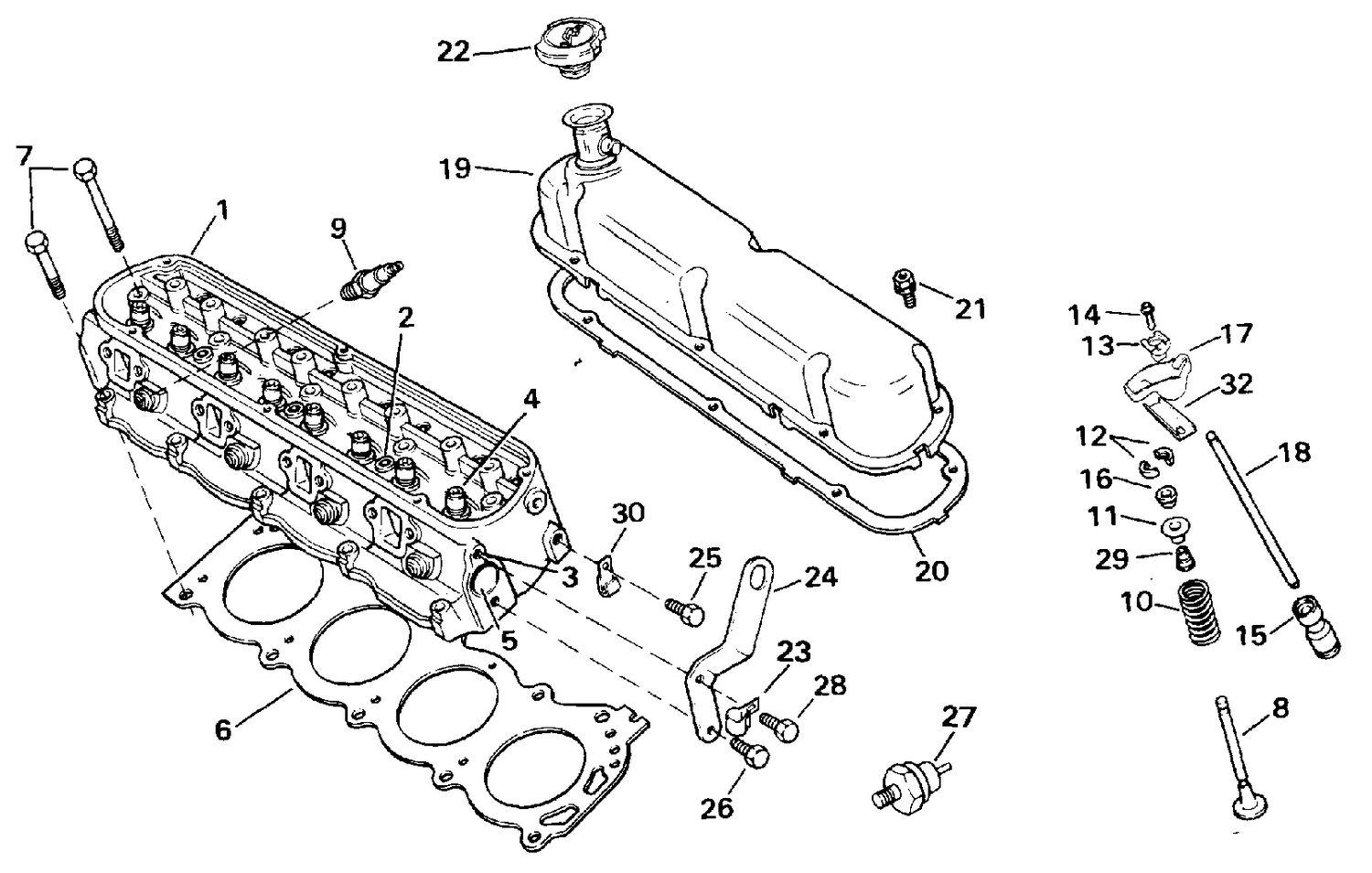

| Ref | Part Number | Description |
|---|
| 1 |
3858868 |
Cylinder Head Ay This part replaces 3854214. |
| 2 |
3853015 |
PLUG, Core hole |
| 3 |
3853016 |
INSERT, Thermactor hole |
| 4 |
3853017 |
BUSHING, Valve guide |
| 5 |
3852650 |
PLUG, Core hole |
| 6 |
3853732 |
GASKET, Cylinder head |
| 7 |
3852769 |
BOLT, Cylinder head, 4 in. |
| 7 |
3852770 |
BOLT, Cylinder head, 2 1/2 in. |
| 8 |
3853730 |
VALVE, Intake, standard |
| 8 |
3853731 |
VALVE, Exhaust, standard |
| 9 |
3851869 |
Shop Pk Rs9Yc This part replaces 3854398. |
| 10 |
3853777 |
SPRING, Valve, exhaust |
| 10 |
3853778 |
SPRING, Valve, intake |
| 11 |
3852811 |
RETAINER, Valve spring, exhaust |
| 11 |
3853766 |
RETAINER, Spring, intake |
| 12 |
3852672 |
KEY, Valve spring retainer |
| 13 |
3852671 |
SEAT, Rocker arm |
| 14 |
3852814 |
BOLT, Rocker arm |
| 15 |
3853847 |
TAPPET |
| 16 |
3853813 |
CLAMP, Heater |
| 17 |
3852815 |
ROCKER ARM |
| 18 |
3852817 |
PUSH ROD, Standard |
| 19 |
3853907 |
VALVE COVER, Port |
| 19 |
3854236 |
VALVE COVER, Starboard |
| 20 |
3852818 |
GASKET, Valve cover |
| 21 |
3853037 |
SCREW, Valve cover |
| 22 |
3852707 |
CAP, Oil fill |
| 23 |
3852837 |
CLAMP, Hoses to cylinder head |
| 24 |
3853583 |
BRACKET, Lift, front |
| 24 |
3853631 |
BRACKET, Lift, rear |
| 25 |
3853419 |
SCREW, Clamp, front |
| 26 |
3853557 |
SCREW, Brace to alterntr bracket |
| 27 |
3853956 |
SENSOR, Engine knock |
| 28 |
3853154 |
SCREW, Bracket to cylinder head |
| 29 |
3852670 |
SEAL, Intake |
| 29 |
3853771 |
SEAL, Exhaust |
| 30 |
3852434 |
CLAMP, Engine cable |
