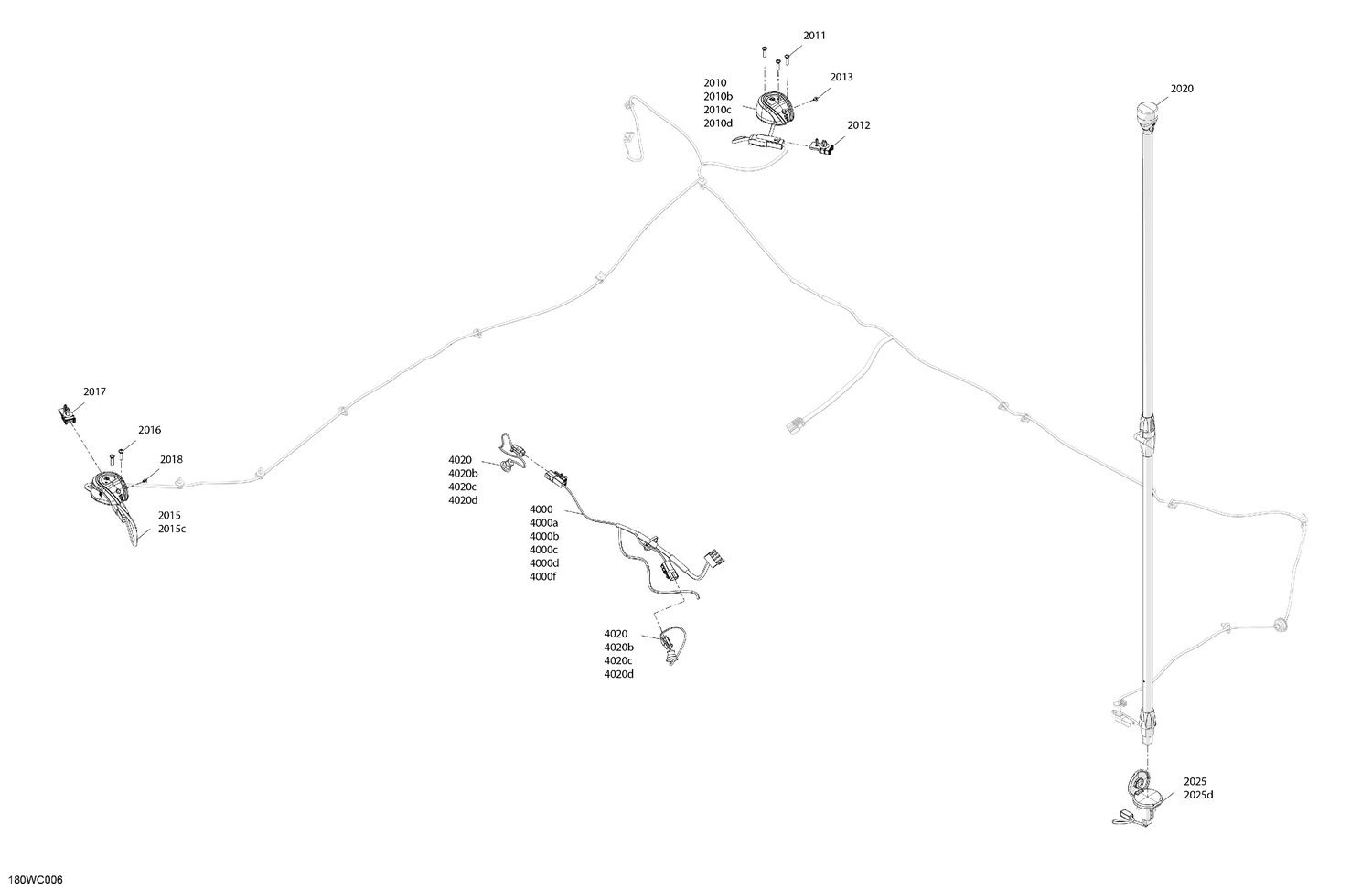

09-ELECTRICALS - Lighting
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2010b | 515178579 | Amphenol Female Connector 2 Cavities |
| 2010c | 710005438 | Female Terminal |
| 2010d | 515178580 | Amphenol Lock Connector |
| 2011 | 250000287 | Flange Torx Screw K40 X 16 |
| 2012 | 710006744 | Deutsch Connector Support |
| 2013 | 250001243 | Screw Plastite Torx K30 X 8 |
| 2015c | 710005748 | Terminal |
| 2016 | 250000287 | Flange Torx Screw K40 X 16 |
| 2017 | 710006744 | Deutsch Connector Support |
| 2018 | 250001243 | Screw Plastite Torx K30 X 8 |
| 2020 | 278003778 | White, All Round Navigation Light |
| 2025d | 710005748 | Terminal |
| 4000a | 515178023 | Housing |
| 4000b | 278002860 | Sealing Cap |
| 4000c | 515178013 | Male Terminal |
| 4000d | 710005748 | Terminal |
| 4000f | 710005748 | Terminal |
| 4020b | 515178579 | Amphenol Female Connector 2 Cavities |
| 4020c | 710005439 | Female Terminal |
