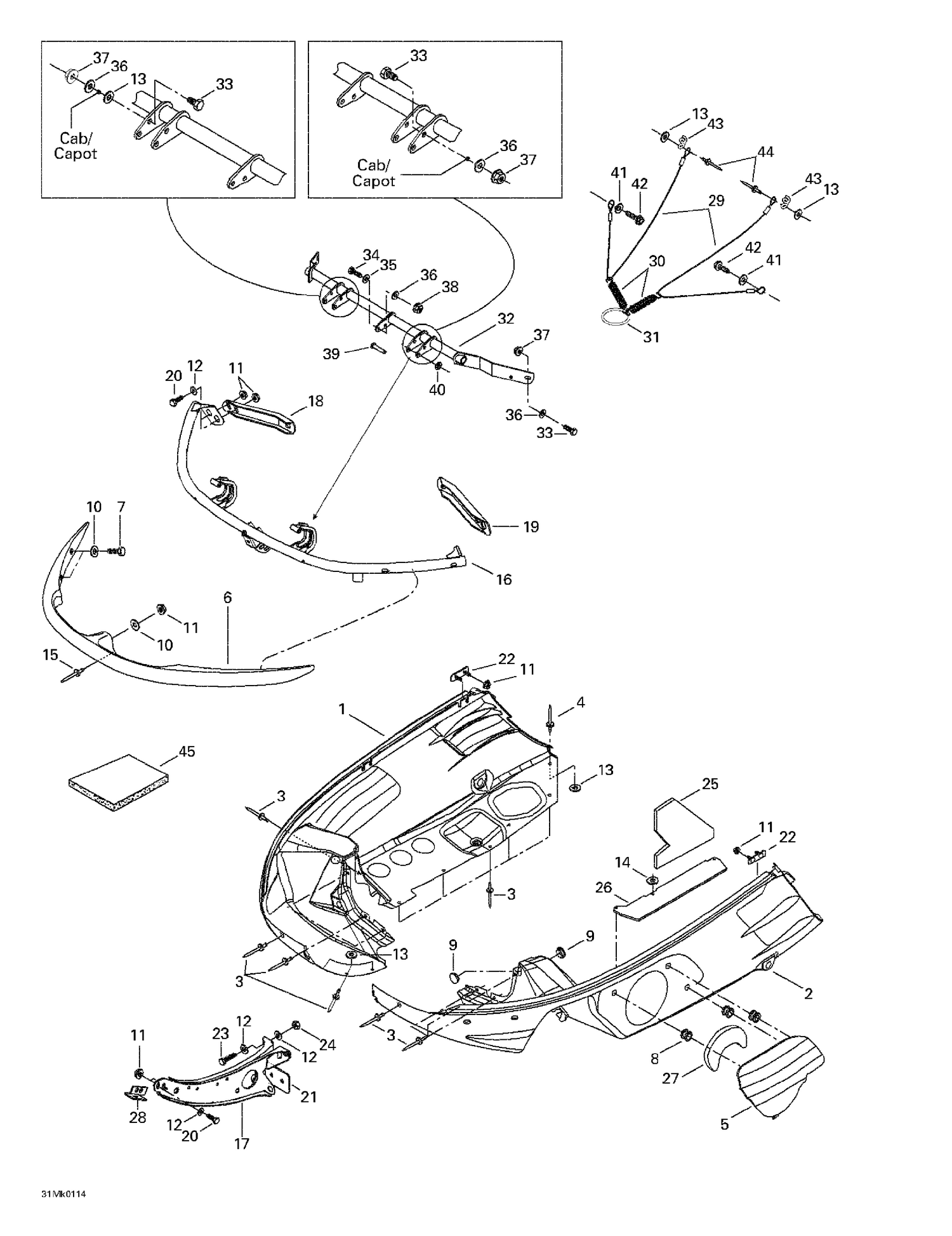

| Ref | Part Number | Description |
|---|
| 1 |
572087000 |
Deep Black, RH Bottom Pan |
| 2 |
572087100 |
Deep Black, LH Bottom Pan |
| 3 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 4 |
390402300 |
Pop Rivet 3/16" |
| 5 |
572098500 |
DEEP BLACK, BOTTOM PAN DOOR - Call your local BRP dealership |
| 6 |
572087200 |
Deep Black, Front Bumper |
| 7 |
207063044 |
Hex. Screw M6 X 30 |
| 8 |
414036300 |
Grommet |
| 9 |
414916600 |
Black, Nylon Cap |
| 10 |
224061201 |
Flat Washer |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
224061121 |
Flat Washer |
| 13 |
517124300 |
Washer |
| 14 |
517225900 |
Flat Washer |
| 15 |
390906800 |
Pop Rivet 3/16" |
| 16 |
502006523 |
Hinge Bracket |
| 17 |
502006549 |
Center Support |
| 18 |
517288400 |
RH Support |
| 19 |
517288500 |
LH Support |
| 20 |
207162044 |
Hex. Screw M6 X 20 |
| 21 |
517288600 |
Plate |
| 22 |
517294300 |
Bracket |
| 23 |
207066044 |
Hex. Screw M6 X 60 |
| 24 |
232561414 |
Elastic Stop Nut M6 |
| 25 |
415111300 |
Foam, Bottom Pan |
| 26 |
517299500 |
Protector |
| 27 |
415112800 |
Foam, Door |
| 28 |
517302009 |
Front Support |
| 29 |
415093900 |
RETAINER CABLE - Call your local BRP dealership |
| 30 |
414185600 |
Spring |
| 31 |
415058300 |
RING - Call your local BRP dealership |
| 32 |
517302187 |
Hinge |
| 33 |
207151644 |
Hex. Screw M5 X 16 |
| 34 |
207141644 |
HEX. SCREW M4 X 16 - Call your local BRP dealership |
| 35 |
391301000 |
WASHER - Call your local BRP dealership |
| 36 |
420845330 |
WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270. |
| 37 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 38 |
232541484 |
Elastic Stop Nut M4 This part replaces 233241414. |
| 39 |
390004800 |
RIVET-STEEL SOLID - Call your local BRP dealership |
| 40 |
389804300 |
Push Nut |
| 41 |
391301600 |
Washer |
| 42 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 43 |
517262800 |
Bracket |
| 44 |
390406500 |
Pop Rivet 3/16" |
| 45 |
414632400 |
Acoustic Foam |
| 390906800 |
Pop |
Rivet 3/16" This part replaces 390910200. 390906800 |
| 390906800 |
Rivet |
Pop 3/16" This part replaces 390910200. 390906800 |
| 502006565 |
2000 |
Yellow, RH Bottom Pan 502006565 |
| 502006565 |
RH |
Bottom Pan (Yellow 2000 (B-190)) 502006565 |
| 502006567 |
2000 |
Yellow, LH Bottom Pan 502006567 |
| 502006567 |
LH |
Bottom Pan (Yellow 2000 (B-190)) 502006567 |
| 502006568 |
2000 |
Yellow, Bottom Pan Door 502006568 |
| 502006568 |
Bottom |
Pan Door (Yellow 2000 (B-190)) 502006568 |
| 572111201 |
2000 |
Yellow, Front Bumper 572111201 |
