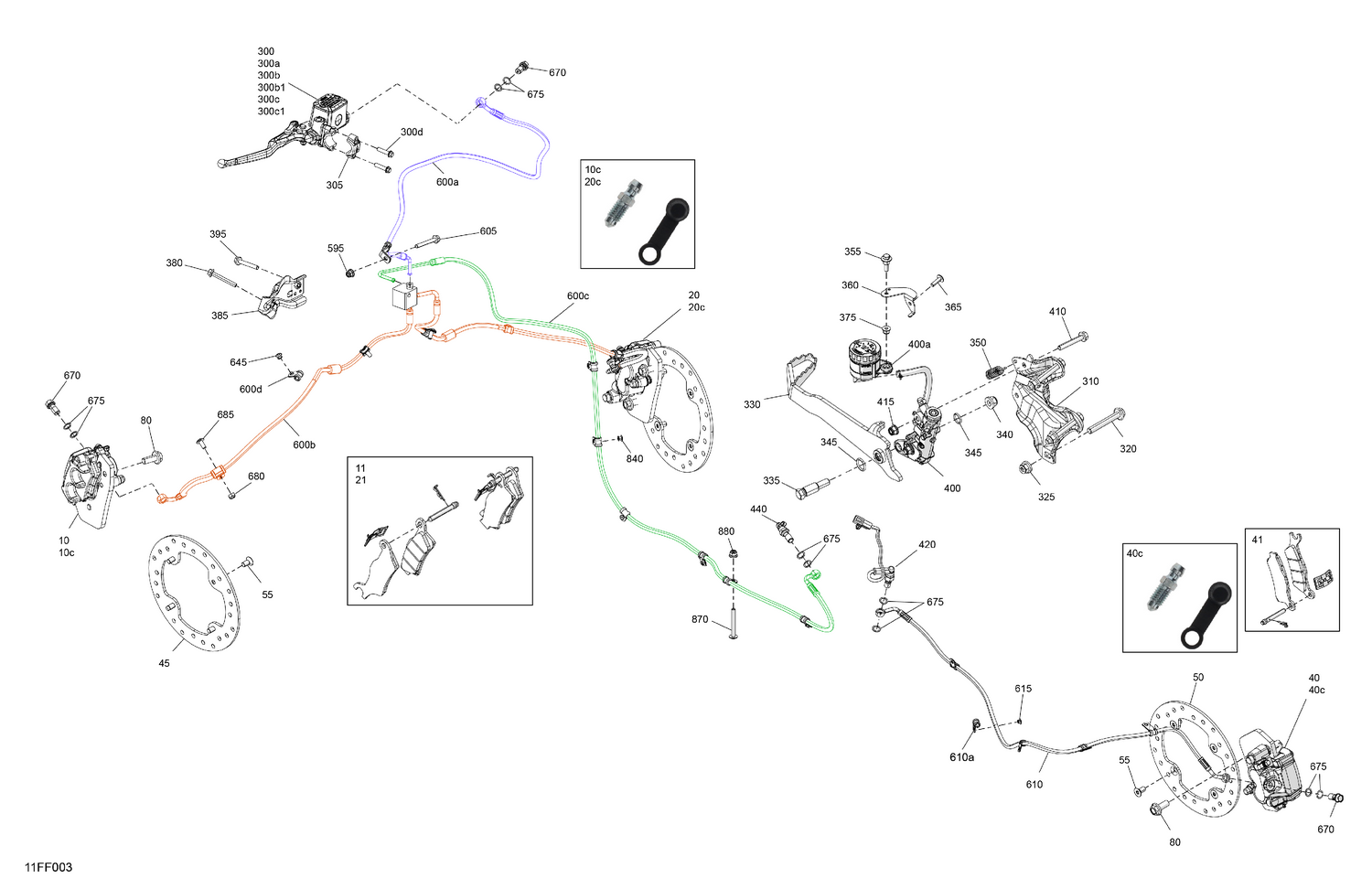

03- Mechanic - Brake System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 705601017 | Bleeding Screw |
| 11 | 705602167 | LH/RH Pads Kit |
| 20c | 705601017 | Bleeding Screw |
| 21 | 705602167 | LH/RH Pads Kit |
| 40c | 705601017 | Bleeding Screw |
| 41 | 705602168 | RH Pads Kit |
| 45 | 705602348 | Brake Disc |
| 50 | 705602348 | Brake Disc |
| 55 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 80 | 207502546 | Hex. Flange Screw M10 X 25 |
| 300a | 705602075 | Master Cylinder Lever |
| 300b1 | 250000447 | Hex. Flange Screw M6 X 25 |
| 300c1 | 415129356 | Screw M4 X 20 |
| 300d | 229000711 | Hex Flange Screw M6 X 25 |
| 305 | 507032477 | Clamp And Screw Kit This part replaces 507032726. |
| 310 | 705207200 | Master Cylinder Support |
| 320 | 207607046 | Hex. Flange Screw M10 X 70 |
| 325 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 330 | 705602192 | Brake Pedal |
| 335 | 250000513 | Shoulder Screw M10 |
| 340 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 345 | 293300285 | O-Ring Seal |
| 350 | 705600792 | Brake Pedal Spring |
| 355 | 705602073 | Oil Tank Screw |
| 360 | 705208962 | Oil Tank Support |
| 365 | 250000722 | Torx Screw M6 X 20 |
| 375 | 233261466 | Hex. Flange Elastic Nut M6 |
| 380 | 207664544 | Hex. Flange Screw M6 X 45 |
| 385 | 705602234 | Hose Support |
| 395 | 207664044 | Hex. Flange Screw M6 X 40 |
| 400a | 705602138 | Brake Fluid Reservoir |
| 410 | 207685044 | Hex. Flange Screw M8 X 50 |
| 415 | 233281414 | Hex. Flange Elastic Nut M8 |
| 420 | 705601250 | Brake Switch |
| 440 | 705601051 | Bleeding Screw |
| 595 | 233261466 | Hex. Flange Elastic Nut M6 |
| 600a | 705602229 | LH Front Master Cylinder Hose |
| 600b | 705602230 | Brake Hose |
| 600c | 705602231 | Brake Hose |
| 600d | 293650256 | Clamp |
| 605 | 207664544 | Hex. Flange Screw M6 X 45 |
| 610a | 293650256 | Clamp |
| 615 | 293150293 | Pop Rivet 3/16 X ,425 |
| 645 | 293150293 | Pop Rivet 3/16 X ,425 |
| 670 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 675 | 414920600 | Washer |
| 680 | 293150293 | Pop Rivet 3/16 X ,425 |
| 685 | 250000789 | Torx Truss M6X14 |
| 840 | 293150293 | Pop Rivet 3/16 X ,425 |
| 870 | 250000317 | Torx Screw M6 X 50 |
