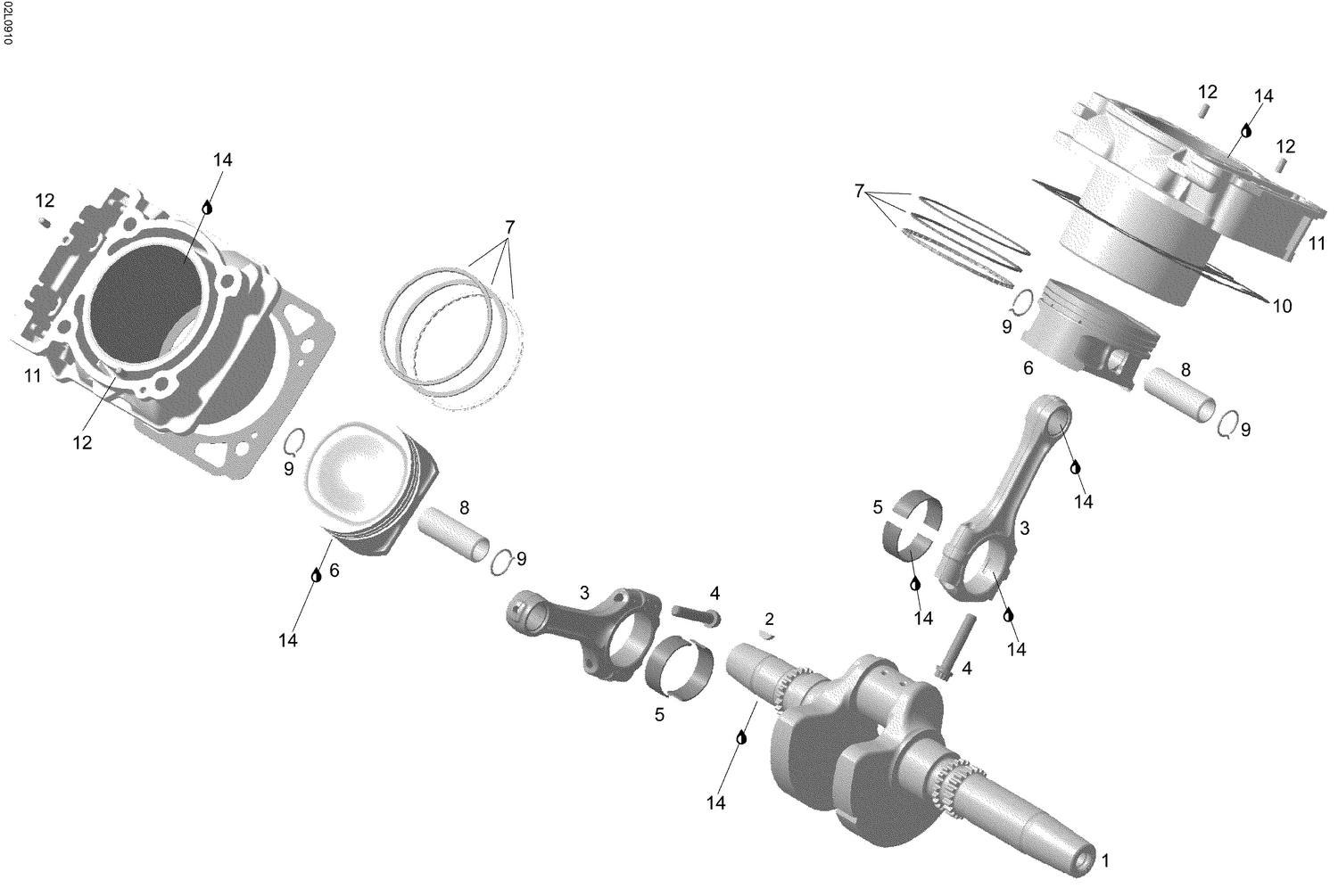

01- Crankshaft And Pistons
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420819355 | CRANKSHAFT ASS'Y - Call your local BRP dealership |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641645 | Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 | 420233980 | Plain Bearing 40 X 43 X 15 |
| 7 | 420296774 | Piston Ring Set |
| 7 | 420296776 | Piston Ass'y, Oversize, 91.208 mm |
| 8 | 420216270 | Piston Pin |
| 9 | 420845106 | Piston Circlip |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 12 | 420929650 | Drive Pin 5 X 10 |
| 13 | 420684133 | GASKET SET - Call your local BRP dealership |
