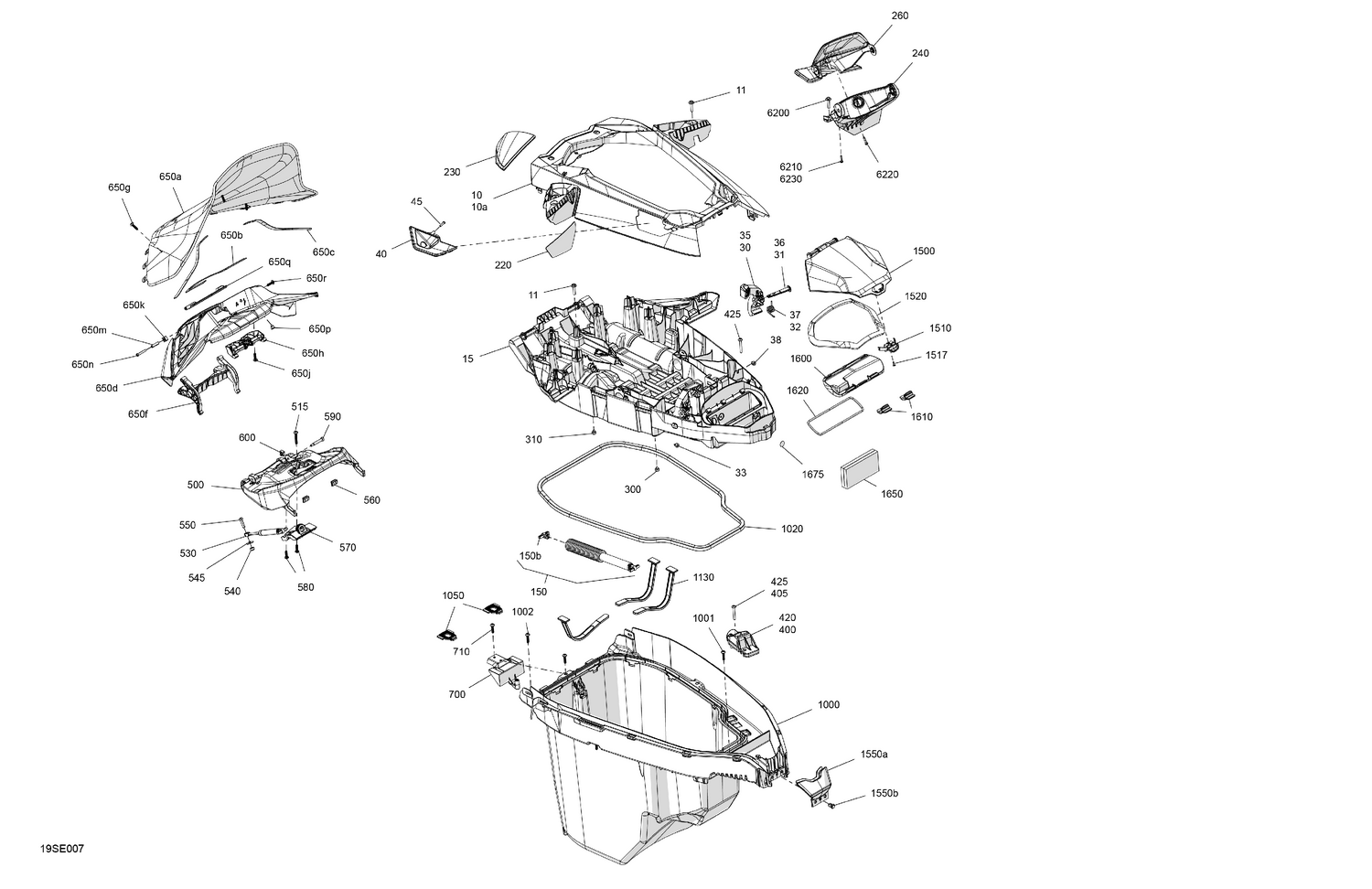

07- Body - Front Cover
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 269502394 | Outer Skin |
| 11 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 15 | 269502555 | Inner Skin |
| 30 | 269502267 | LH Latch |
| 31 | 269502536 | Pin |
| 32 | 269502268 | Latch Spring |
| 33 | 293830005 | Rubber Bumper |
| 35 | 269502299 | RH Latch |
| 36 | 269502536 | Pin |
| 37 | 269502268 | Latch Spring |
| 38 | 293830005 | Rubber Bumper |
| 40 | 277002322 | DESS Key Support |
| 45 | 250001196 | Plastite Torx Screw #10 X 7/8" |
| 150b | 269501984 | Shock Absorber End Fitting |
| 220 | 269502274 | LH Mirror Glass |
| 230 | 269502427 | Deep Black, LH Mirror Cover |
| 240 | 269502551 | Echo Sounder Support |
| 260 | 269502375 | Deep Black, Echosounder Deflector |
| 300 | 293830005 | Rubber Bumper |
| 310 | 293830005 | Rubber Bumper |
| 400 | 269502385 | LH Latch Base |
| 405 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 420 | 269502386 | RH Latch Base |
| 425 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 500 | 269502450 | Upper Windshield Trim |
| 515 | 250001144 | Plastite Torx Screw Cone HD. M6.81X |
| 530 | 269502505 | Shock Absorber HPG |
| 540 | 232581200 | Hex. Elastic Nut M8 Brass |
| 545 | 234082600 | Flat Washer 8 mm, Stainless |
| 550 | 250001225 | Torx Screw M8 X 30 |
| 560 | 269801254 | Rubber Stopper |
| 570 | 269801253 | Molded Guide |
| 580 | 250000466 | Torx Screw Plastite M6 |
| 590 | 250001230 | Socket Head Screw M6 X 50 |
| 600 | 269502544 | Nut Housing M6 |
| 650a | 269801275 | Windshield Ass'y |
| 650b | 269502526 | Joint |
| 650c | 269502529 | Joint |
| 650d | 269801090 | Windshield Support |
| 650f | 269801117 | Central Pivot Arm |
| 650g | 250001231 | Plastite Torx Screw M6.81X25 |
| 650h | 269801251 | Windshield Latch |
| 650j | 250001231 | Plastite Torx Screw M6.81X25 |
| 650k | 269502544 | Nut Housing M6 |
| 650m | 269801250 | Socket |
| 650n | 205464060 | Socket Screw M6 X 40 |
| 650p | 293830005 | Rubber Bumper |
| 650q | 269801309 | Air Deflector |
| 650r | 250001231 | Plastite Torx Screw M6.81X25 |
| 700 | 269502282 | Shock Base |
| 710 | 250000879 | Plastite Torx Screw M6.81X30 |
| 1000 | 264000144 | Bin Compartment |
| 1001 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 1002 | 250000879 | Plastite Torx Screw M6.81X30 |
| 1020 | 293250478 | Gasket |
| 1050 | 269502325 | Adjustment Hook |
| 1130 | 269502493 | Strap |
| 1500 | 264000132 | Glove Box Door |
| 1510 | 264000133 | Glove Box Latch |
| 1517 | 250001119 | Screw K40 X 10 |
| 1520 | 293250717 | Cover Gasket This part replaces 293250403. |
| 1550a | 269502538 | Glove Box Trim |
| 1550b | 293150230 | Tuflok Plastic Rivet |
| 1600 | 264000158 | Box Cover |
| 1610 | 269501718 | Clip |
| 1620 | 293250591 | Gasket |
| 1650 | 264000135 | Sealed Compartment Foam |
| 1675 | 264000137 | Vent Membrane |
| 6200 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 6210 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 6220 | 211000023 | Hex. Screw 10-14 X 7/8” |
