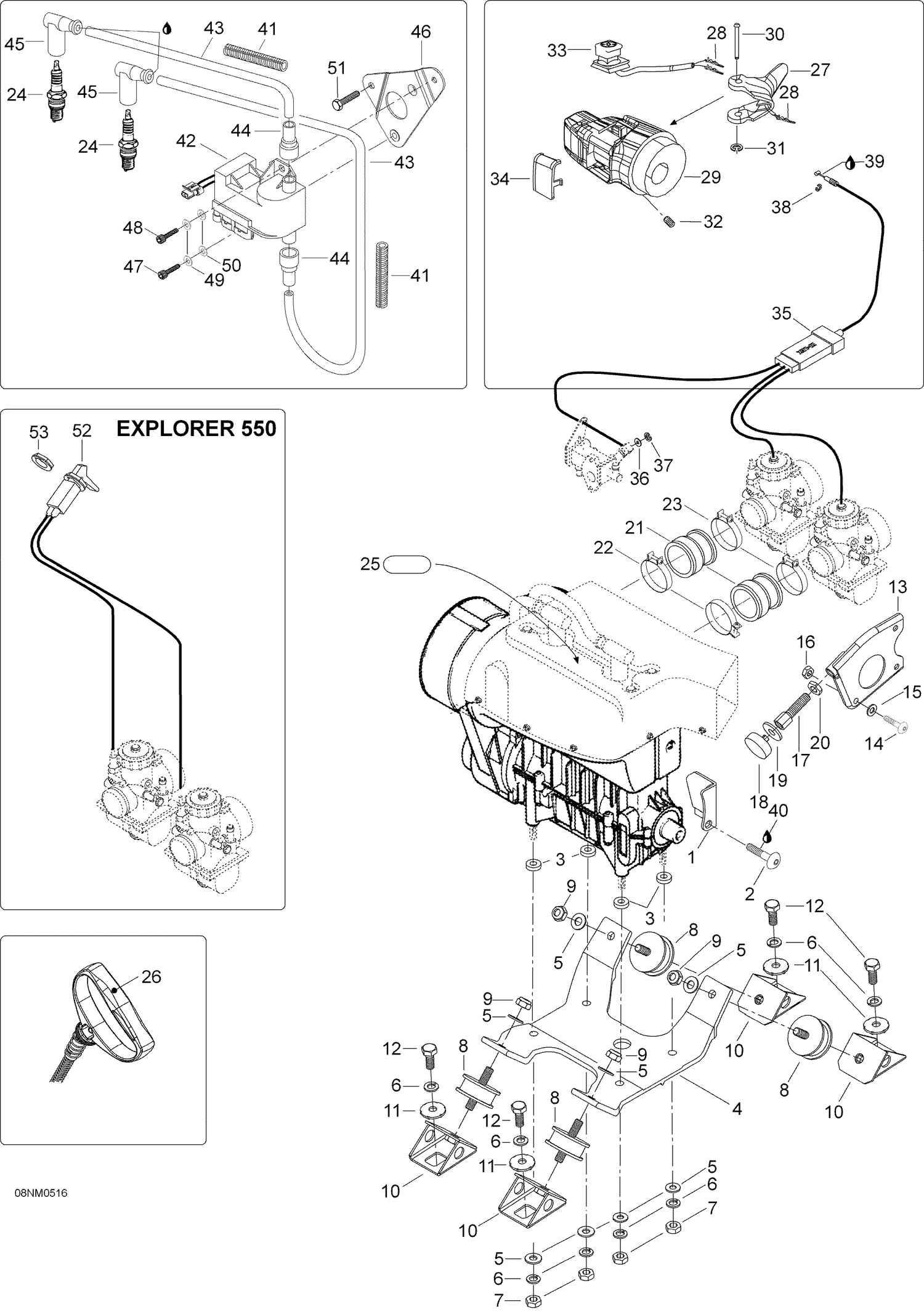

01- Engine And Engine Support, 400, 400E

Parts (45)

Ref	Part Number	Description
4	512059397	Engine Support
5	20005	WASHER M10 - Call your local BRP dealership
6	20113	Spring washer M10
7	232006414	Hex. Nut M10 This part replaces 33004.
9	33082	Elastic stop nut M10
10	512050900	Engine Support
11	512056700	Lock Washer
12	40040	Hex. screw M10 x 25
13	512059446	Welded Plate
14	40344	Socket head screw M8 x 25
15	234081410	Flat Washer 8 mm This part replaces 20004.
16	232581414	Hex. Elastic Stop Nut M8 This part replaces 33011.
17	512058800	STOPPER SCREW - Call your local BRP dealership
18	512059056	Stopper
19	5147306	Washer
20	33218	Jam nut M12
23	512059834	Gemi Clamp
24	219703120	Spark Plug NGK BR9ES This part replaces 414961100.
25	516000986	Spark Plug Decal
26	572084400	Starter Grip
27	512059624	Handle Ass’Y
28	605642628	CONNECTOR - Call your local BRP dealership This part replaces 42603.
29	572100900	Throttle Handle Housing
30	414438700	Lever Pin
31	414439000	Circlip
32	414440800	Socket Set Screw M8 X 10
33	515175410	Kill Switch
34	572100901	Switch Cover
35	512059625	THROTTLE CABLE - Call your local BRP dealership
36	234081100	Flat Washer 8 mm This part replaces 414753300.
37	414753500	Circlip This part replaces 31035.
38	31038	Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership
39	293550004	Dielectric Grease, 150 G
40	293800005	Loctite 271, 10 ml
41	28012	Tubing
43	278002198	SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
44	515174900	PROTECTION CAP - Call your local BRP dealership
45	278000237	SPARK PLUG CAP - Call your local BRP dealership
46	512059494	Module Support Ass’Y
47	40364	Socket head screw M6 x 16
48	40052	Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
49	20052	Lock washer A6
50	20003	Washer A6,4
51	209561640	Hex Screw M6 X 16
52	512059441	CHOKE CABLE - Call your local BRP dealership
