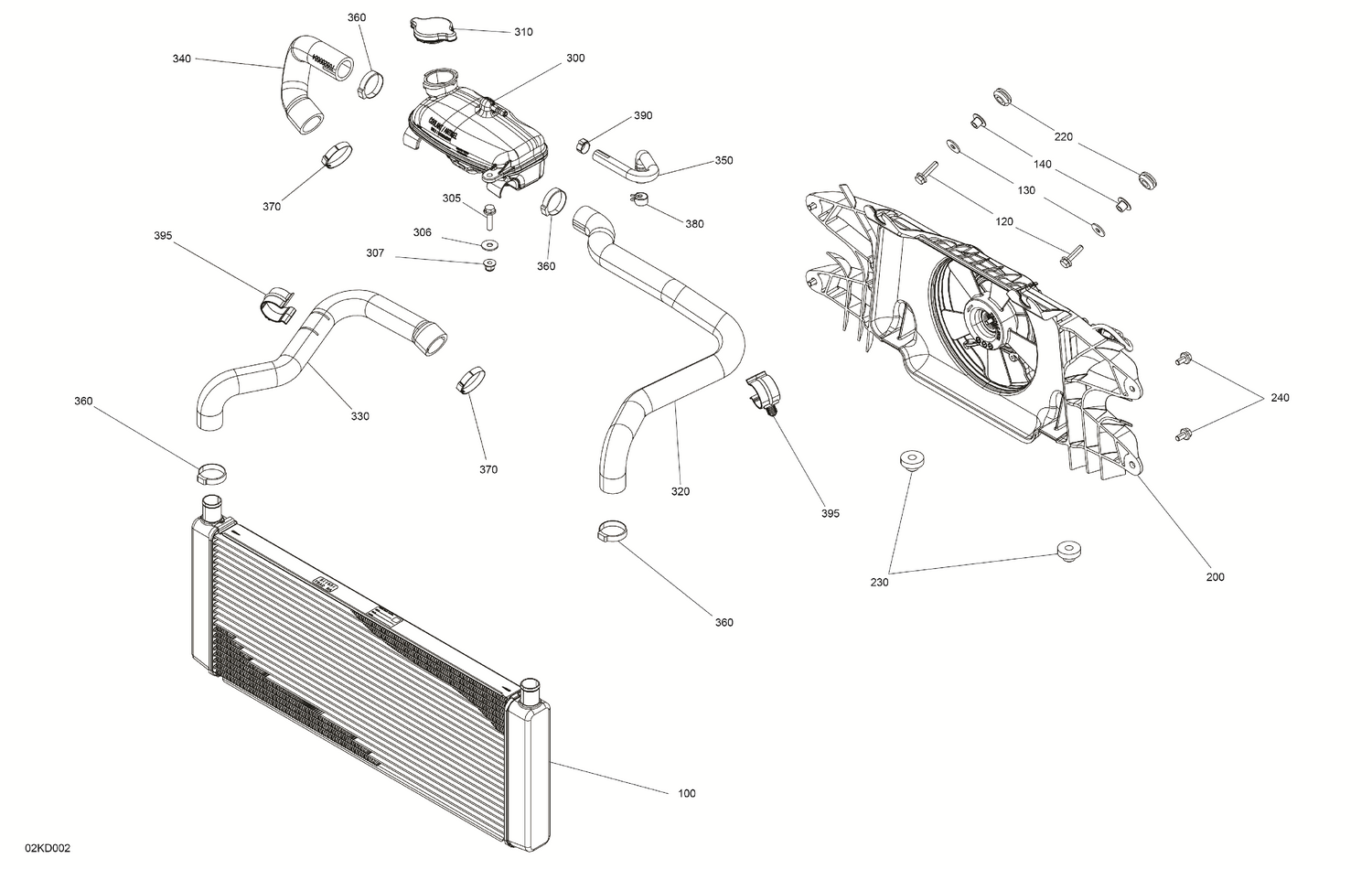

02- Engine - Cooling
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 709200724 | Radiator |
| 120 | 207662534 | Hex. Flange Screw M6 X 25 |
| 130 | 250200082 | Flat Washer |
| 140 | 709001288 | Bushing |
| 200 | 709200719 | Fan Ass'y With Shroud |
| 220 | 293720130 | Overmolded Grommet |
| 230 | 709200948 | Grommet |
| 240 | 207661244 | Hex. Flange Screw M6 X 12 |
| 300 | 709200963 | Coolant Tank |
| 305 | 207662534 | Hex. Flange Screw M6 X 25 |
| 306 | 250200082 | Flat Washer |
| 307 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 310 | 709200207 | Radiator Pressure Cap |
| 320 | 709200682 | Formed Cooling Hose |
| 330 | 709200685 | Formed Cooling Hose |
| 340 | 709200684 | Formed Cooling Hose |
| 350 | 709200686 | Formed Cooling Hose |
| 360 | 293650141 | Oetiker Clamp |
| 370 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 380 | 513033029 | Universal Spring Clamp |
| 390 | 293650046 | Oetiker Clamp |
