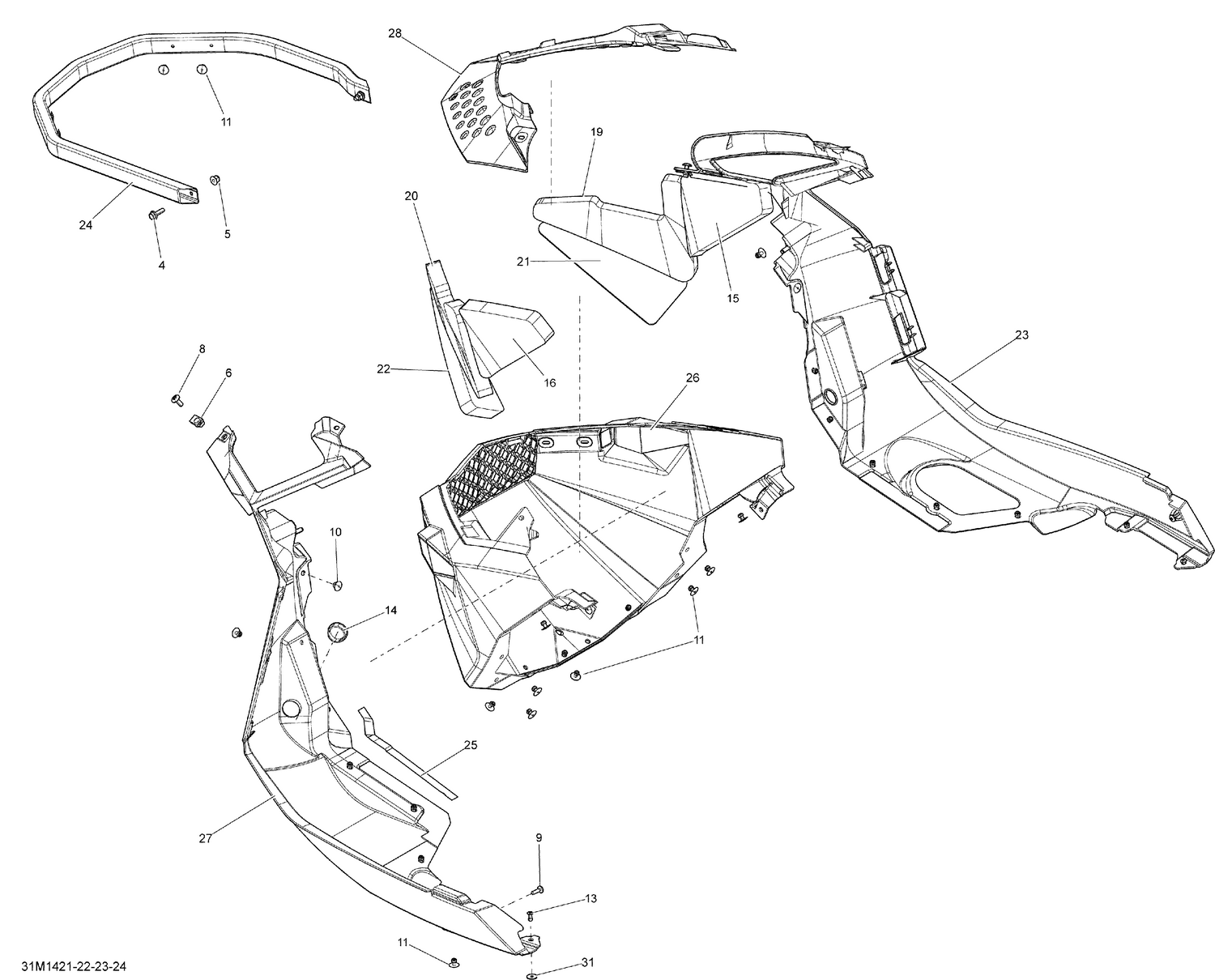

09- Bottom Pan
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 9 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 10 | 293150103 | Pop Rivet 3/16" |
| 11 | 293150104 | Pop Rivet 3/16" |
| 13 | 390402300 | Pop Rivet 3/16" |
| 14 | 414916600 | Black, Nylon Cap |
| 15 | 502007210 | RH Foam Upper |
| 16 | 502007211 | LH Foam Upper |
| 19 | 502007212 | RH Middle Foam |
| 20 | 502007213 | LH Middle Foam |
| 21 | 502007214 | RH Lower Foam |
| 22 | 502007215 | LH Lower Foam |
| 23 | 502006914 | RH Bottom Pan |
| 24 | 502006944 | Front Bumper |
| 25 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 26 | 502006971 | Black, Front Bottom Pan |
| 27 | 502007051 | LH Bottom Pan |
| 28 | 502007068 | Deep Black Bottom Pan Cap |
