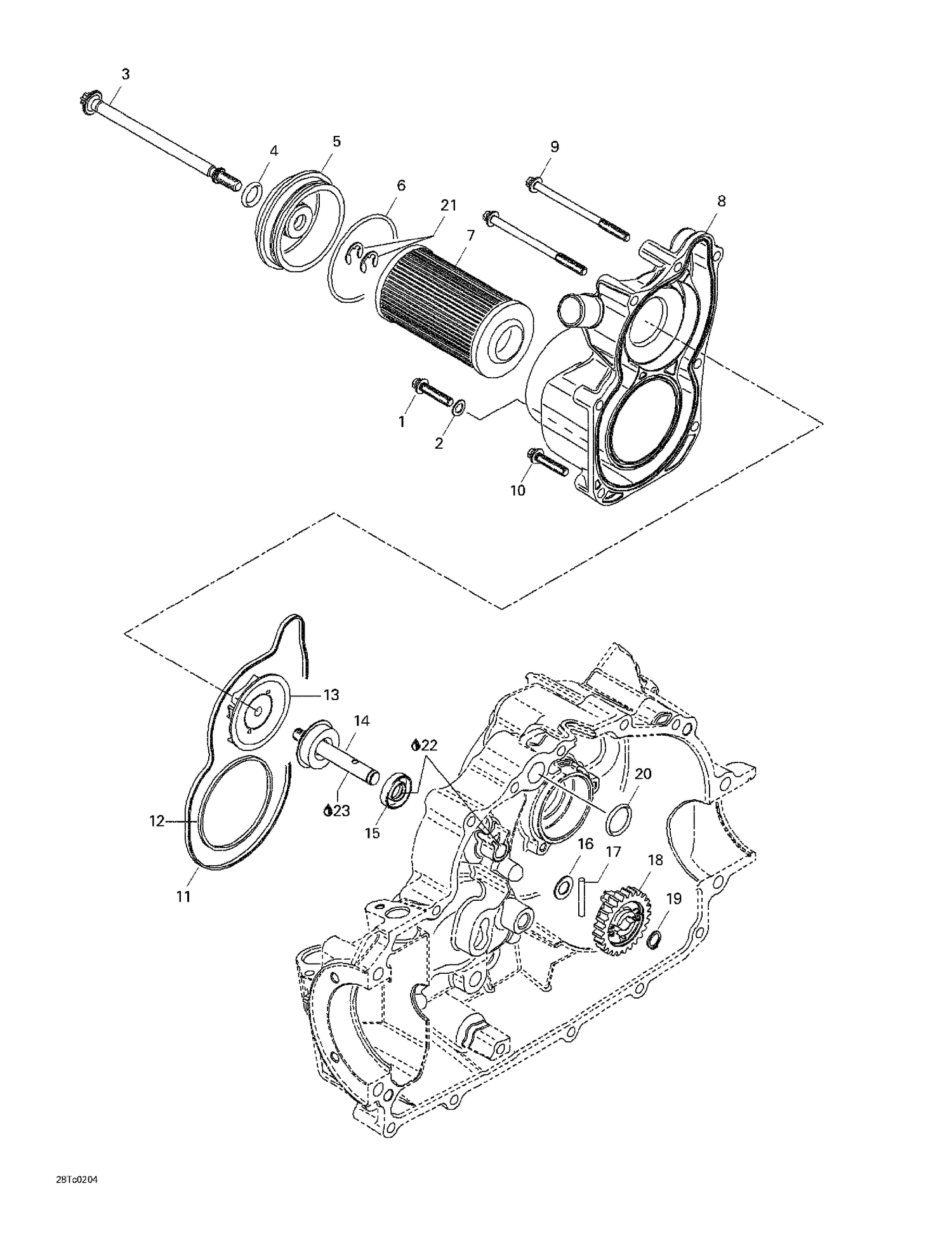

01- Engine Cooling
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420641258 | Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 2 | 404146600 | Sealing Washer |
| 3 | 295501207 | Oil Filter Screw Kit This part replaces 711641100. |
| 4 | 420950860 | O-Ring This part replaces 711950860. |
| 5 | 711610327 | Oil Filter Cover |
| 6 | 420230923 | O-Ring This part replaces 711650500. |
| 7 | 420956741 | Oil Filter This part replaces 711956740. |
| 8 | 711222651 | Water Pump Housing |
| 9 | 420641228 | Torx Flange Screw M6 X 85 This part replaces 711641223. |
| 10 | 420641258 | Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 11 | 711630100 | Gasket |
| 12 | 711630170 | Gasket |
| 13 | 711222540 | Water Impeller |
| 14 | 711220827 | Waterpump Shaft |
| 16 | 420827590 | Thrust Washer This part replaces 711827590. |
| 17 | 420232431 | Needle Pin This part replaces 711232430. |
| 18 | 420635191 | Idle Gear, 25 Teeth This part replaces 711635190. |
| 19 | 420245330 | Snap Ring |
| 21 | 711845240 | Retaining Ring |
| 22 | 413707000 | Dow Corning 111, 150 g |
