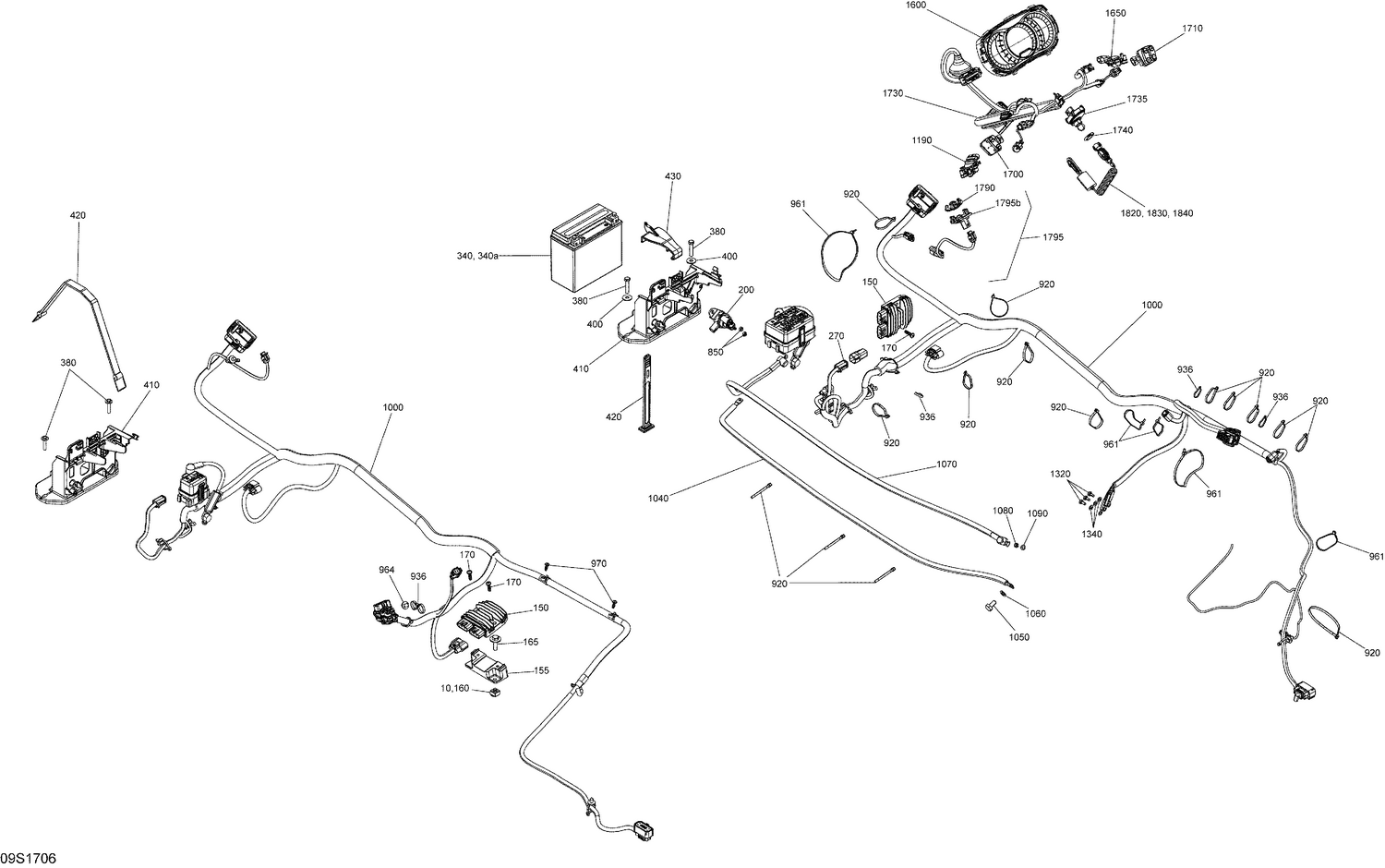

10- Electrical System - All Models
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 232581200 | Hex. Elastic Nut M8 Brass |
| 150 | 710001103 | Voltage Regulator |
| 170 | 250000466 | Torx Screw Plastite M6 |
| 200 | 278003012 | Starter Relay |
| 270 | 278002704 | Diagnostic Connector |
| 340a | 250000282 | Battery Bolt Kit |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 920 | 414115200 | Tie-Rap 180 mm |
| 936 | 293750053 | Tie Rap 300mm |
| 961 | 293750008 | Tie Wrap 368 mm |
| 1050 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 1060 | 234000600 | Flat Washer 10 mm, Stainless |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1735 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1820 | 278003400 | Safety Lanyard Ass'y, RFID |
| 1830 | 278003401 | Safety Lanyard Ass'y, Learning / RFID |
