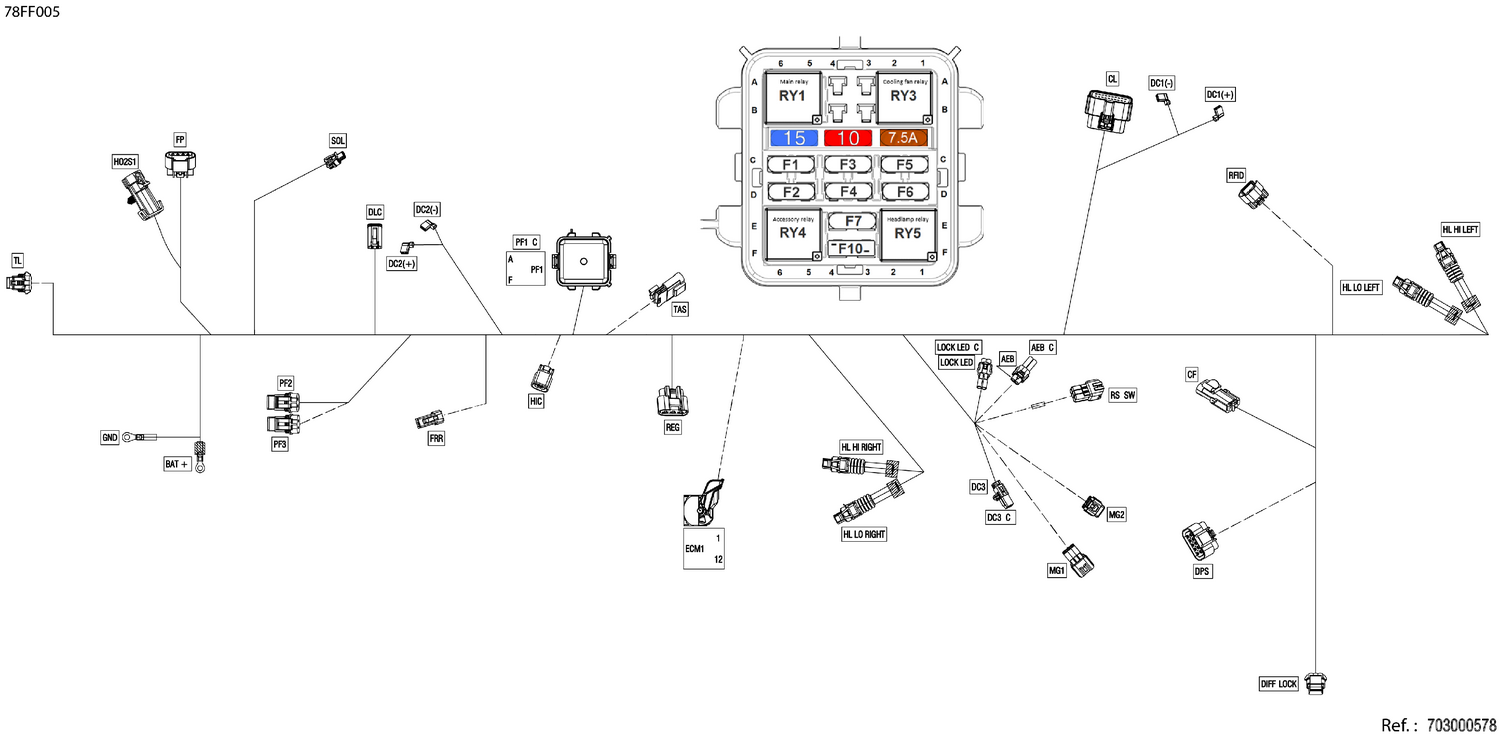

08- Electric - Main Harness - 710010292
Parts (97)
| Ref | Part Number | Description |
|---|---|---|
| AEB | 409012100 | Female Terminal |
| AEB | 710000402 | Wire Seal |
| AEB | 710008152 | Sumitomo Female Connector 2 Cavities |
| CF | 278000217 | Female Housing, 2 Circuits |
| CF | 278000218 | Wire Seal |
| CF | 409004300 | Male Terminal |
| CF | 710001038 | Clip |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| D2 | 409012700 | Diode |
| DC1 | 409010300 | Female Terminal |
| DC2 | 409010300 | Female Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| ECM1 | 515178595 | Housing 56 Circuits |
| ECM1 | 515178596 | Terminal |
| ECM1 | 515178597 | Terminal |
| ECM1 | 515178598 | Terminal |
| ECM1 | 515178599 | Plug |
| ECM1 | 515178601 | Cover |
| ECM1 | 515178603 | Plate |
| ECM1 | 515178604 | Plate |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 278002186 | Wire Seal |
| FP | 278002187 | Female Terminal |
| FP | 710001222 | Lock |
| FP | 710001873 | Terminal This part replaces 710001765. |
| FP | 710003153 | Seal |
| FRR | 515175231 | Female Terminal |
| FRR | 515175658 | Female Housing, 2 Circuits |
| GND | 278001392 | Open Barrel Terminal |
| HIC | 515177205 | Housing |
| HIC | 710001228 | Terminal |
| HIC | 710001332 | Seal Wire |
| HL | HI | LEFT 710007660 Housing 710007660 |
| HL | LO | LEFT 515177192 Female Housing, 2 Circuits 515177192 |
| HO2S1 | 278001482 | Seal |
| HO2S1 | 515178661 | Lock |
| HO2S1 | 710000736 | Terminal |
| HO2S1 | 710002466 | Housing |
| HO2S1 | 710002597 | Gold Terminal |
| LOCK | LED | C 710000080 Cap 710000080 |
| MG1 | 409011300 | Male Terminal |
| MG1 | 710000402 | Wire Seal |
| MG1 | 710007097 | Connector |
| MG2 | 409012100 | Female Terminal |
| MG2 | 409012300 | Seal |
| MG2 | 710000080 | Cap |
| MG2 | 710000402 | Wire Seal |
| MG2 | 710007098 | Connector |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 710000918 | Female Terminal |
| PF2 | 278001325 | Fuse Holder |
| PF2 | 710000357 | Female Terminal |
| PF2 | 710001613 | Fuse |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| PF3 | 710000357 | Female Terminal |
| PF3 | 710001613 | Fuse |
| R3 | 710007300 | Resistor |
| REG | 710000879 | Female Housing, 3 Circuits |
| REG | 710000882 | Cap |
| REG | 710001932 | Seal |
| REG | 710001934 | Terminal |
| RFID | 710001163 | Wire Seal |
| RFID | 710001164 | Female Terminal |
| RFID | 710007151 | Female Delphi Connector 5 Cavities |
| RFID | 710007243 | Lock |
| SOL | 515177192 | Female Housing, 2 Circuits |
| SOL | 710000925 | Terminal |
| SOL | 710001152 | Lock |
| SOL | 710001153 | Seal Wire |
| TAS | 409210100 | Clip Bracket Connector (edge) |
| TAS | 710001224 | Terminal |
| TAS | 710001231 | Housing |
| TAS | 710001233 | Seal |
| TAS | 710005296 | Lock 6 Positions |
| TL | 278001482 | Seal |
| TL | 710000645 | Housing |
| 200 | 710010292 | Main Wiring Harness |
