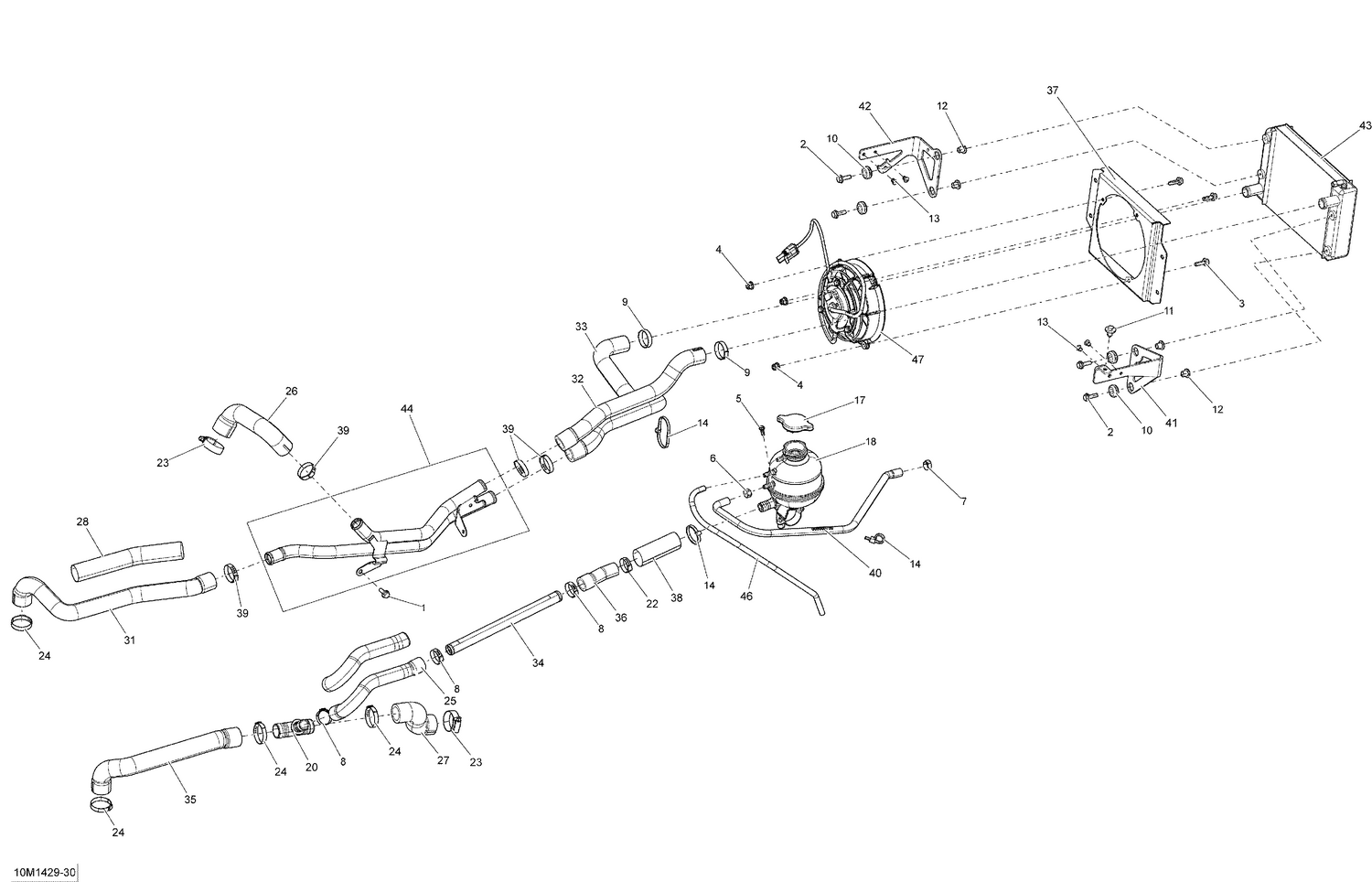

01- Cooling System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 6 | 293650025 | Oetiker Gear Clamp |
| 7 | 293650046 | Oetiker Clamp |
| 8 | 293650099 | Crimp Clamp |
| 9 | 293650165 | Oetiker Gear Clamp |
| 10 | 709000582 | Grommet This part replaces 293720053. |
| 11 | 293730040 | Mount Dart |
| 12 | 293900100 | Bushing |
| 13 | 390909100 | Avex Rivet |
| 14 | 414115200 | Tie-Rap 180 mm |
| 17 | 509000180 | Radiator Pressure Cap |
| 18 | 509000368 | Coolant Tank |
| 20 | 509000372 | T-Fitting |
| 22 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 23 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 24 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 25 | 509000563 | HOSE - Call your local BRP dealership |
| 26 | 509000932 | Engine Outlet Hose This part replaces 509000564. |
| 27 | 509000565 | Engine Inlet Hose |
| 28 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 31 | 509000634 | Hose |
| 32 | 509000636 | RADIATOR HOSE - Call your local BRP dealership |
| 33 | 509000637 | RADIATOR HOSE - Call your local BRP dealership |
| 34 | 509000644 | PIPE - Call your local BRP dealership |
| 35 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 36 | 509000698 | HOSE - Call your local BRP dealership |
| 37 | 509000714 | Fan Support |
| 38 | 707001349 | Protector Tube This part replaces 509000730. |
| 39 | 509000735 | Clamp |
| 40 | 509000750 | BREATHER HOSE - Call your local BRP dealership |
| 41 | 509000754 | RH RADIATOR SUPPORT - Call your local BRP dealership |
| 42 | 509000755 | LH RADIATOR SUPPORT - Call your local BRP dealership |
| 43 | 509000756 | Radiator |
| 44 | 509000800 | Water Pipe |
| 46 | 219704360 | Hose 6 Mm 15000Mm Long |
