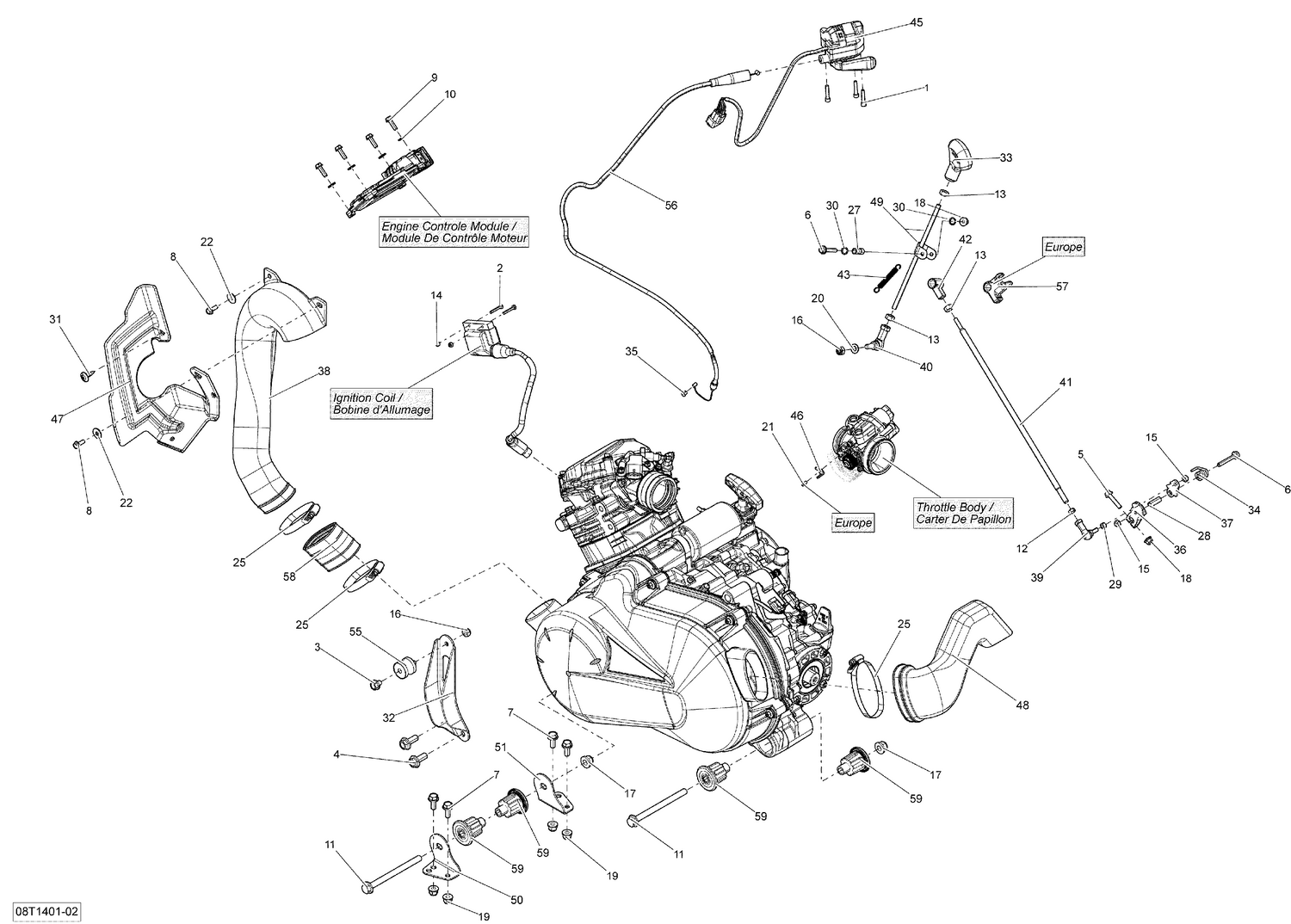

01- Engine
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205052588 | Socket Head Screw M5 X 25 |
| 2 | 207142544 | Hex. Screw M4 X 25 |
| 3 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 4 | 207602544 | Hex. Flange Screw M10 X 25 |
| 5 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 6 | 207664044 | Hex. Flange Screw M6 X 40 |
| 7 | 207682044 | Hex. Flange Screw M8 X 20 |
| 8 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 9 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 10 | 224061121 | Flat Washer |
| 11 | 230602546 | Hex. Flange Screw M10 X 125 |
| 12 | 232066414 | LH HEX. NUT M6 - Call your local BRP dealership |
| 13 | 232081414 | Hex. Nut M8 |
| 14 | 232541414 | Elastic Stop Nut M4 |
| 15 | 232561414 | Elastic Stop Nut M6 |
| 16 | 232581414 | Hex. Elastic Stop Nut M8 |
| 17 | 233201436 | Hex. Flange Elastic Nut M10 |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 234081410 | Flat Washer 8 mm |
| 22 | 250200082 | Flat Washer |
| 25 | 293650091 | Norma Clamp |
| 27 | 293900075 | Bushing |
| 28 | 293900079 | Bushing |
| 29 | 293900104 | Bushing |
| 30 | 414583300 | O-RING - Call your local BRP dealership |
| 31 | 414745900 | Tuflock Phillips Plastic Screw |
| 32 | 707000224 | UPPER ENGINE BRACKET - Call your local BRP dealership |
| 33 | 707000284 | Lever Handle |
| 34 | 707000310 | Spring |
| 35 | 707000434 | Cable Guide |
| 36 | 707000503 | Lever |
| 37 | 707000507 | Pivot Plate |
| 38 | 707000540 | AIR INTAKE - Call your local BRP dealership |
| 39 | 707000545 | LH BALL JOINT - Call your local BRP dealership |
| 40 | 707001959 | RH Ball Joint This part replaces 707000546. |
| 41 | 707000567 | Threaded Rod |
| 43 | 707000569 | Spring |
| 45 | 707000595 | Throttle Handle |
| 46 | 707000573 | Speed Limiter |
| 47 | 707000697 | CVT WATER DEFLECTOR - Call your local BRP dealership |
| 48 | 707000718 | AIR OUTLET - Call your local BRP dealership |
| 49 | 707000786 | Lever Arm |
| 50 | 707000802 | ENGINE BRACKET - Call your local BRP dealership |
| 51 | 707000803 | ENGINE BRACKET - Call your local BRP dealership |
| 55 | 707000949 | Rubber Isolator |
| 56 | 707000974 | THROTTLE CABLE - Call your local BRP dealership |
| 57 | 707000977 | PIVOT - Call your local BRP dealership |
| 58 | 707002585 | Flexibale Adaptor This part replaces 707001043. |
