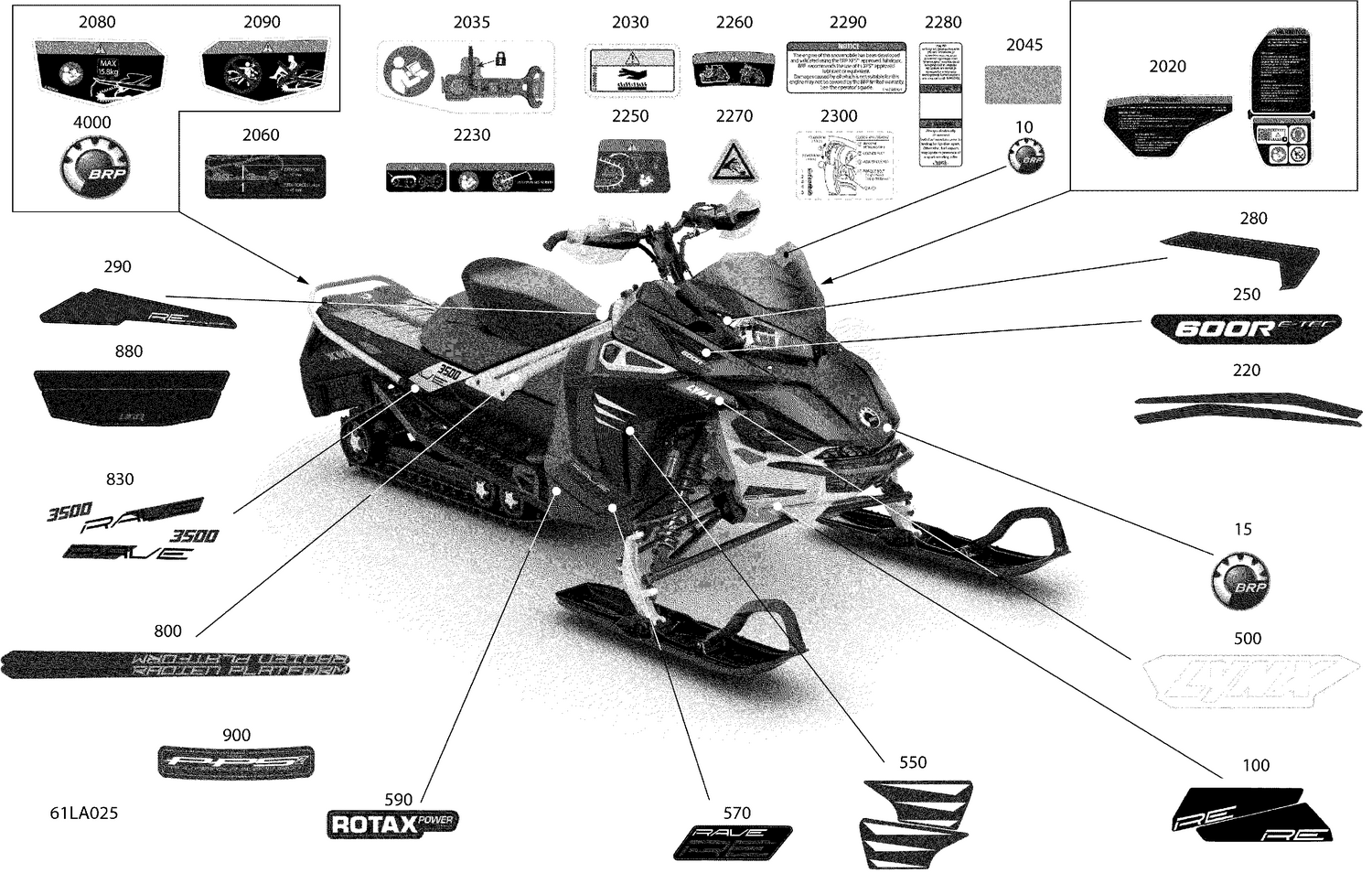

07- Body - Decals
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704904615 | BRP Logo, 13 mm |
| 15 | 516008739 | Logo 68mm "BRP" |
| 100 | 516010356 | LH/RH Front Bottom Pan Decal "RE" |
| 220 | 516010359 | LH/RH Hood Decal |
| 250 | 516009561 | Upper Side Panel Decal "600R E-TEC" |
| 280 | 516009558 | LH/RH Head Lamp Decals |
| 290 | 516009666 | Upper Side Panel Decals "Racing Edition" |
| 500 | 516008468 | Decal Side Air Deflector "LYNX" |
| 550 | 516010369 | LH/RH Side Air Deflector Decal |
| 570 | 516008471 | LH/RH Side Panel Decal "Rave RE" |
| 590 | 516008760 | Decal "Rotax Power" |
| 800 | 516010184 | LH/RH Rear MemberDecal |
| 830 | 516010385 | LH/RH Tunnel Decal "RAVE 3500" |
| 880 | 516010612 | Decal "Linq" |
| 900 | 516006805 | Black, Decal "PPS2" |
| 2020 | 516009921 | Decal - Label En/Fi/Swe |
| 2030 | 516009922 | Warning Decal |
| 2035 | 516009955 | Warning Decal |
| 2045 | 516009954 | Protective Decal |
| 2060 | 516009267 | Decal Track Tension |
| 2080 | 516009924 | Safety Label |
| 2090 | 516009925 | Warning Decal Rotating Track |
| 2230 | 516009933 | Pulley Warning Decal |
| 2250 | 516009986 | Track Warning Decal |
| 2260 | 516009932 | Warning Decal |
| 2270 | 516009935 | Warning Decal, Hot liquid |
| 2280 | 516007661 | Warning Decal, Injectors |
| 2290 | 516009264 | Oil Warning Decal |
| 2300 | 516009540 | Decal Ramp Clicker |
