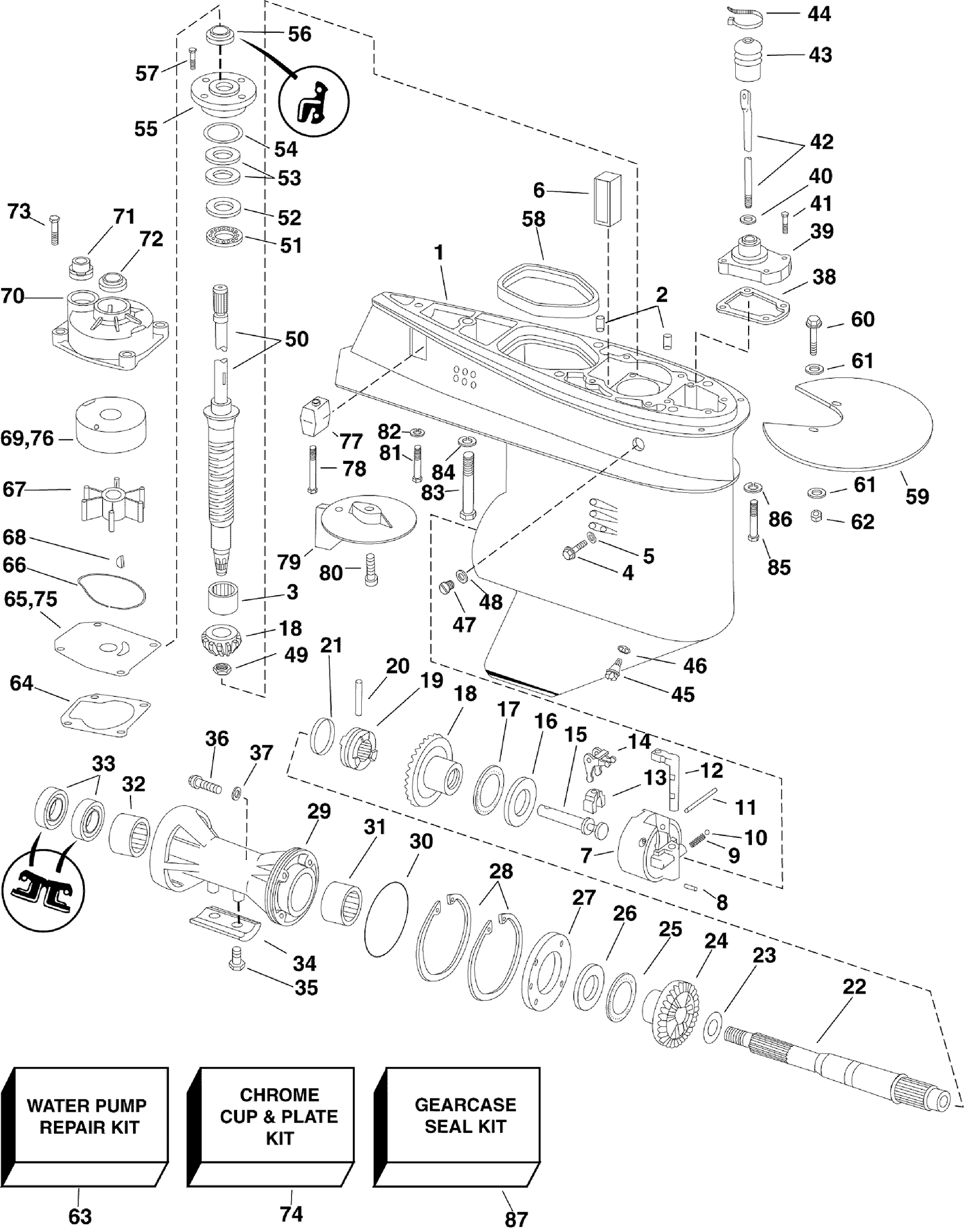

GEARCASE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5006331 | GEARCASE ASSEMBLY - BLACK |
| 44 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 | 0352345 | SPLASH GUARD |
| 60 | 0341011 | SCREW, Adapter to housing, outer |
| 63 | 5006511 | WATER PUMP REPAIR KIT |
| 79 | 0127466 | TRIM TAB |
| 80 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 81 | 0306503 | SCREW, Short |
| 83 | 0313697 | SCR,Grc to hsg.long |
| 84 | 0306314 | L'WASHER,Scr,long |
