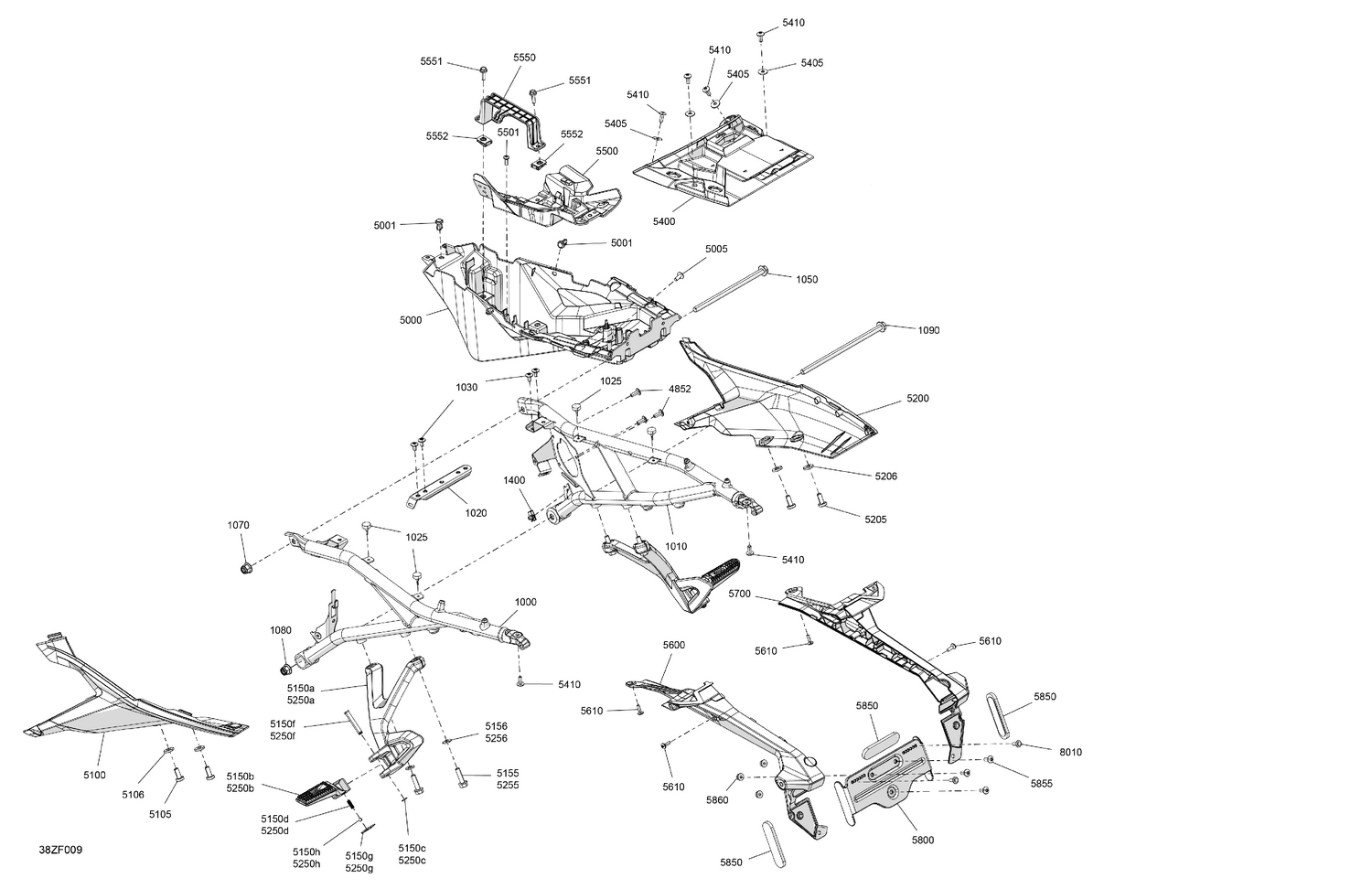

07- Body - Cargo
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 705211708 | LH Rear Chassis Extension |
| 1010 | 705211709 | RH Rear Chassis Extension |
| 1020 | 705211725 | Front Upper Cross Member |
| 1025 | 708003866 | Seat Stopper |
| 1030 | 250000767 | Torx Truss Screw M6 X 12 |
| 1050 | 250001334 | Geoblack, Hex. Flange Screw M10 X 185 |
| 1070 | 250100246 | Hex. Flange Elastic Nut M10 |
| 1080 | 250100246 | Hex. Flange Elastic Nut M10 |
| 1090 | 250001335 | Geoblack, Hex. Flange Screw M10 X 215 |
| 1400 | 250100209 | Spring Nut U M5 X 0.8 |
| 4852 | 250000717 | Torx Head Screw M6 X 16 |
| 5000 | 705017446 | Under Fender Trim |
| 5001 | 293150230 | Tuflok Plastic Rivet |
| 5005 | 250000717 | Torx Head Screw M6 X 16 |
| 5100 | 705019079 | Deep Black, LH Rear Fairing |
| 5105 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 5106 | 250200208 | Flat Washer M8 |
| 5150a | 708003946 | LH Footrest Support |
| 5150b | 705700094 | LH Footrest |
| 5150c | 705601030 | Circlip |
| 5150d | 705001704 | Spring |
| 5150f | 705019399 | Retaining Pin |
| 5150g | 705018933 | Plate Index |
| 5150h | 705001705 | Ball |
| 5155 | 250001374 | Hex Flange Screw Threadlock M8 X30 |
| 5156 | 503192494 | Washer |
| 5200 | 705019080 | Deep Black, RH Rear Fairing |
| 5205 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 5206 | 250200208 | Flat Washer M8 |
| 5250a | 708003947 | RH Footrest Support |
| 5250b | 705700095 | RH Footrest |
| 5250c | 705601030 | Circlip |
| 5250d | 705001704 | Spring |
| 5250f | 705019399 | Retaining Pin |
| 5250g | 705018933 | Plate Index |
| 5250h | 705001705 | Ball |
| 5255 | 250001374 | Hex Flange Screw Threadlock M8 X30 |
| 5256 | 503192494 | Washer |
| 5400 | 705017900 | Accessory Support |
| 5405 | 234062670 | Stainless Steel Flat Washer |
| 5410 | 250000717 | Torx Head Screw M6 X 16 |
| 5500 | 705020009 | Battery Support |
| 5501 | 250000720 | Torx Screw K50 X 16 |
| 5550 | 705018485 | Battery Lock |
| 5551 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5552 | 250100198 | Panel Nut M6 X 1.0 |
| 5600 | 705213676 | LH Rear Fender |
| 5610 | 250000720 | Torx Screw K50 X 16 |
| 5700 | 705211853 | RH Rear Fender |
| 5800 | 705209835 | License Plate Support |
| 5850 | 705015551 | Red, Reflector |
| 5855 | 250000717 | Torx Head Screw M6 X 16 |
| 5860 | 233161464 | Hex. Elastic Flange Nut M6 |
