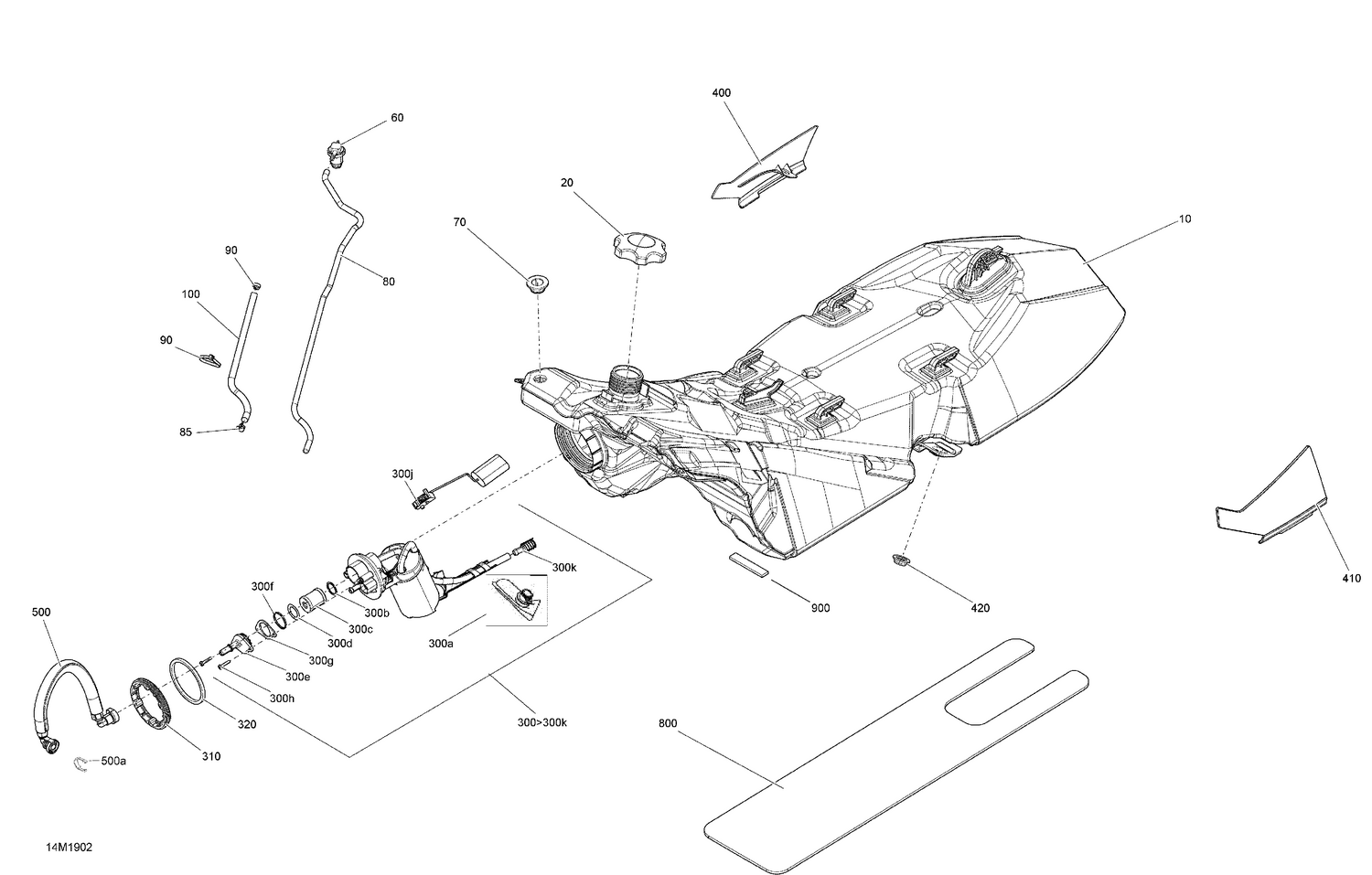

02- Fuel
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513033667 | Fuel Tank |
| 20 | 513033969 | Fuel Tank Cap This part replaces 513033720. |
| 60 | 513033842 | Check Valve |
| 70 | 513033596 | Grommet |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 90 | 414115200 | Tie-Rap 180 mm |
| 95 | 414227300 | Clip |
| 100 | 504153074 | Tube Protector |
| 105 | 414115200 | Tie-Rap 180 mm |
| 300a | 415129451 | Fuel Filter |
| 300b | 415129511 | O-Ring |
| 300d | 415129512 | Wave Washer |
| 300e | 415129685 | Cover |
| 300f | 415129509 | O-Ring |
| 300g | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 300h | 415129513 | Screw |
| 300j | 415130108 | Fuel Level Sensor |
| 300k | 414872100 | Fuel Filter Strainer |
| 310 | 513033180 | Ring |
| 320 | 513033334 | Gasket |
| 330c | 415129510 | Fuel Filter |
| 400 | 513033418 | RH Cap |
| 410 | 513033419 | LH Cap |
| 420 | 513033326 | Shoulder Bushing |
| 500a | 513033135 | Locking Clip |
| 800 | 513033588 | Insulating Foam |
