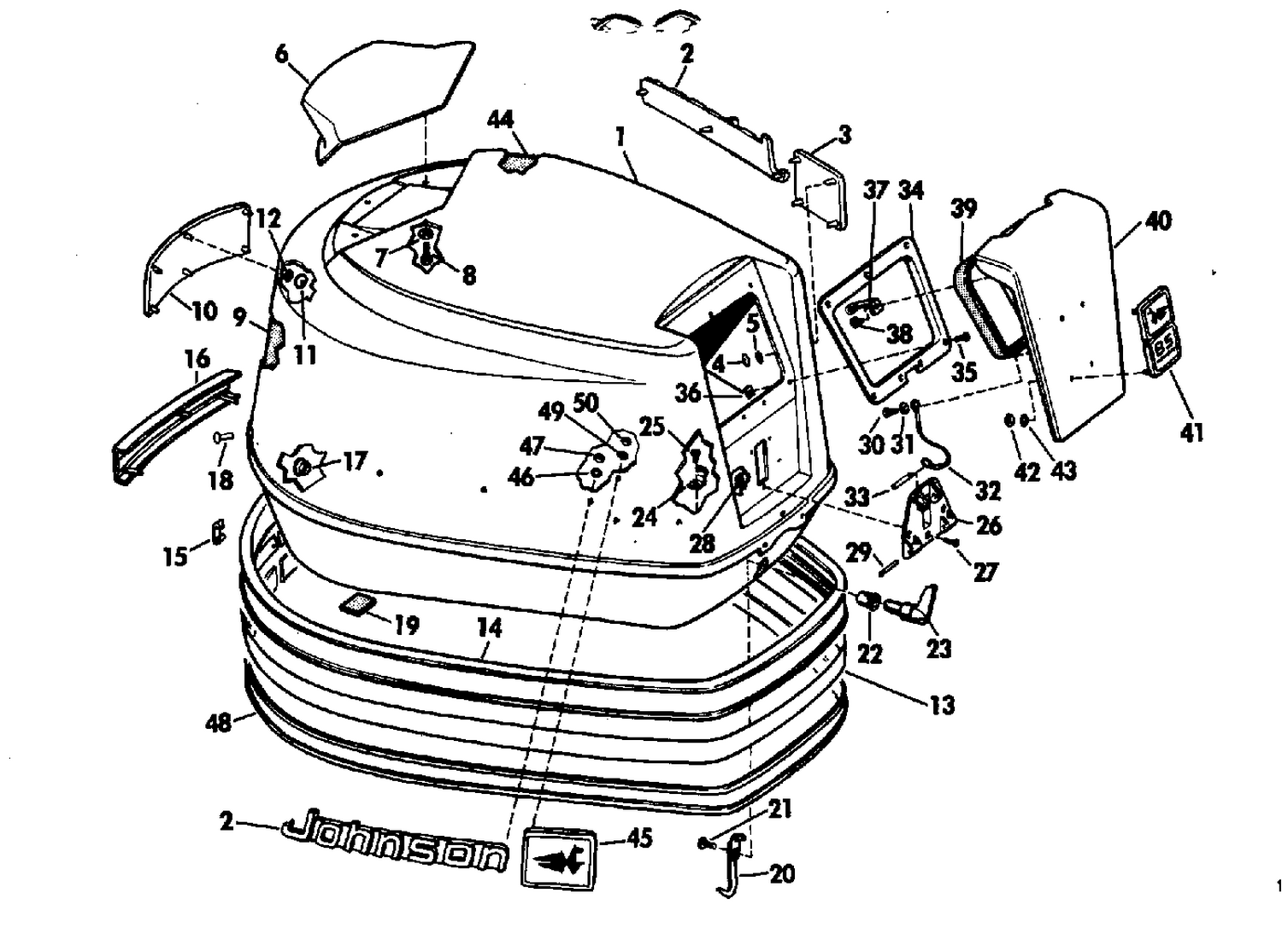

| Ref | Part Number | Description |
|---|
| 1 |
0382615 |
MOTOR COVER ASSY. |
| 2 |
0313883 |
APPLIQUE JOHNSON |
| 3 |
0383024 |
APPLIQUE & PLATE, Seahorse port |
| 5 |
0314303 |
O RING |
| 6 |
0307679 |
HANDLE, Tilt |
| 7 |
0306407 |
LOCCKWASHER,Cover latch |
| 9 |
0307956 |
SOUND BLANKET,Side |
| 10 |
0383076 |
APPLIQUE & PLATE,Rear |
| 12 |
0314303 |
O RING |
| 13 |
0312575 |
INSERT, Molding strip |
| 14 |
0310224 |
STRIP, Molding |
| 15 |
0310227 |
CLIP, Banding |
| 16 |
0312576 |
COVER, Molding strip |
| 17 |
0204307 |
FASTENER |
| 18 |
0307827 |
RIVET |
| 19 |
0307925 |
PAD |
| 20 |
0378322 |
LINK & HOOK |
| 21 |
0303311 |
SCR,Clamp,eng cable |
| 22 |
0553769 |
BUSHING |
| 23 |
0308293 |
HANDLE, Front latch |
| 24 |
0307908 |
SPRING |
| 25 |
0307907 |
SCREW |
| 26 |
0379122 |
HINGE PLATE & FASTENER ASSY. |
| 29 |
0306106 |
HINGE PIN |
| 30 |
0307426 |
SCREW |
| 31 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 32 |
0379123 |
STRAP |
| 33 |
0309558 |
PIN, Strap to plate |
| 34 |
0379119 |
FRAME & FASTENER ASSY. |
| 37 |
0383028 |
LATCH, Roller |
| 39 |
0307820 |
SEAL, Front door |
| 40 |
0383077 |
FRONT DOOR & APPLIQUE ASSY. |
| 41 |
0383079 |
APPLIQUE & FASTENER ASSY. |
| 43 |
0314303 |
O RING |
| 44 |
0307957 |
SOUND BLANKET, Top |
| 45 |
0383025 |
APPLIQUE & PLATE, Seahorse-stdb |
| 46 |
0314303 |
O RING |
| 48 |
0310226 |
TRIM, Banding |
| 50 |
0314303 |
O RING |
| 0382857 |
0382857 |
DECAL SET |
