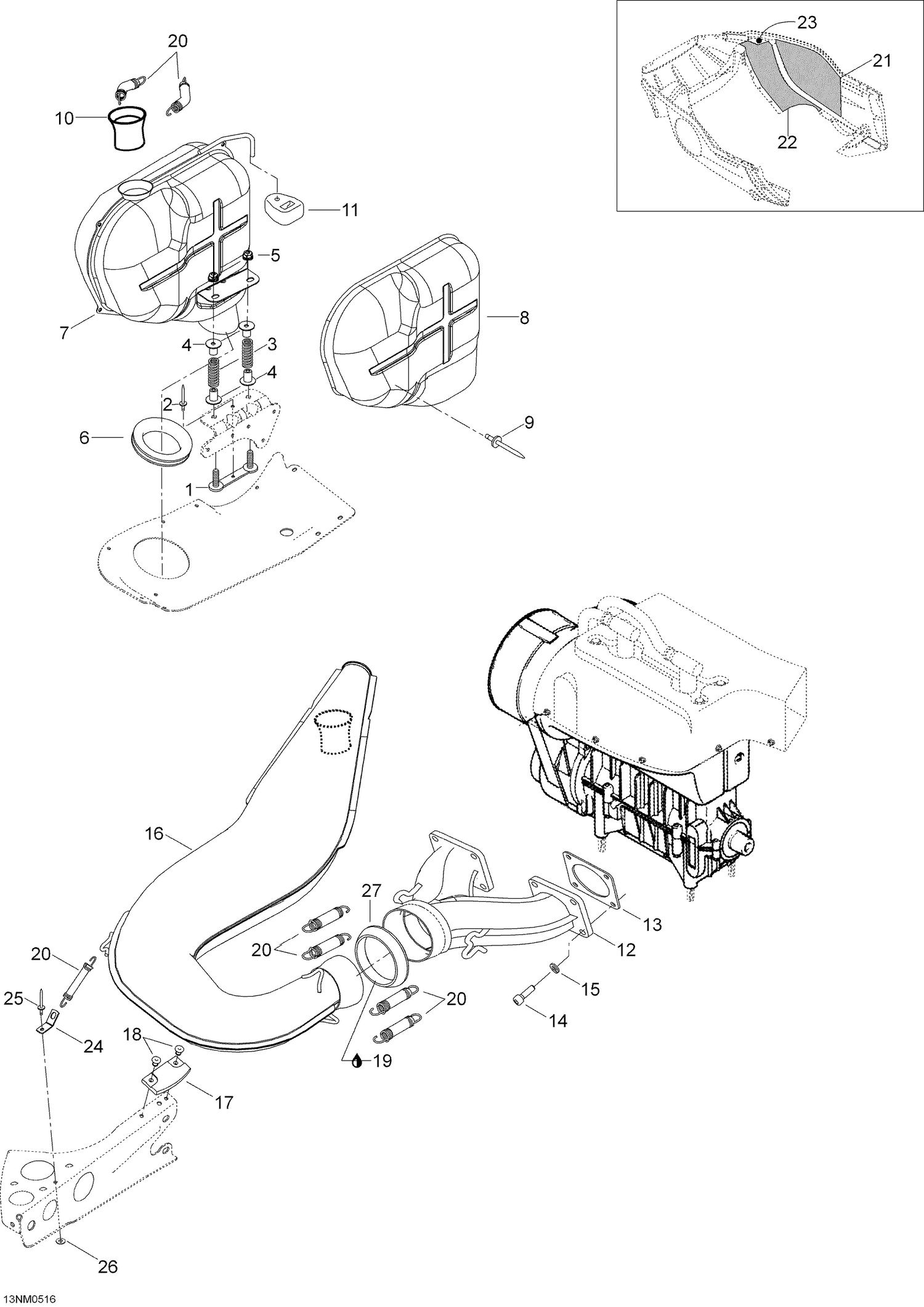

| Ref | Part Number | Description |
|---|
| 2 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 3 |
414913700 |
SPRING - Call your local BRP dealership |
| 4 |
514053343 |
GUIDE - Call your local BRP dealership |
| 5 |
33029 |
Elastic stop nut M8 |
| 6 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 8 |
514053389 |
Heat Shield |
| 9 |
390910000 |
Pop Rivet 3/16” |
| 11 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 14 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 15 |
20014 |
Lock washer A8 |
| 17 |
570044100 |
Rubber Pad |
| 18 |
36037 |
Rivet |
| 19 |
293800090 |
Sealant, Loctite, 80 ml |
| 20 |
415107100 |
Spring |
| 21 |
514053363 |
Reflective Sheet |
| 22 |
514052718 |
Reflective Sheet |
| 23 |
514053390 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 24 |
5447086 |
Spring bracket |
| 25 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 26 |
20008 |
Washer 5,3 mm |
