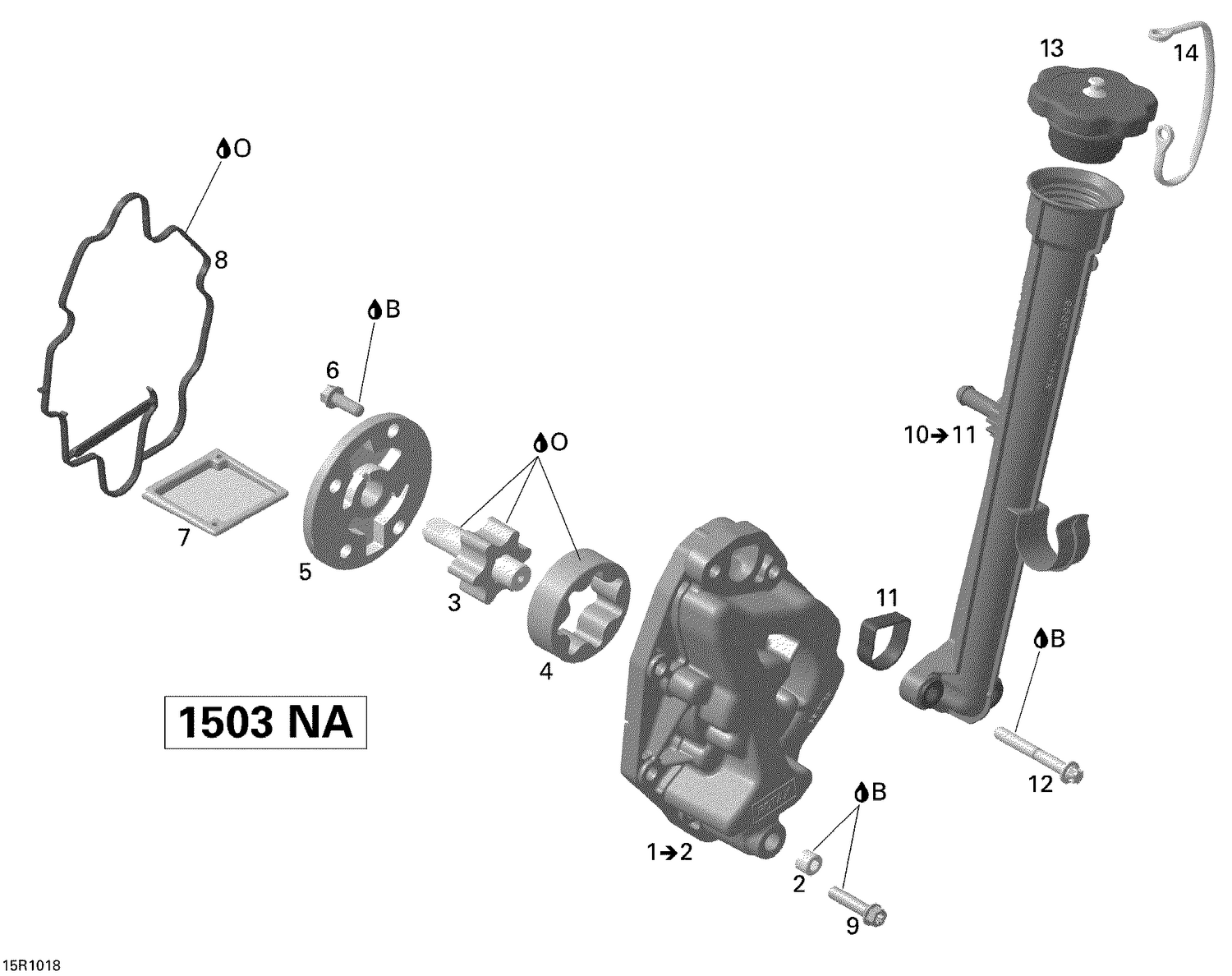

02- Oil Separator
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 2 | 420641323 | Plug Screw M10 X 1 |
| 3 | 420837543 | Oil Pump Shaft |
| 4 | 420956675 | Oil Pump Rotor 16 mm |
| 5 | 420811851 | Oil Pump Cover This part replaces 420811850. |
| 6 | 420641048 | Torx Flange Screw M6 X 16 |
| 7 | 420856520 | Oil Sieve |
| 8 | 420631486 | Oil Suction Pump Gasket |
| 9 | 420641238 | Torx Flange Screw M6 X 25 |
| 11 | 420430240 | Gasket |
| 12 | 420641198 | Torx Flange Screw M6 X 45 |
| 13 | 420956923 | Plug Cover, Yellow |
| 14 | 420660620 | Retaining Band |
