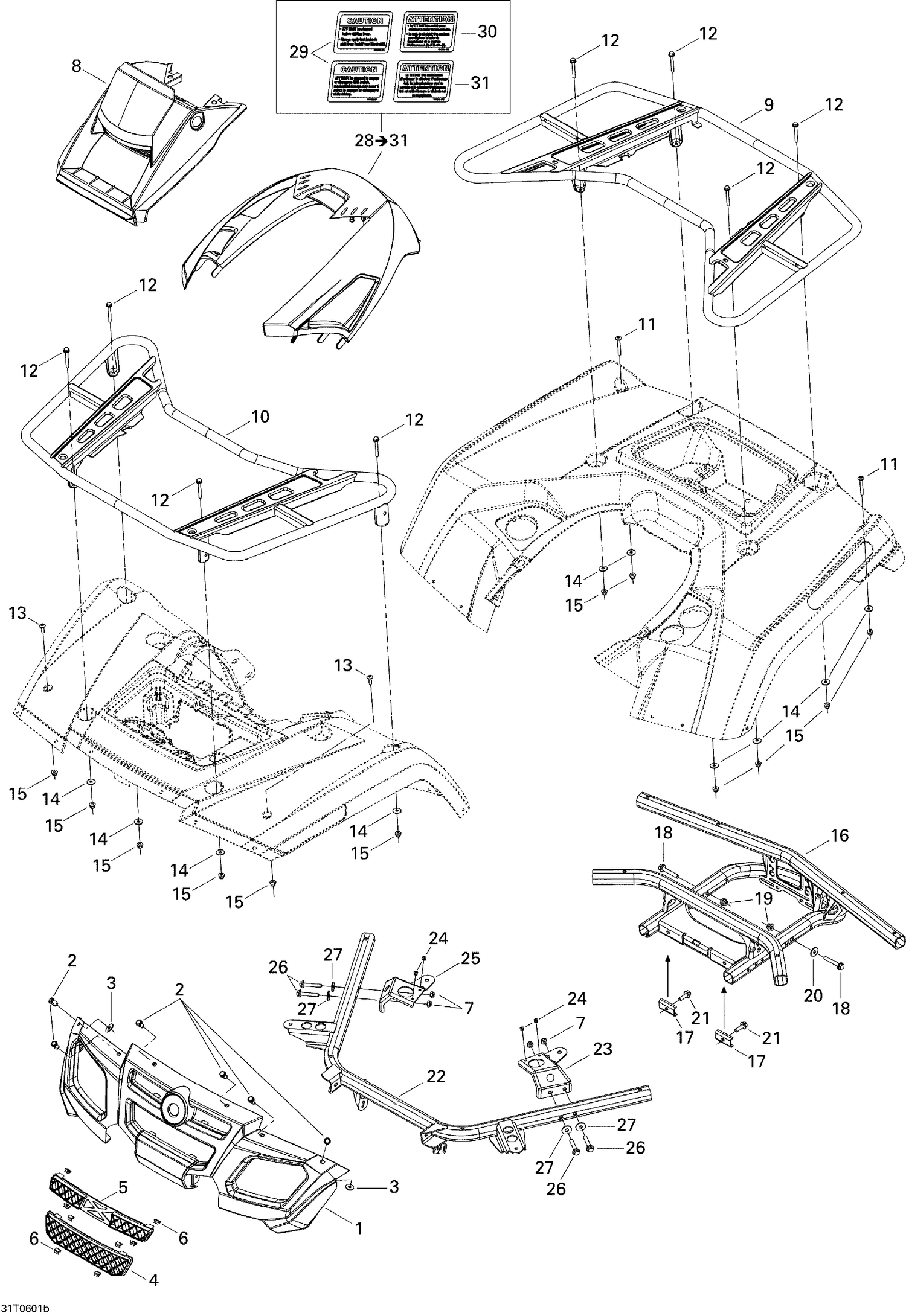

| Ref | Part Number | Description |
|---|
| 2 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3 |
234082410 |
Flat Washer 8 mm |
| 4 |
705001679 |
LOWER GRILL - Call your local BRP dealership |
| 5 |
705001901 |
UPPER GRILL - Call your local BRP dealership |
| 6 |
517306751 |
Clip This part replaces 517302674. |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
705003490 |
Dashboard This part replaces 705001314. |
| 9 |
705002617 |
Rear Luggage Rack This part replaces 705001780. |
| 10 |
705002616 |
Front Luggage Rack This part replaces 705001769. |
| 11 |
250000749 |
Torx Truss Screw M6 X 50 This part replaces 250000239. |
| 12 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 13 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 14 |
224061201 |
Flat Washer |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
705003656 |
Rear Support This part replaces 705001459. |
| 17 |
705003647 |
U Reinforcement This part replaces 705001180. |
| 18 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
234082410 |
Flat Washer 8 mm |
| 21 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 22 |
705003655 |
FRONT SUPPORT - Call your local BRP dealership This part replaces 705001455. |
| 23 |
705000692 |
LH ANCHOR PLATE - Call your local BRP dealership |
| 24 |
390402300 |
Pop Rivet 3/16" |
| 25 |
705002997 |
RH Anchor Plate This part replaces 705000693. |
| 26 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 27 |
234082410 |
Flat Washer 8 mm |
