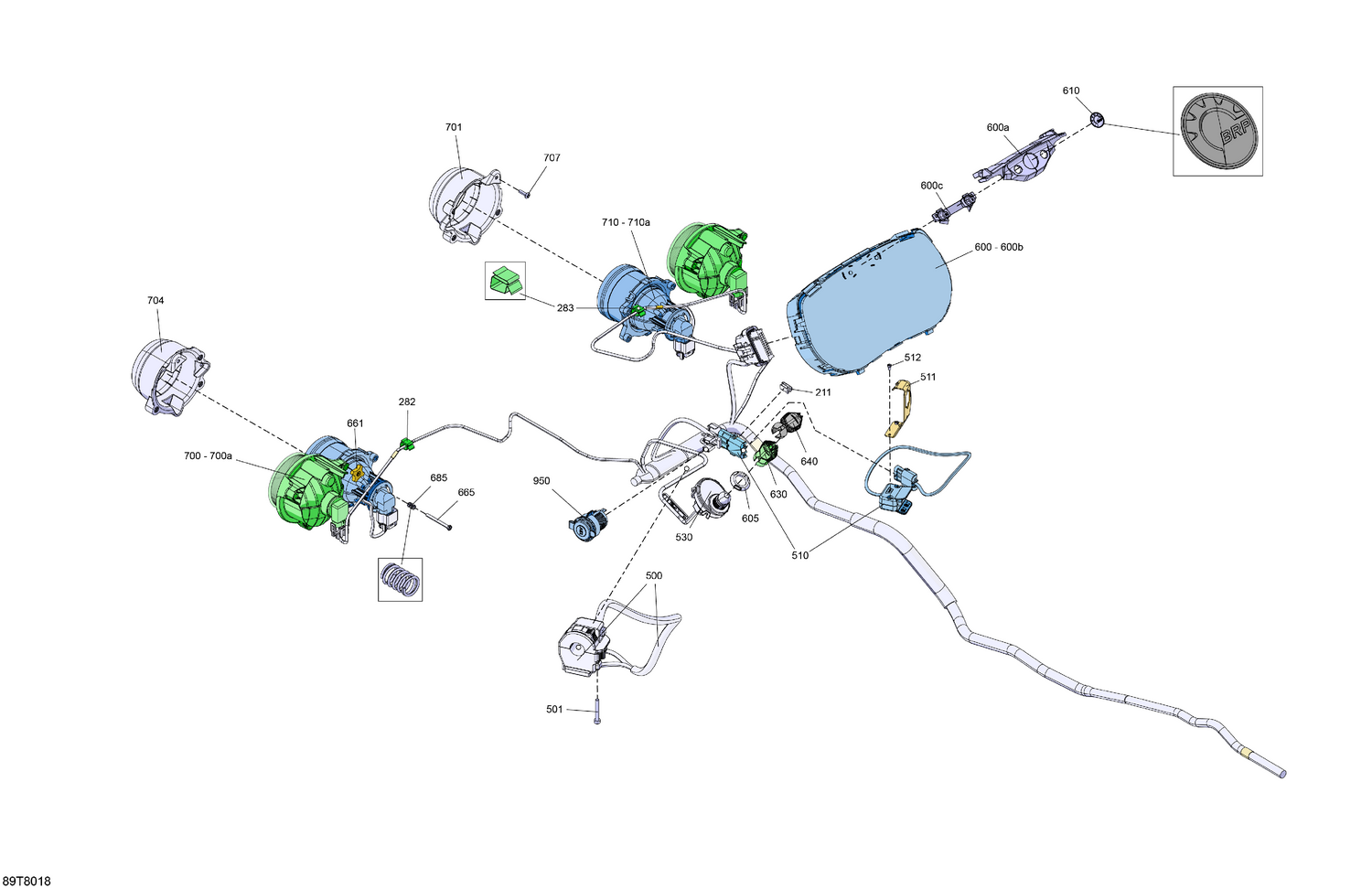

08- Electric - Front Section
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 211 | 710000992 | Clip |
| 282 | 414227300 | Clip |
| 283 | 414227300 | Clip |
| 500 | 710005070 | Multi-Function Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 510 | 710005241 | Winch Switch |
| 511 | 710004670 | Black Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 530 | 515178840 | Terminal Dess One-Wire |
| 600a | 705004366 | Cap Support |
| 600b | 415129349 | Lens |
| 600c | 415129355 | Speedometer Button |
| 605 | 278002963 | Safety Nut (DESS Switch) |
| 610 | 516006224 | BRP Logo 20MM x 2MM |
| 630 | 710005232 | Green Key RFID |
| 640 | 710004964 | Grey Key RFID |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710a | 415129249 | Halogen Bulb |
