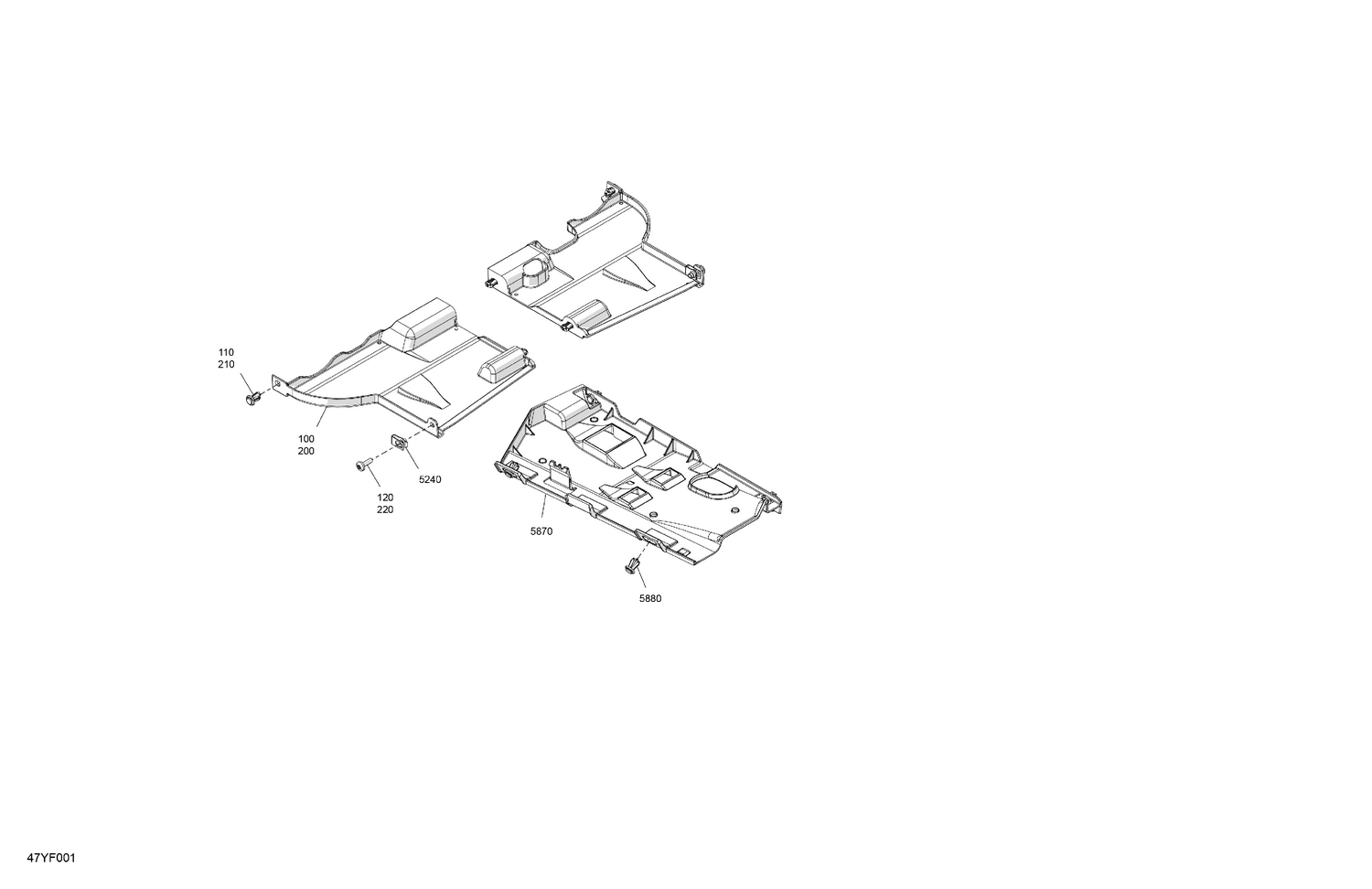

07- Body - Skid Plate
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705005438 | LH Skid Plate |
| 110 | 293150230 | Tuflok Plastic Rivet |
| 120 | 250000705 | Torx Truss Screw M6 X 20 |
| 200 | 705005439 | RH Skid Plate |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 220 | 250000705 | Torx Truss Screw M6 X 20 |
| 5240 | 250100198 | Panel Nut M6 X 1.0 |
| 5870 | 705014742 | LH Deflector Panel |
