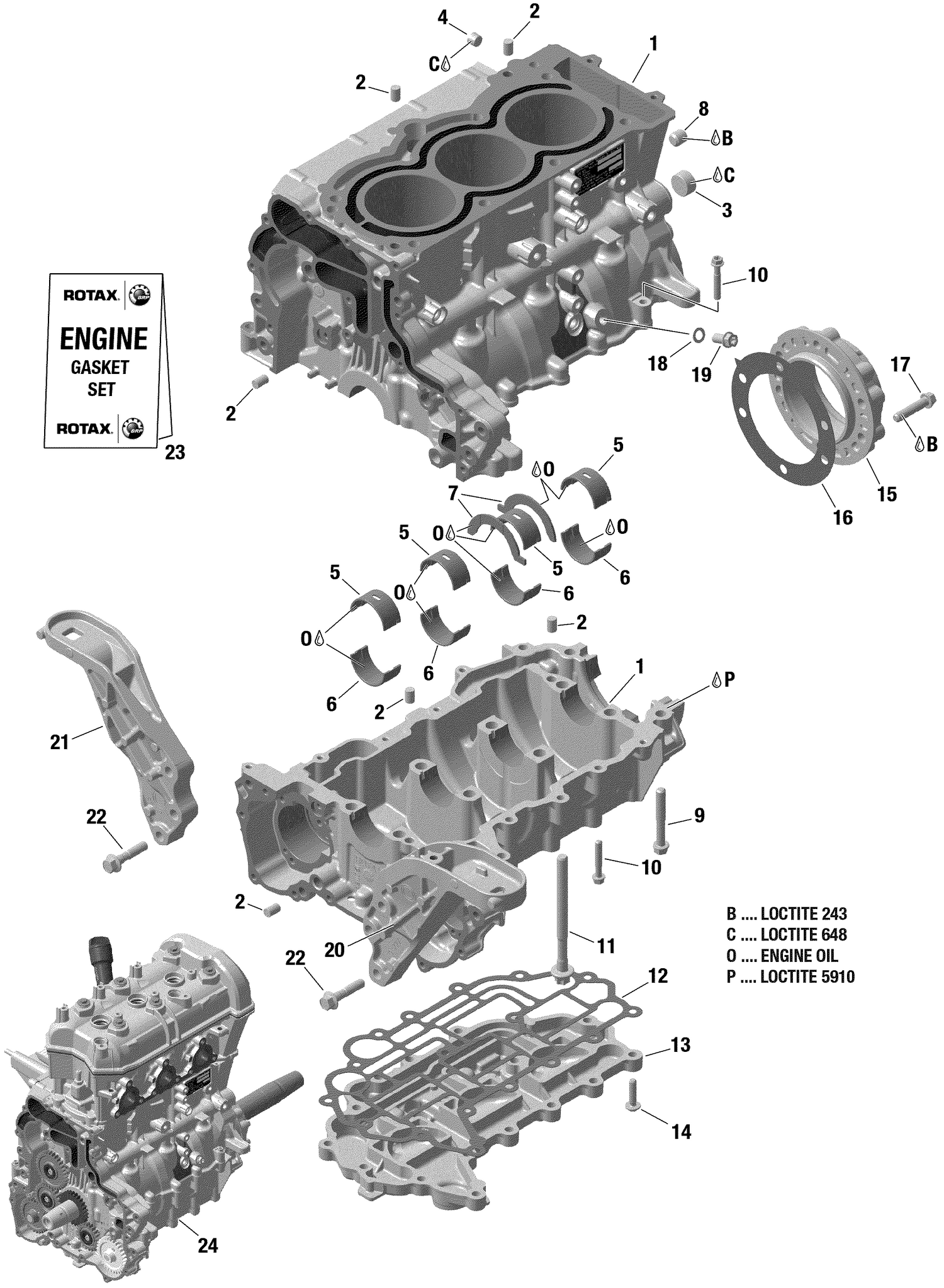

01- Rotax - Crankcase - 900 ACE
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641317 | Plug Screw M20 X 1.5 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420933180 | Cushion |
| 6 | 420933185 | Cushion |
| 7 | 420933140 | Ring Half |
| 8 | 420840508 | Threaded Pin |
| 9 | 420641213 | Torx Flange Screw M8 X 55 |
| 10 | 420440274 | Torx Flange Screw M6 X 35 |
| 11 | 420940945 | Torx Flange Screw M9 X 113 |
| 12 | 420431820 | Gasket |
| 13 | 420912383 | Oil Sump This part replaces 420911507. |
| 14 | 420841548 | Torx Flange Screw M6 X 25 |
| 15 | 420911686 | PTO Cover |
| 16 | 420450080 | PTO Cover Gasket |
| 17 | 420440861 | Torx Flange Screw M8 X 35 |
| 18 | 420950141 | Sealing Ring |
| 19 | 420440852 | Torx Flange Screw M8 X 16 |
| 20 | 420911777 | Engine Bracket Front Exh. |
| 21 | 420911773 | Engine Bracket Front inl. |
| 22 | 420640440 | Collar Hex Screw M8X35 |
| 23 | 420686239 | Gasket Set |
