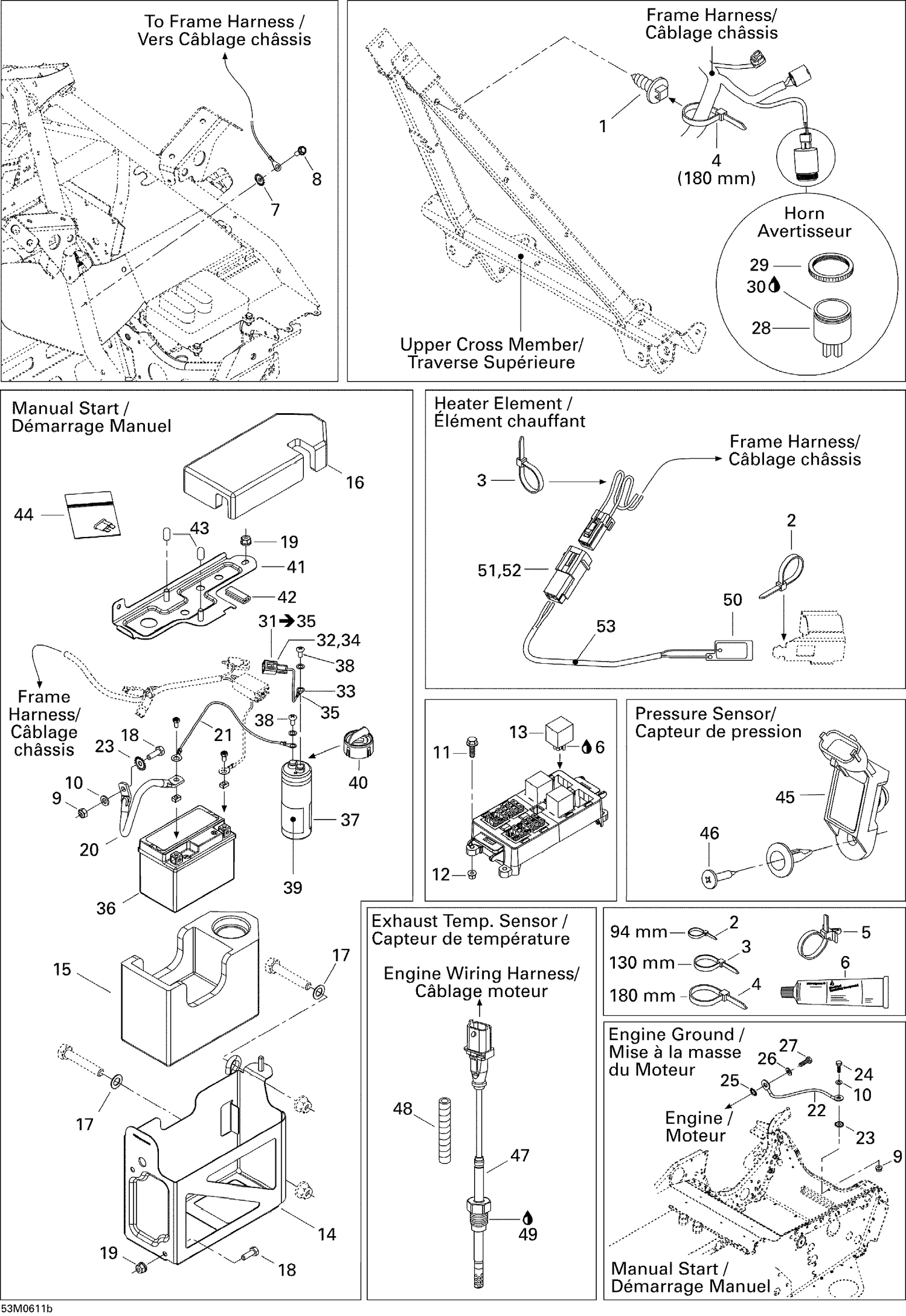

| Ref | Part Number | Description |
|---|
| 1 |
293730040 |
Mount Dart This part replaces 293730018. |
| 2 |
293750001 |
Tie Wrap 94 mm |
| 3 |
293750002 |
Tie Wrap 142 mm |
| 4 |
414115200 |
Tie-Rap 180 mm |
| 5 |
293750009 |
Tie-Rap 173 mm |
| 6 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 7 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 8 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
234061410 |
Flat Washer 6 mm |
| 11 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 12 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 14 |
515176230 |
Battery Support Black |
| 15 |
515176190 |
CAPACITOR SUPPORT - Call your local BRP dealership |
| 16 |
515176114 |
COVER - Call your local BRP dealership |
| 17 |
503175800 |
Washer |
| 18 |
207161844 |
Hex. Screw M6 X 18 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
515175749 |
Ground Wire |
| 21 |
515176119 |
GROUND HARNESS, CAPACITOR - Call your local BRP dealership |
| 22 |
515176276 |
BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership |
| 23 |
250200041 |
Lock Washer Serrated M6 |
| 24 |
207162044 |
Hex. Screw M6 X 20 |
| 25 |
234481608 |
Serrated Lock Washer 8 mm |
| 26 |
234081410 |
Flat Washer 8 mm |
| 27 |
207181644 |
Hex. Screw M8 x 16 |
| 28 |
515176035 |
HORN - Call your local BRP dealership |
| 29 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 30 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 32 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 33 |
515175504 |
Ring Terminal |
| 34 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 35 |
Not |
Available As Spare Part - Heat Shrink Tubing |
| 36 |
415130961 |
Battery 12 Volt 4 Ah This part replaces 410301204. |
| 37 |
515176387 |
CAPACITOR - Call your local BRP dealership |
| 38 |
515176257 |
Mechanical Screw |
| 39 |
516002976 |
CAPACITOR DECAL - Call your local BRP dealership |
| 40 |
515176211 |
CAP - Call your local BRP dealership |
| 41 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
| 42 |
219704405 |
TRIM 30000MM LONG - Call your local BRP dealership |
| 43 |
515176141 |
Cap |
| 44 |
Not |
Available As Spare Part - Plastic Bag |
| 45 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 46 |
414745900 |
Tuflock Phillips Plastic Screw |
| 47 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 48 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 49 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 50 |
515176256 |
Heater Element |
| 51 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 52 |
515175232 |
Male Terminal |
