| Ref | Part Number | Description |
|---|
| ACC1 |
515178014 |
Female Terminal |
| ACC2 |
515178014 |
Female Terminal |
| ALP |
515178013 |
Male Terminal |
| ALP |
515178293 |
Male Terminal |
| ALP |
515178907 |
Molex Male Connector 8 Cavities |
| ALP |
710006670 |
Male Molex Terminal |
| BUZZ |
515178018 |
Female Terminal |
| BUZZ |
515178349 |
Female Terminal 22 AWG |
| COM |
278000632 |
Female connector |
| COM |
278001665 |
Female terminal |
| COM |
710002705 |
Lock |
| COM |
710002706 |
Female Housing, 6 Circuits |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB |
710001727 |
Female Terminal |
| ECMB |
710001967 |
Molex Housing, 48 Circuits |
| ECO |
515178302 |
Female Terminal |
| F1 |
710000742 |
Little Fuse, 5 Ampere |
| F10 |
710000747 |
Little Fuse, 30 Amperes |
| F2 |
710000746 |
Little Fuse, 20 Ampere |
| F3 |
710000744 |
Little Fuse, 10 Ampere |
| F4 |
710000744 |
Little Fuse, 10 Ampere |
| F5 |
710000744 |
Little Fuse, 10 Ampere |
| F6 |
710000745 |
Little Fuse, 15 Ampere |
| F7 |
710000745 |
Little Fuse, 15 Ampere |
| F8 |
710000745 |
Little Fuse, 15 Ampere |
| F9 |
710000742 |
Little Fuse, 5 Ampere |
| FA |
278000805 |
Cap Holder - Fuse |
| FA |
278001325 |
Fuse Holder |
| FA |
278001326 |
Fuse Holder Cap |
| FA |
710000357 |
Female Terminal |
| FAN |
278000217 |
Female Housing, 2 Circuits |
| FAN |
278000218 |
Wire Seal |
| FAN |
409004300 |
Male Terminal |
| FB1 |
278000218 |
Wire Seal |
| FB1 |
278001065 |
Wire Seal |
| FB1 |
278002824 |
Case Ass'y with seal, 24 positions |
| FB1 |
710000890 |
Female Terminal |
| FB1 |
710000918 |
Female Terminal |
| FB1C |
515177451 |
Fuse Box Cover |
| FB1C |
710000744 |
Little Fuse, 10 Ampere |
| FB1C |
710000745 |
Little Fuse, 15 Ampere |
| FB1C |
710000746 |
Little Fuse, 20 Ampere |
| FB2 |
515178311 |
Housing |
| FB2 |
710000274 |
Female Terminal |
| FB2 |
710006126 |
Female Terminal |
| FB2C |
515178310 |
Cover |
| FP |
515178018 |
Female Terminal |
| FP |
515178349 |
Female Terminal 22 AWG |
| FP |
515178474 |
Female Housing |
| GRIP |
515178174 |
Housing, 12 Circuits |
| GRIP |
515178302 |
Female Terminal |
| HIC |
278003535 |
Female Housing, 4 circuits |
| HIC |
515178018 |
Female Terminal |
| HL1 |
515178006 |
Female Housing |
| HL1 |
710001228 |
Terminal |
| HL1 |
710001332 |
Seal Wire |
| HL2 |
515178006 |
Female Housing |
| HL2 |
710001228 |
Terminal |
| HL2 |
710001332 |
Seal Wire |
| HO2S1 |
278001482 |
Seal |
| HO2S1 |
515178661 |
Lock |
| HO2S1 |
710000736 |
Terminal |
| HO2S1 |
710000992 |
Clip |
| HO2S1 |
710002466 |
Housing |
| HO2S1 |
710002467 |
Gold Terminal |
| MG |
278002858 |
Female Housing 20 Circuits |
| MG |
515178014 |
Female Terminal |
| MG |
515178018 |
Female Terminal |
| MG |
515178349 |
Female Terminal 22 AWG |
| REG |
710000877 |
Female Terminal |
| REG |
710000879 |
Female Housing, 3 Circuits |
| REG |
710000881 |
Seal |
| REG |
710000882 |
Cap |
| RFID |
710001161 |
Housing |
| RFID |
710001163 |
Wire Seal |
| RFID |
710001164 |
Female Terminal |
| RY1 |
715900824 |
Relay This part replaces 710001778. |
| RY2 |
515176774 |
Relay, 30 AMP |
| RY3 |
715900824 |
Relay This part replaces 710001778. |
| RY4 |
515176774 |
Relay, 30 AMP |
| RY5 |
715900824 |
Relay This part replaces 710001778. |
| RY6 |
715900824 |
Relay This part replaces 710001778. |
| RY7 |
715900824 |
Relay This part replaces 710001778. |
| SD |
515177192 |
Female Housing, 2 Circuits |
| SD |
710000925 |
Terminal |
| SD |
710001332 |
Seal Wire |
| SH |
515178013 |
Male Terminal |
| SH |
515178578 |
Block 12 |
| SH |
710006670 |
Male Molex Terminal |
| TAS |
710000992 |
Clip |
| TAS |
710001224 |
Terminal |
| TAS |
710001231 |
Housing |
| TAS |
710001233 |
Seal |
| TL |
515178014 |
Female Terminal |
| TL |
515178018 |
Female Terminal |
| TL |
515178346 |
Female Housing Connector 4 Pins W/O CPA |
| VSS |
515178018 |
Female Terminal |
| VSS |
515178024 |
Housing |
| VSS |
515178349 |
Female Terminal 22 AWG |
| WALF |
515178024 |
Housing |

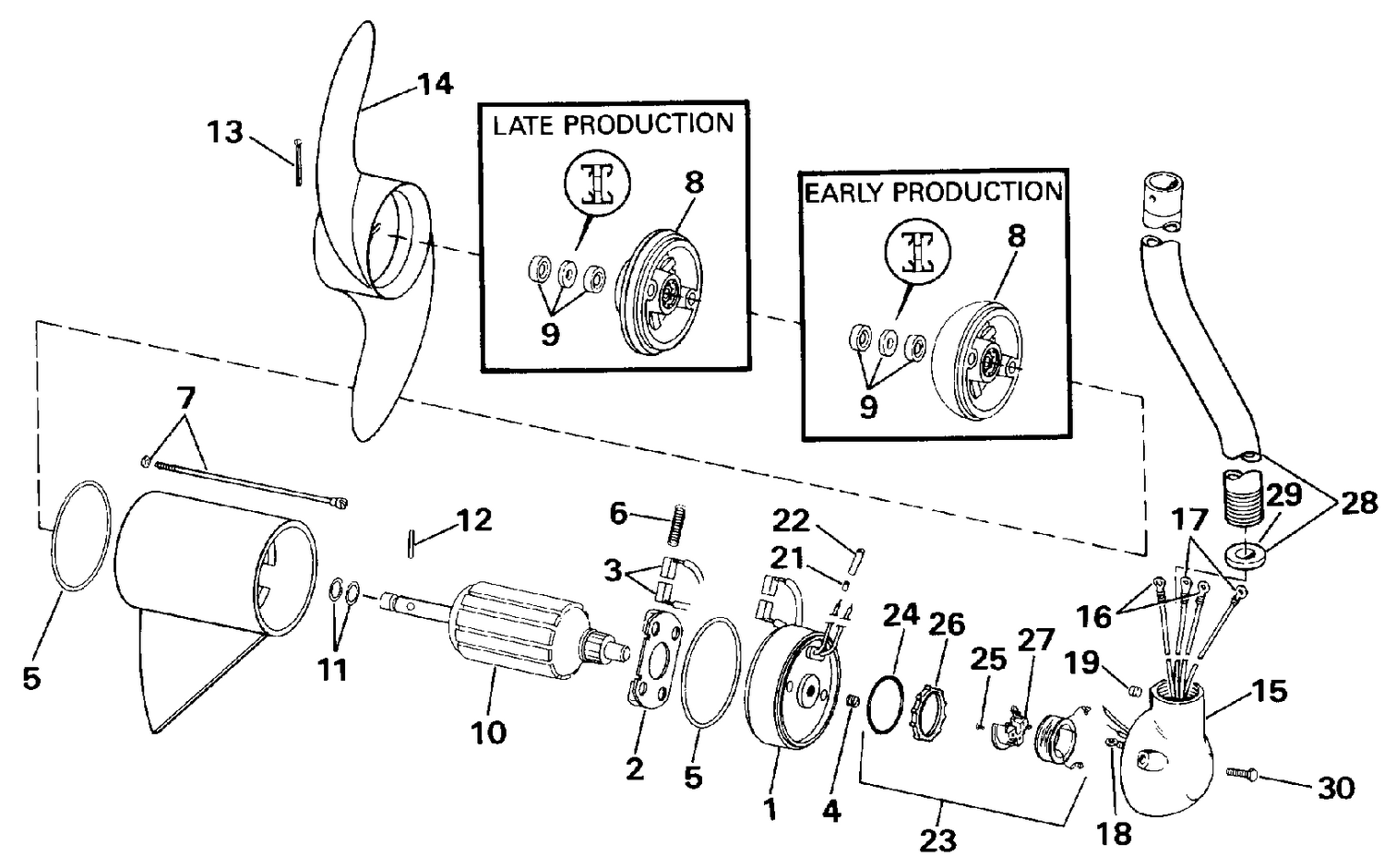

| 1 |
0394722 |
HEAD ASSY., Comm. end |
| 1 |
0398257 |
HEAD ASSY., Comm. end |
| 1 |
0583792 |
HEAD ASSY., Comm. end |
| 2 |
0392940 |
BRUSH HOLDER & SCREWS |
| 2 |
0583791 |
BRUSH HOLDER & SCREWS |
| 3 |
0398258 |
REPLACEMENT BRUSH SET |
| 3 |
0582407 |
REPLACEMENT BRUSH SET |
| 3 |
0583798 |
REPLACEMENT BRUSH SET |
| 4 |
0330114 |
SET SCREW, End head |
| 4 |
0334613 |
SET SCREW, End head |
| 5 |
0583802 |
O-RING PACKAGE |
| 6 |
0583794 |
SPRING SET, Brush |
| 7 |
0398259 |
THRU BOLT PACKAGE |
| 7 |
0583795 |
THRU-BOLT PACKAGE |
| 8 |
0433608 |
HEAD ASSY., Drive end This part replaces 0583793. |
| 8 |
0433612 |
HEAD ASSY., Drive end This part replaces 0398261. |
| 9 |
0393429 |
SEAL PACAKGE ASSY.,Drive end head |
| 9 |
0583797 |
SEAL PACKAGE ASSY,, Drive end |
| 10 |
0396505 |
ARMATURE ASSY. |
| 10 |
0433610 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0394721. |
| 10 |
0583799 |
ARMATURE ASSY. |
| 10 |
0583800 |
ARMATURE ASSY. |
| 11 |
0392266 |
THRUST WASHER PACKAGE |
| 11 |
0583796 |
THRUST WASHER PKG |
| 12 |
0333513 |
DRIVE IN, Propeller |
| 14 |
0124709 |
PROP., 8 3/4 x 4 weedless This part replaces 0327530. |
| 14 |
0331707 |
PROP., 12 1/2 x 4 weedless |
| 15 |
0432805 |
ADAPTER & O-RING PKG., 48 in length |
| 15 |
0432976 |
ADAPTER & O-RING PKG., 36 in. length |
| 15 |
0432977 |
ADAPTER & O-RING PKG., 42 in. length |
| 18 |
0512891 |
TERMINAL, Ring |
| 19 |
0321223 |
SET SCREW |
| 23 |
0398545 |
RESISTOR ASSY |
| 26 |
0326969 |
SPACER, Adapter to motor |
| 27 |
0326907 |
TERMINAL BOARD |
| 28 |
0281068 |
MOTOR TUBE & SEAL PKG |
| 28 |
0392156 |
MOTOR TUBE & SEAL PKG. 42" length |
| 28 |
0396737 |
MOTOR TUBE & SEAL PKG., 42" only |
| 28 |
0432682 |
MOTOR TUBE & SEAL PKG., 48 in. length |
| 28 |
0432683 |
MOTOR TUBE, 36 in. length |
| 29 |
0320681 |
SEAL, Adapter to motor tube |
| 3000 |
515179524 |
Chassis Wiring Harness |
| 0392262 |
0433610 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0392262. |
| 0396507 |
0433609 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0396507. |
| 0433609 |
0433609 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) |
| 0433610 |
0433610 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) |
