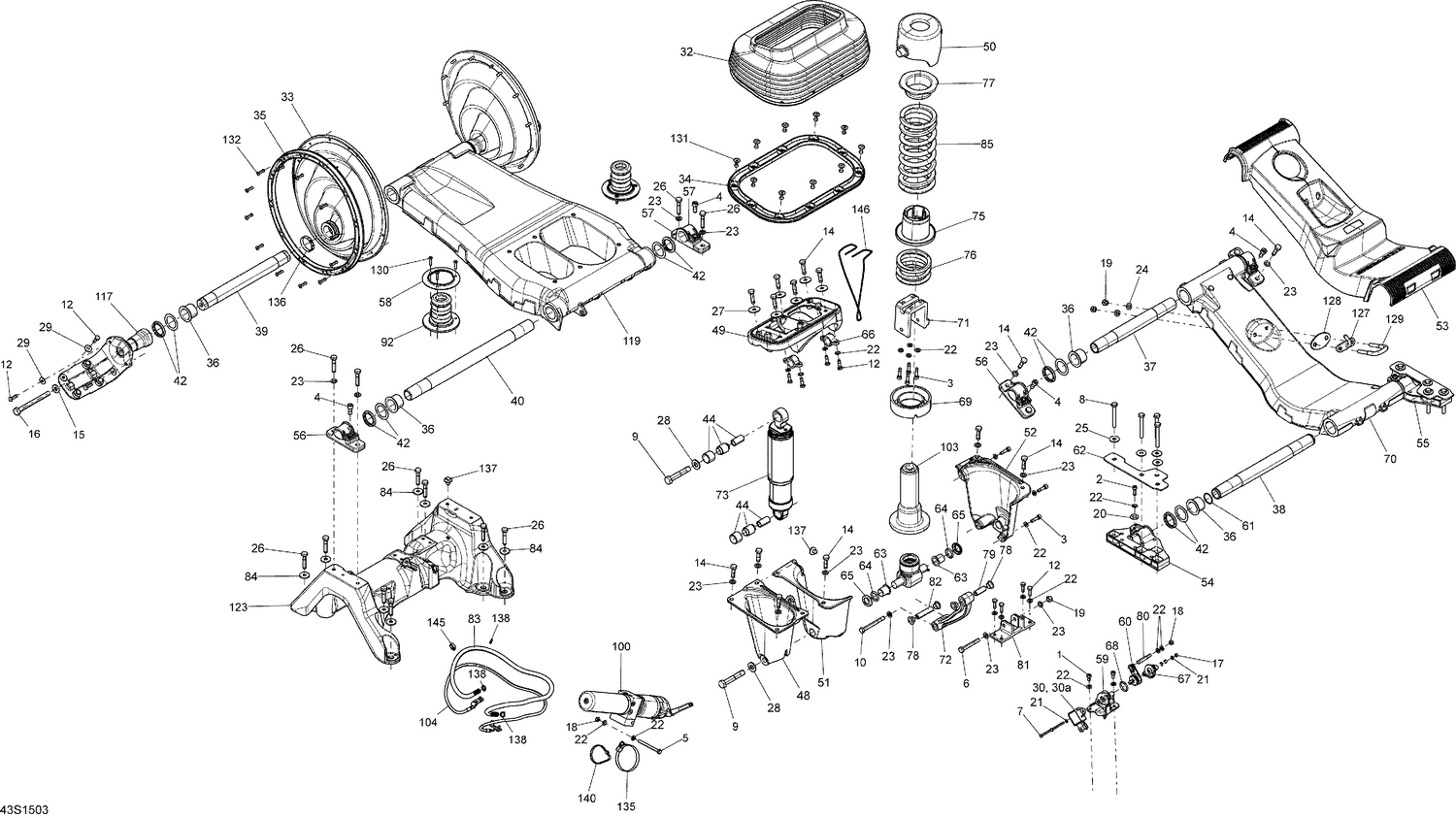

| Ref | Part Number | Description |
|---|
| 1 |
205561260 |
Socket Head Screw M6 X 12, Scotch Grip |
| 2 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 3 |
205562560 |
Socket Head Screw M6 X 25, Scotch Grip |
| 4 |
205582060 |
Socket Head Screw M8 X 20, Scotch Grip |
| 5 |
207067060 |
Hex. Screw M6 X 70 |
| 6 |
207086060 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 7 |
207144060 |
Hex. Screw M4 X 40 |
| 8 |
207186560 |
Hex. Screw M8 X 65 |
| 9 |
207227060 |
HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership |
| 10 |
207287560 |
HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership |
| 12 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 14 |
207383060 |
Hex. Screw M8 X 30, Scotch Grip |
| 15 |
211200051 |
Flat Washer |
| 16 |
230201060 |
Hex. Screw M10 X 110, Scotch Grip |
| 17 |
232541200 |
Elastic Stop Nut M4 |
| 18 |
232561200 |
Brass Elastic Stop Nut M6 |
| 19 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 20 |
234001600 |
Flat Washer 10 mm, Stainless |
| 21 |
234041600 |
Flat Washer 4 mm, Stainless |
| 22 |
234061600 |
Stainless Flat Washer M6 |
| 23 |
234080600 |
Flat Washer M8, Stainless |
| 24 |
234081600 |
Stainless, Flat Washer 8 mm |
| 25 |
234082600 |
Flat Washer 8 mm, Stainless |
| 26 |
250000729 |
HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership |
| 27 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 28 |
250200053 |
FLAT WASHER M12 - Call your local BRP dealership |
| 29 |
250200115 |
Flat Washer M6 |
| 30 |
420866120 |
Position Sensor This part replaces 270000251. |
| 30a |
270000544 |
O-Ring |
| 32 |
279000008 |
CENTRAL BELLOWS - Call your local BRP dealership |
| 33 |
279000009 |
Lateral Bellows |
| 34 |
279000010 |
Retaining Plate |
| 35 |
279000011 |
Retaining Ring |
| 36 |
279000019 |
Bushing |
| 37 |
279000031 |
PIVOT TUBE - Call your local BRP dealership |
| 38 |
279000033 |
PIVOT TUBE - Call your local BRP dealership |
| 39 |
279000038 |
PIVOT TUBE - Call your local BRP dealership |
| 40 |
279000041 |
PIVOT TUBE - Call your local BRP dealership |
| 42 |
279000047 |
RUBBER BUMPER - Call your local BRP dealership |
| 44 |
279000051 |
Bushing |
| 48 |
279000055 |
SHOCK LOWER HOLDER - Call your local BRP dealership |
| 49 |
279000057 |
Shock Upper Holder |
| 50 |
279000061 |
UPPER SPRING HOLDER - Call your local BRP dealership |
| 51 |
279000070 |
LH SPRING HOLDER - Call your local BRP dealership |
| 52 |
279000074 |
RH SPRING HOLDER - Call your local BRP dealership |
| 53 |
279000080 |
REAR ARM MOULDING - Call your local BRP dealership |
| 54 |
279000083 |
LH REAR BASE - Call your local BRP dealership |
| 55 |
279000087 |
RH REAR BASE - Call your local BRP dealership |
| 56 |
279000089 |
LH CLAMP - Call your local BRP dealership |
| 57 |
279000092 |
RH CLAMP - Call your local BRP dealership |
| 58 |
279000115 |
Retaining Ring |
| 59 |
279000098 |
POSITION SENSOR BRACKET - Call your local BRP dealership |
| 60 |
279000099 |
SENSOR LEVER - Call your local BRP dealership |
| 61 |
279000100 |
RETAINING RING - Call your local BRP dealership |
| 62 |
279000114 |
RETAINING PLATE - Call your local BRP dealership |
| 63 |
279000103 |
BUSHING - Call your local BRP dealership |
| 64 |
279000104 |
O-RING - Call your local BRP dealership |
| 65 |
279000105 |
BUSHING - Call your local BRP dealership |
| 66 |
279000106 |
CLAMP - Call your local BRP dealership |
| 67 |
279000107 |
POSITION SENSOR COVER - Call your local BRP dealership |
| 68 |
279000108 |
O-Ring |
| 69 |
279000121 |
Lower Spring Protector |
| 70 |
279000001 |
REAR ARM ASS'Y - Call your local BRP dealership |
| 71 |
279000154 |
SPRING ALIGNMENT ADAPTOR - Call your local BRP dealership |
| 72 |
279000157 |
SPRING ALIGNMENT ARM - Call your local BRP dealership |
| 73 |
279000247 |
Shock |
| 75 |
279000130 |
Spring Spacer |
| 76 |
279000131 |
PAINTED SPRING - Call your local BRP dealership |
| 77 |
279000134 |
UPPER SPRING PROTECTOR - Call your local BRP dealership |
| 78 |
279000137 |
BUSHING - Call your local BRP dealership |
| 79 |
279000138 |
SPACER - Call your local BRP dealership |
| 80 |
279000139 |
THREADED ROD - Call your local BRP dealership |
| 81 |
279000155 |
BRACKET - Call your local BRP dealership |
| 82 |
279000153 |
SPACER - Call your local BRP dealership |
| 83 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 84 |
279000336 |
Flat Washer This part replaces 279000164. |
| 85 |
279000128 |
PAINTED SPRING - Call your local BRP dealership |
| 92 |
279000193 |
RUBBER BUMPER - Call your local BRP dealership |
| 100 |
279000208 |
PUMP ASS'Y - Call your local BRP dealership This part replaces 279000207. |
| 103 |
279000117 |
ACTUATOR - Call your local BRP dealership |
| 104 |
279000162 |
CONNECTOR HOSE - Call your local BRP dealership |
| 117 |
279000306 |
FOOT REST - Call your local BRP dealership |
| 119 |
279000308 |
FRONT ARM ASS'Y - Call your local BRP dealership |
| 123 |
279000316 |
FRONT ARM BASE - Call your local BRP dealership |
| 127 |
291002351 |
Hook |
| 128 |
291001386 |
Black, Finition Plate |
| 129 |
292000933 |
U-Clamp |
| 130 |
293150005 |
Pop Rivet 3/16" |
| 131 |
293150123 |
Pop Rivet 3/16" |
| 132 |
293150176 |
Pop Rivet 3/16" |
| 133 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 135 |
293650079 |
Norma Clamp |
| 136 |
293650199 |
Oetiker Gear Clamp |
| 137 |
293730040 |
Mount Dart |
| 138 |
293750001 |
Tie Wrap 94 mm |
| 140 |
293750008 |
Tie Wrap 368 mm |
| 145 |
414115200 |
Tie-Rap 180 mm |
