Parts Catalog

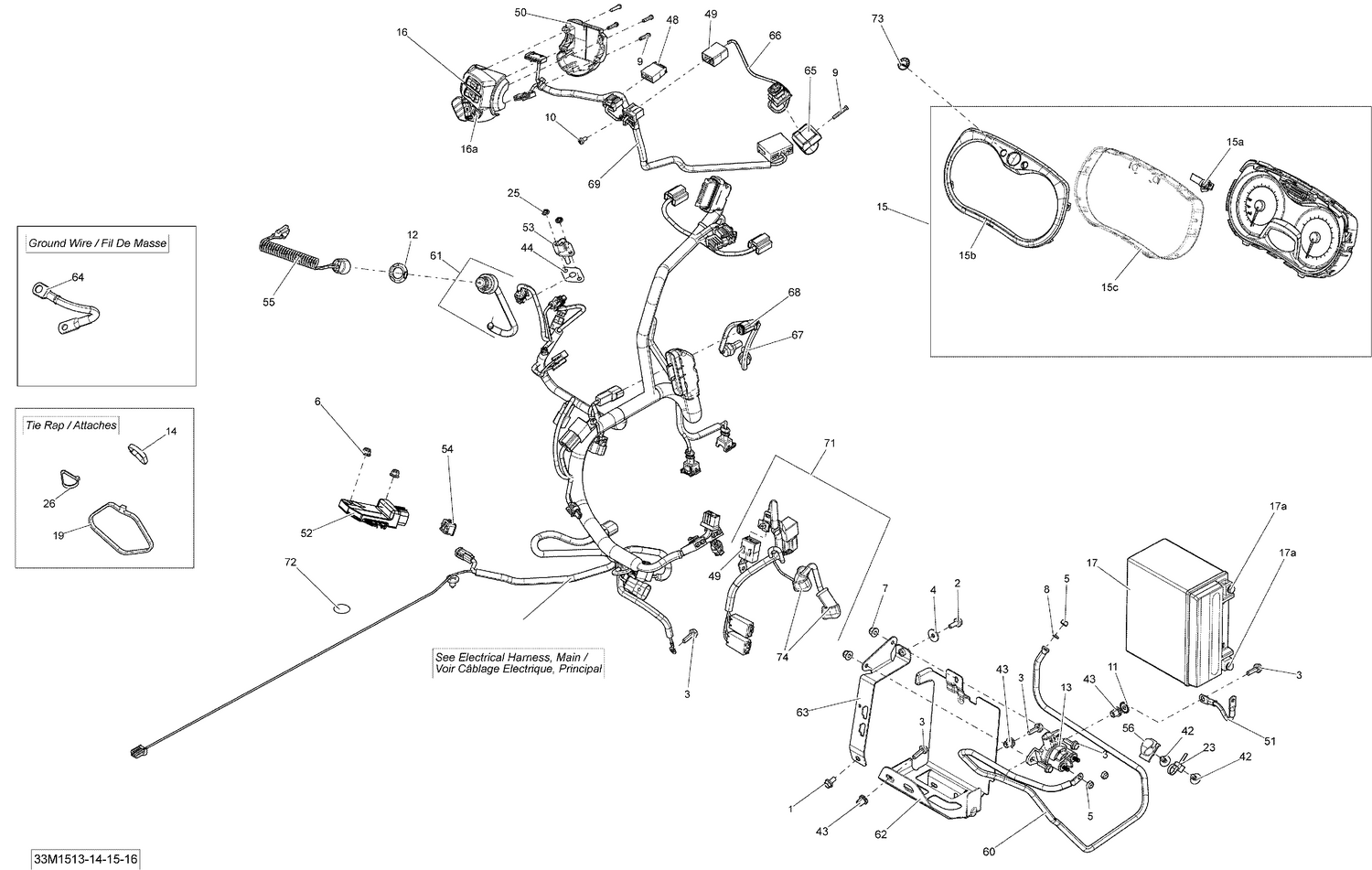

10- Electrical System _33M1515

Parts (51)

Ref	Part Number	Description
1	XXX	Not Available As Spare Parts
2	XXX	Not Available As Spare Parts
3	207662044	Hex. Flange Screw M6 X 20
4	XXX	Not Available As Spare Parts
5	XXX	Not Available As Spare Parts
6	233261414	Hex. Flange Elastic Nut M6 x 1.0
7	XXX	Not Available As Spare Parts
8	XXX	Not Available As Spare Parts
9	250000263	Torx Screw #8-18
10	250000690	Pan Screw Forming, 7500C
11	XXX	Not Available As Spare Parts
12	278002963	Safety Nut (DESS Switch)
13	XXX	Not Available As Spare Parts
14	293750002	Tie Wrap 142 mm
15a	415129355	Speedometer Button
15b	415129370	Gauge Ring
15c	415129349	Lens
16a	515176088	Start/RER Button
17	XXX	Not Available As Spare Parts
19	293750008	Tie Wrap 368 mm
23	XXX	Not Available As Spare Parts
24	219704455	Was 293800018 Loctite 592, 50 ml
25	XXX	Not Available As Spare Parts
26	414115200	Tie-Rap 180 mm
42	414644300	Black, Dart
43	293450275	Insert
44	XXX	Not Available As Spare Parts
48	515175662	Male Terminal Housing, 6 Circuits
49	515175817	Male Terminal Housing, 8 Circuits
50	515175926	Switch Housing Plate
51	XXX	Not Available As Spare Parts
52	515176364	Voltage Regulator
53	XXX	Not Available As Spare Parts
54	515176681	Lock
55	515178284	DESS This part replaces 515177057.
56	XXX	Not Available As Spare Parts
57	515177095	WIRING HARNESS MAIN - Call your local BRP dealership
59	XXX	Not Available As Spare Parts
60	XXX	Not Available As Spare Parts
61	515177249	DESS Switch
62	XXX	Not Available As Spare Parts
63	XXX	Not Available As Spare Parts
64	515177289	Ground Wire
65	515177310	Emergency Stop Switch Support
66a	515175232	Male Terminal
67	XXX	Not Available As Spare Parts
68	515177814	Sensor Temperature This part replaces 515177472.
69	515177609	Steering Wiring Harness
71	XXX	Not Available As Spare Parts
72	518325560	Adhesive Patch
73	516006224	BRP Logo 20MM x 2MM This part replaces 704904616.
