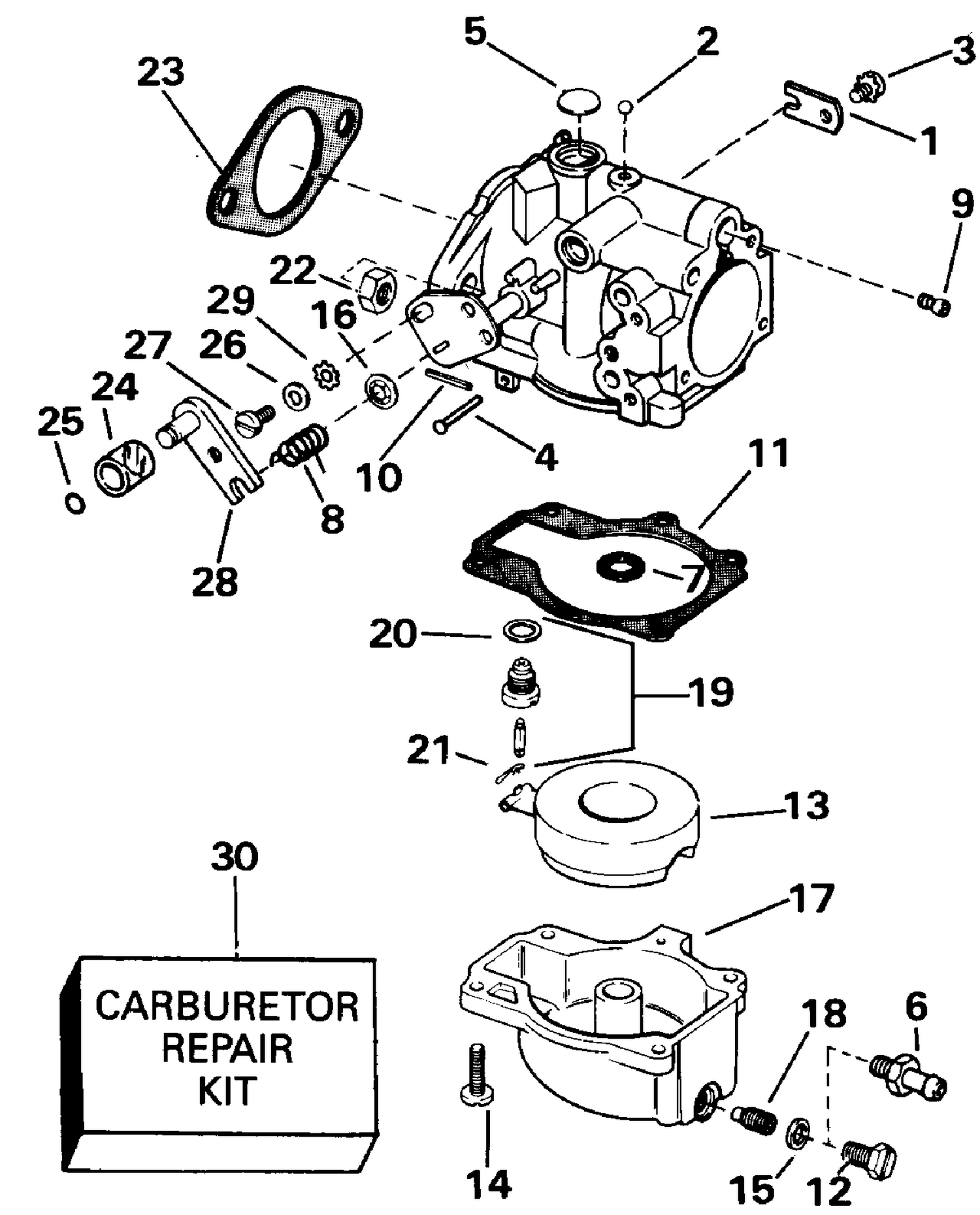

CARBURETOR - ALL 45 MODELS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 18 | 0328525 | ORIFICE PLUG |
| 21 | 0336842 | CLIP, SPRING |
| 22 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 23 | 0325092 | GASKET |
| 24 | 0397499 | ROLLER & SLEEVE ASSY. |
| 25 | 0308776 | O-RING |
| 28 | 0397036 | LEVER & PIN |
| 0431878 | 0431878 | CARB ASSY., Lower |
| 0431879 | 0431879 | CARB ASSY., Lower |
| 0432149 | 0432149 | CARB ASSY., Lower |
| 0432150 | 0432150 | CARB ASSY., Upper |
| 0432159 | 0434158 | CYLINDER & C'CASE ASSY.,175 This part replaces 0432159. |
