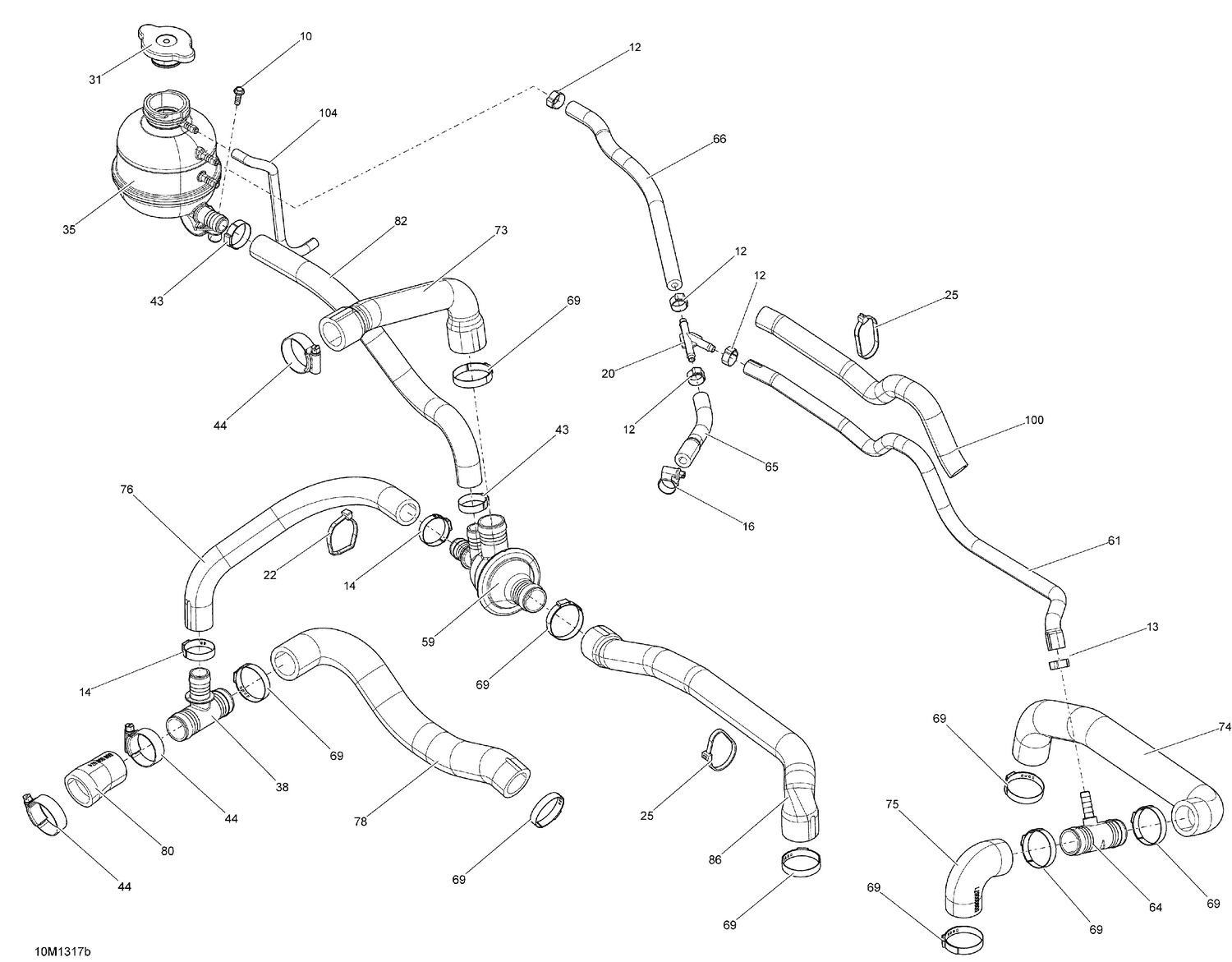

01- Cooling System 800RPTEK
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 12 | 293650046 | Oetiker Clamp |
| 13 | 293650047 | Crimp Clamp, 15.3-706R |
| 14 | 293650099 | Crimp Clamp |
| 16 | 293650170 | Tridon Gear Clamp |
| 20 | 293710059 | Y-Fitting |
| 22 | 293750008 | Tie Wrap 368 mm |
| 25 | 414115200 | Tie-Rap 180 mm |
| 31 | 509000180 | Radiator Pressure Cap |
| 35 | 509000368 | Coolant Tank |
| 38 | 509000372 | T-Fitting |
| 43 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 44 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 61 | 509000502 | Bleeder Hose |
| 64 | 509000510 | T-Fitting |
| 65 | 509000516 | BLEEDER HOSE - Call your local BRP dealership |
| 66 | 509000517 | BLEEDER HOSE - Call your local BRP dealership |
| 69 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 73 | 509000669 | ENGINE OUTLET HOSE - Call your local BRP dealership |
| 74 | 509000670 | Radiator Hose |
| 75 | 509001066 | Radiator Hose This part replaces 509000671. |
| 76 | 509000672 | Bypass Hose |
| 78 | 509000673 | Radiator Hose |
| 80 | 509000997 | Engine Inlet Hose This part replaces 509000674. |
| 82 | 509000676 | Filling Hose |
| 86 | 509000679 | Thermostat Outlet Hose |
| 100 | 219704408 | Tubing 16 Mm 1000Mm Long |
