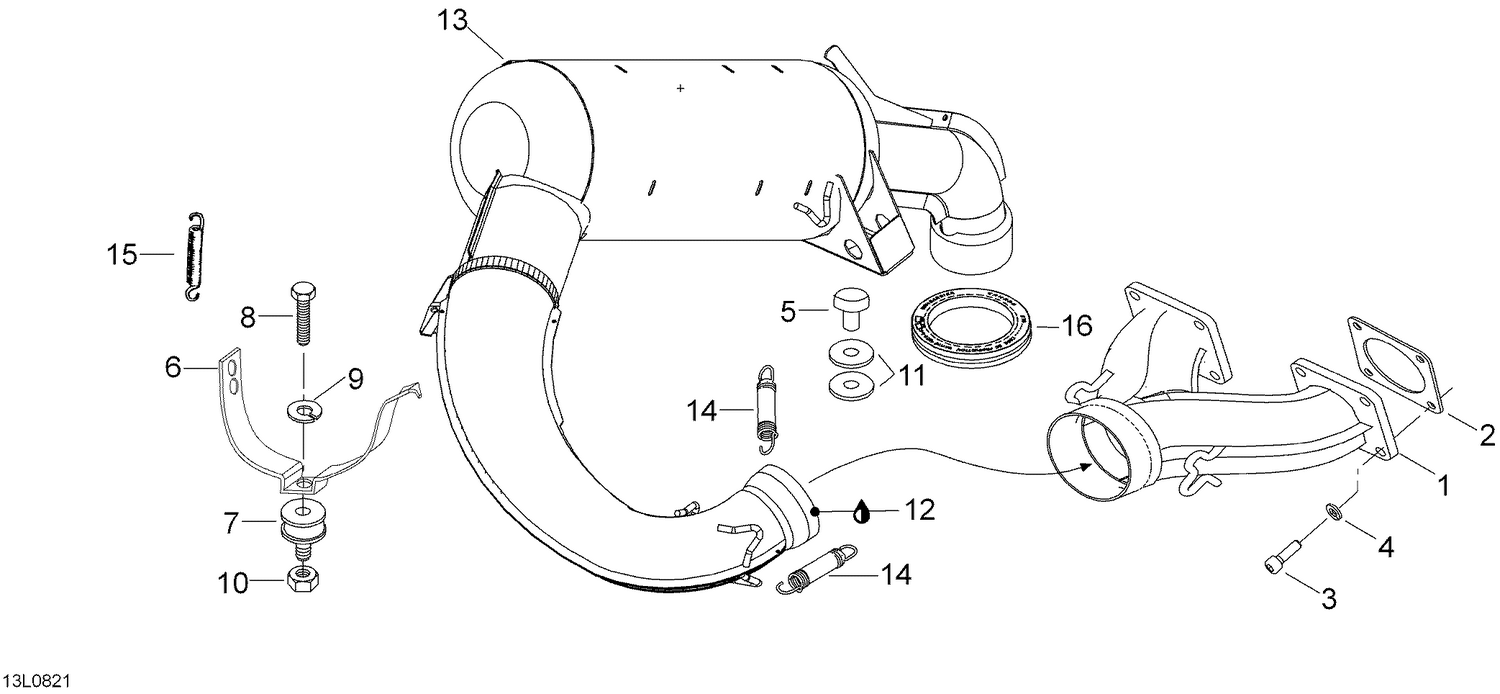

| Ref | Part Number | Description |
|---|
| 1 |
420879459 |
Manifold |
| 2 |
420850114 |
GASKET - Call your local BRP dealership |
| 3 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 4 |
20014 |
Lock washer A8 |
| 5 |
570044700 |
Bumper |
| 6 |
535108 |
Bracket |
| 7 |
28245 |
BUMPER-RUBBER - Call your local BRP dealership |
| 8 |
40034 |
Hex. screw M8 x 10 |
| 9 |
20014 |
Lock washer A8 |
| 10 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 11 |
20077 |
M8 Washer |
| 12 |
293800090 |
Sealant, Loctite, 80 ml |
| 13 |
420979825 |
Tuned pipe |
| 14 |
420938796 |
Spring This part replaces 420938795. |
| 15 |
543225 |
Spring |
