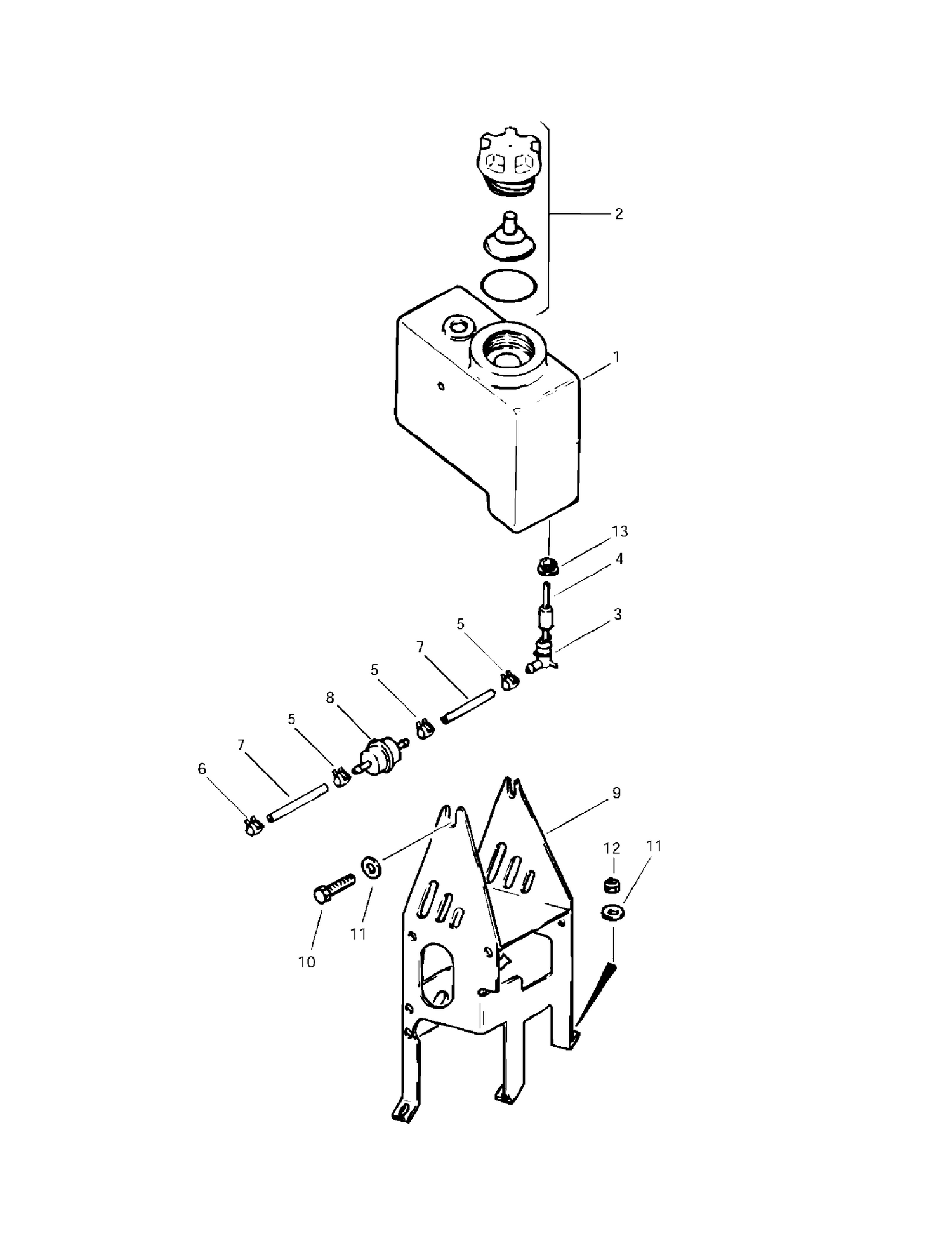

| Ref | Part Number | Description |
|---|
| 1 |
571002500 |
Oil Tank |
| 2 |
580657210 |
OIL TANK CAP - Call your local BRP dealership |
| 3 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 4 |
414681900 |
Float |
| 5 |
414415200 |
Spring Clamp |
| 6 |
414420700 |
Spring Clamp |
| 7 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 8 |
414536500 |
Filter |
| 9 |
M539753 |
Support |
| 10 |
207161244 |
HEX. SCREW M6 X 12 - Call your local BRP dealership This part replaces 222061265. |
| 11 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 12 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
