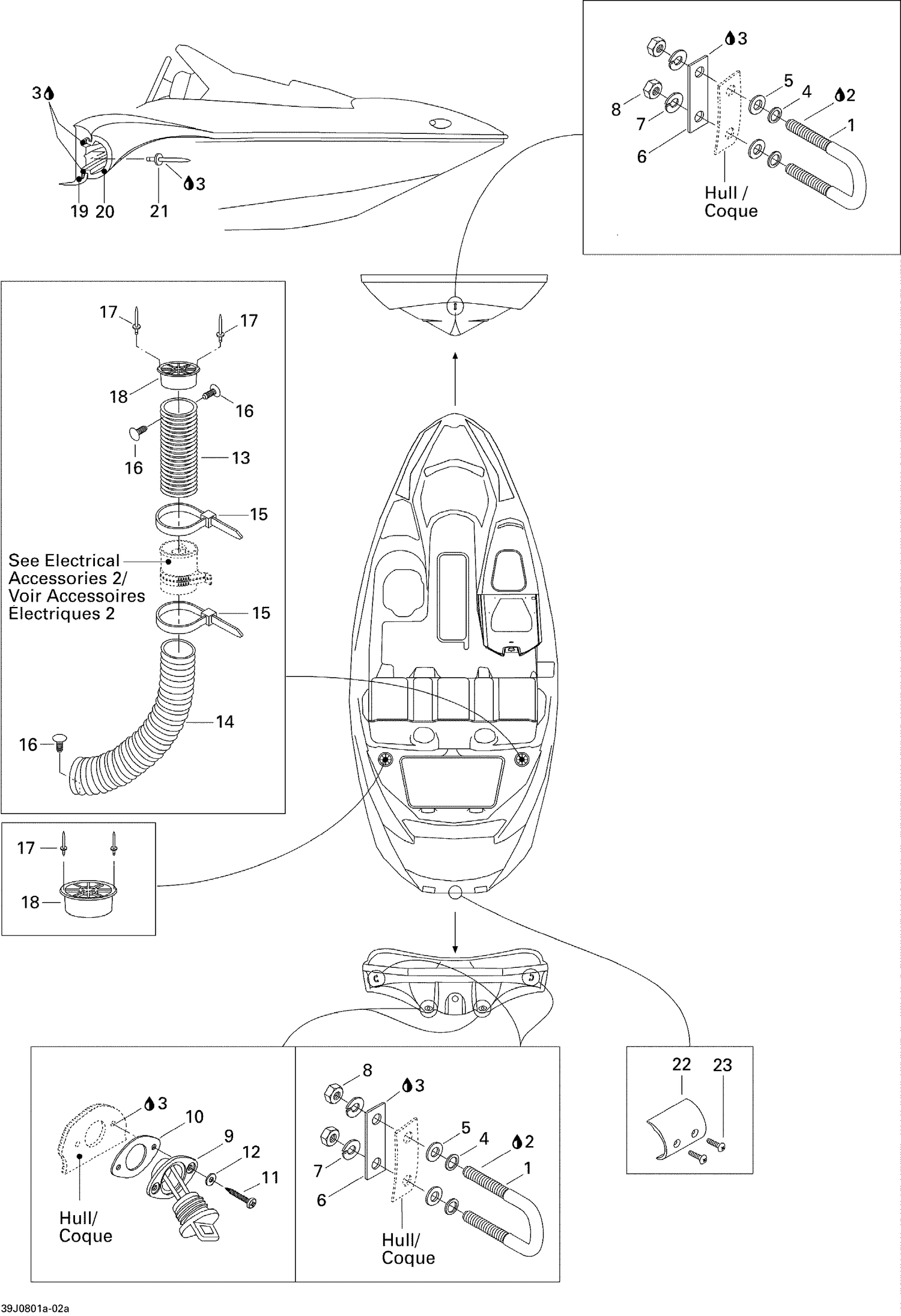

| Ref | Part Number | Description |
|---|
| 1 |
292000063 |
U-CLAMP - Call your local BRP dealership |
| 2 |
293800005 |
Loctite 271, 10 ml |
| 3 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 4 |
293050001 |
Flat Washer M8.5 x 18 |
| 5 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 6 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 7 |
234181601 |
Lock Washer 8 mm, Stainless |
| 8 |
232081600 |
Hex. Nut M8 |
| 9 |
292000187 |
Drain Plug |
| 10 |
293250030 |
GASKET - Call your local BRP dealership |
| 11 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 12 |
234041600 |
Flat Washer 4 mm, Stainless |
| 13 |
219704358 |
Was 204050122 Vent Hose 4" |
| 14 |
219704358 |
Was 204050122 Vent Hose 4" |
| 15 |
293750008 |
Tie Wrap 368 mm |
| 16 |
293730006 |
Black, Dart |
| 17 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 18 |
204050637 |
VENT GRILL 4 - Call your local BRP dealership |
| 19 |
204050467 |
Bumper, Black |
| 20 |
204050463 |
Bumper Trim, Black |
| 21 |
293150013 |
Pop Rivet 3/16" |
| 22 |
204050031 |
BUMPER COVER, BLACK - Call your local BRP dealership |
