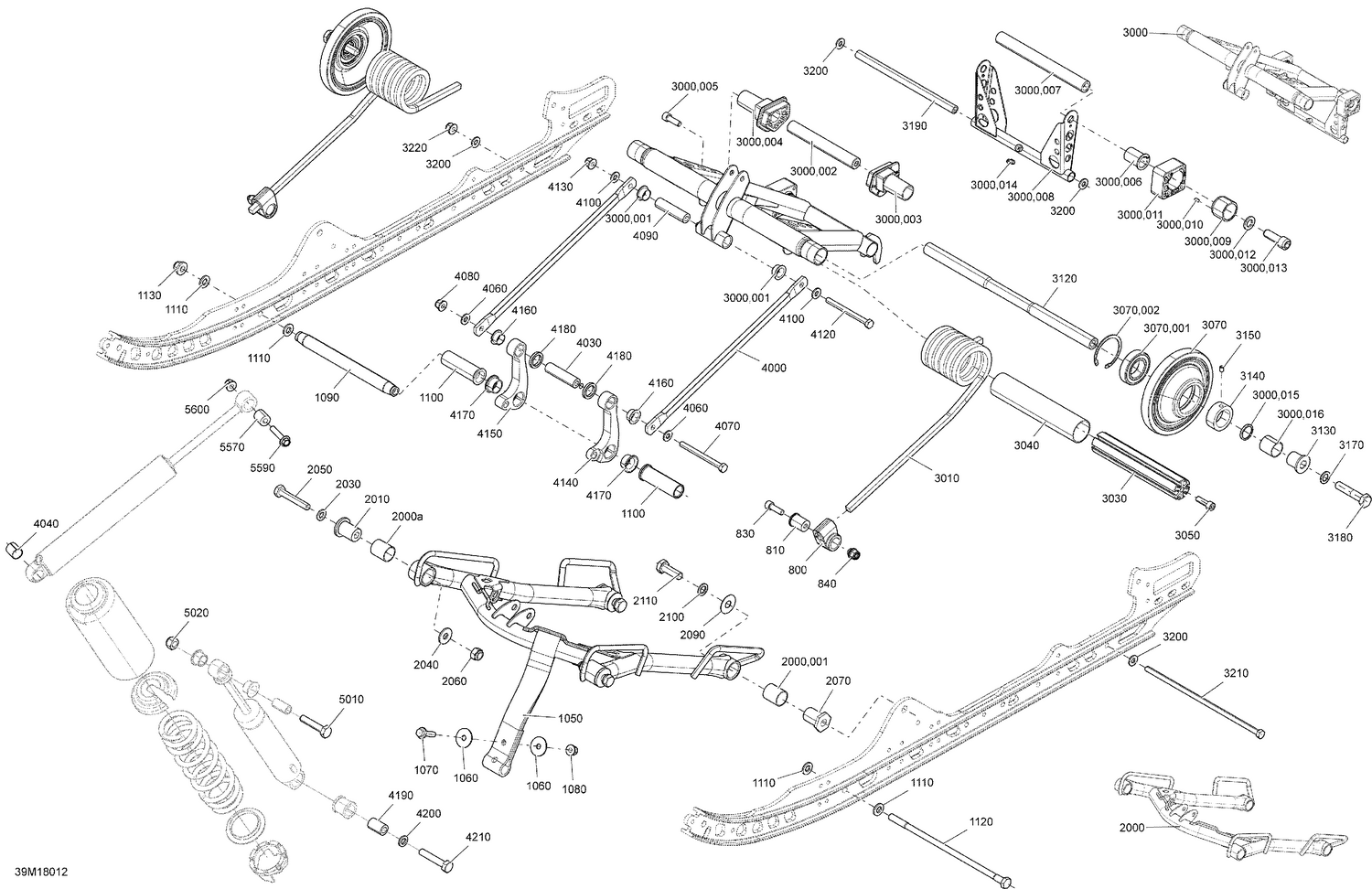

08- Rear Suspension MXZ - 600 ACE - Superior
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 1050 | 503192360 | Stopper Strap |
| 1060 | 250200128 | Flat Washer 8 mm |
| 1070 | 207683044 | Hex. Flange Screw M8 X 30 |
| 1080 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503191764 | Center Shaft |
| 1100 | 503191351 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 2010 | 503190698 | Axle |
| 2030 | 503192496 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2090 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3010 | 503191612 | Black RH Spring, Square |
| 3010 | 503191613 | Black LH Spring, Square |
| 3030 | 503191344 | Spring Axle |
| 3040 | 503191345 | Plastic Bushing |
| 3050 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 3120 | 503191776 | Upper Shaft |
| 3130 | 503191775 | Bushing |
| 3140 | 503191782 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 503192491 | Washer |
| 3180 | 250000485 | Hex. Cap Screw M12 X 60, Scotch Grip |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503191802 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4040 | 503191553 | Bushing |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 4140 | 503191890 | LH Rocker Arm |
| 4150 | 503191894 | RH Rocker Arm |
| 4160 | 503191555 | Swivel Bushing |
| 4170 | 503191552 | Bushing |
| 4180 | 503190694 | Plastic Spacer |
| 4190 | 503190604 | Central Shock Axle |
| 4200 | 503192496 | Washer |
| 4210 | 207205544 | Hex. Screw M10 X 55, Scotch Grip |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5020 | 233601466 | Elastic Locking Nut M10 |
| 5570 | 414936000 | Bushing |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
