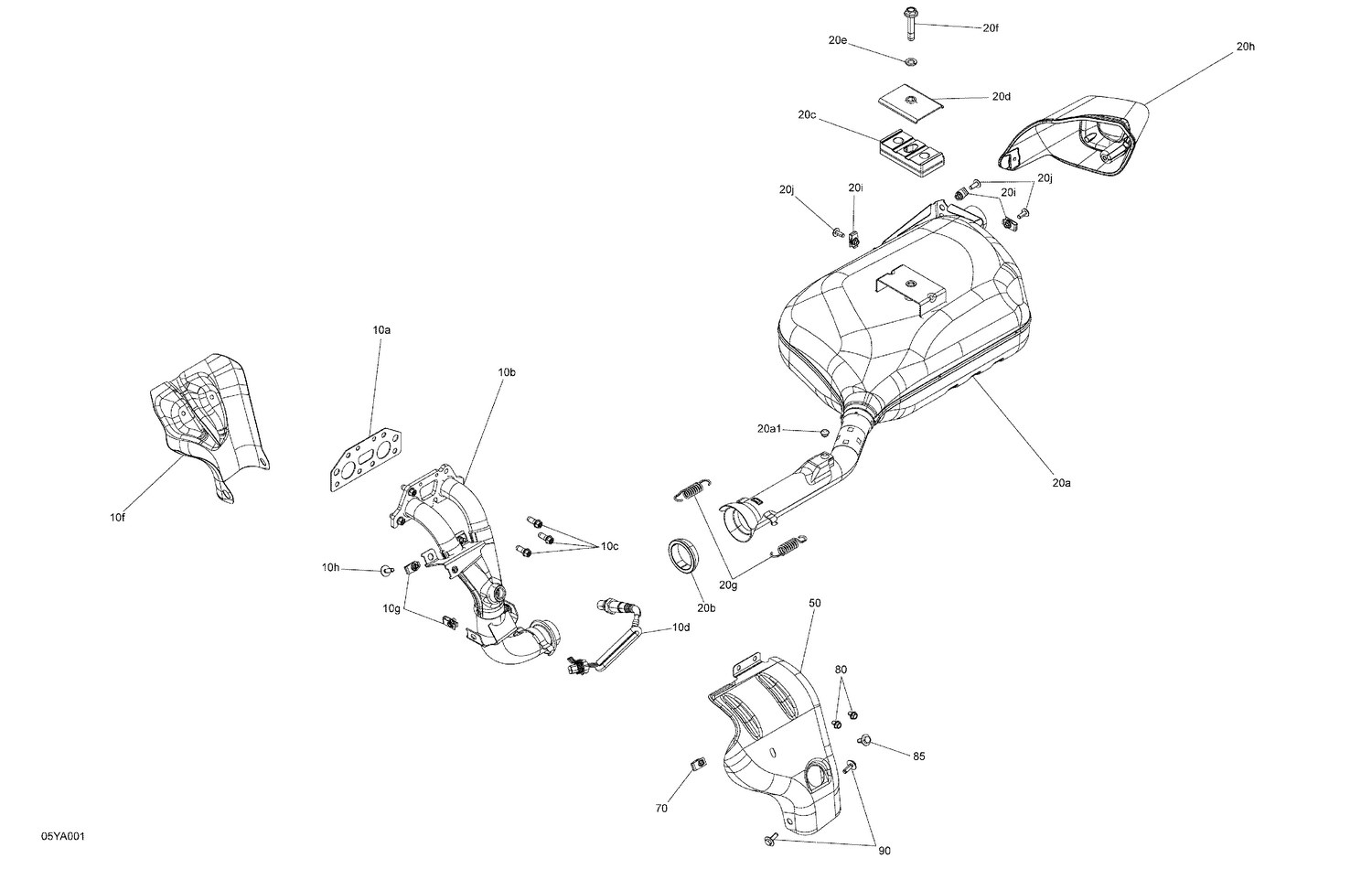

02- Engine - Exhaust
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 707601939 | Exhaust Manifold Gasket |
| 10b | 707601938 | Exhaust Manifold |
| 10c | 250001089 | Hex. Flange Screw M8 X 20 |
| 10d | 707600872 | Oxygen Sensor |
| 10f | 707602311 | Deflector |
| 10g | 250100198 | Panel Nut M6 X 1.0 |
| 10h | 250000965 | Hex Screw M6 X 20 |
| 20a | 707602573 | Muffler |
| 20a1 | 293150173 | Rivet 6,4 mm |
| 20b | 707601033 | Exhaust Gasket |
| 20c | 707603448 | Vibration Damper This part replaces 707602056. |
| 20d | 707602413 | Plate Fastener |
| 20e | 234101601 | Helicoidal Lock Washer M10 |
| 20f | 250001079 | Hex. Flange Screw M10 X 50 |
| 20g | 514055198 | Spring |
| 20h | 707602404 | Carbon Black, Muffler End Piece |
| 20i | 250100198 | Panel Nut M6 X 1.0 |
| 20j | 250000348 | Torx Truss Screw M6 X 16 |
| 50 | 707602313 | Deflector |
| 70 | 250100198 | Panel Nut M6 X 1.0 |
| 80 | 210261050 | Hex. Forming Screw M6 X 10 |
| 85 | 250000965 | Hex Screw M6 X 20 |
