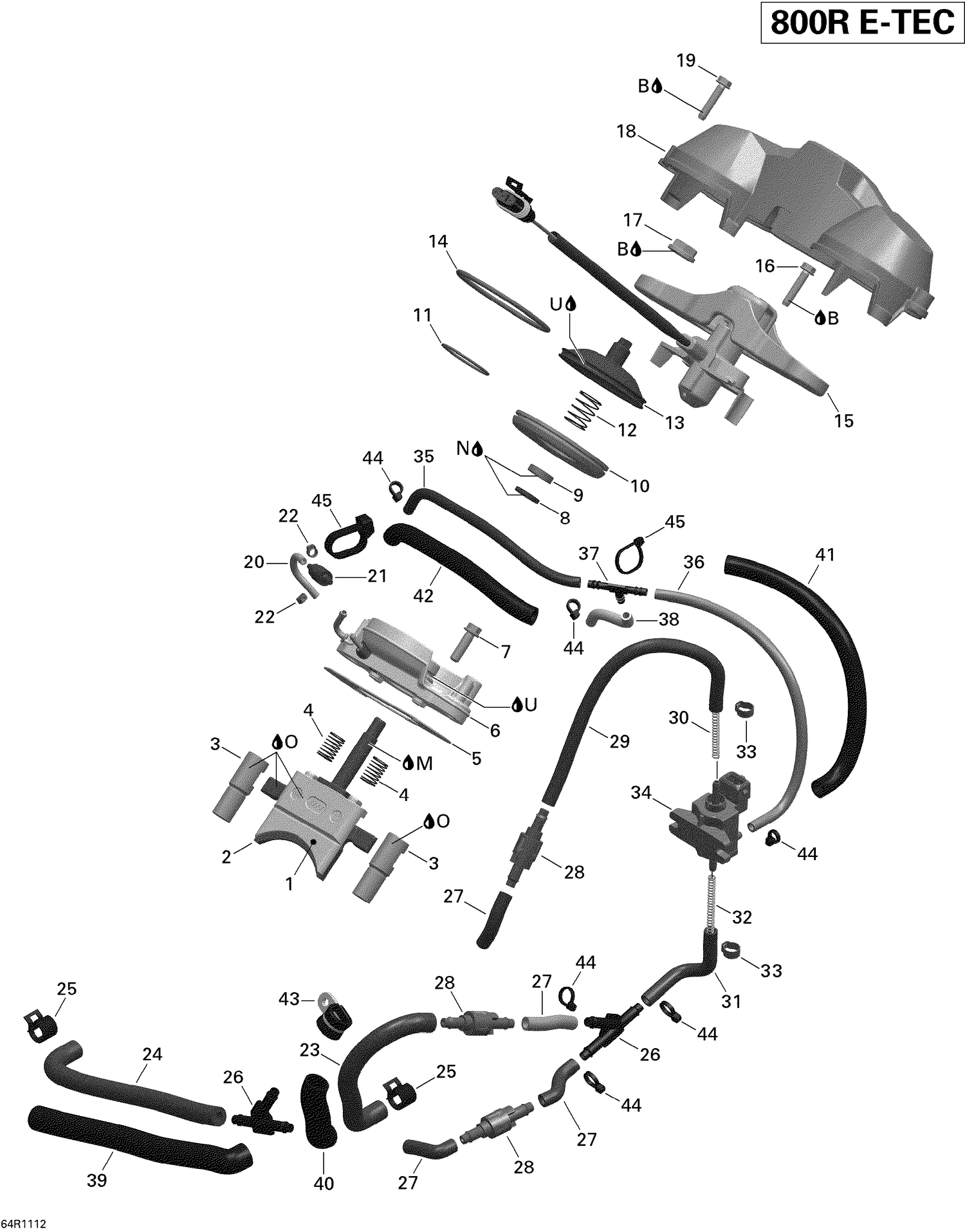

01- 3D Rave
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| M | 420297433 | Molykote G-N, 50 g |
| N | 413707000 | Dow Corning 111, 150 g |
| O | Not | Available As Spare Part - Engine Oil |
| 1 | 420854900 | Upper Exhaust Valve |
| 2 | 420854904 | Lower Exhaust Valve This part replaces 420854908. |
| 3 | 420854890 | Exhaust Valve |
| 4 | 420238558 | Spring This part replaces 420238556. |
| 5 | 420430032 | Gasket |
| 6 | 420854888 | Valve Housing |
| 7 | 420440207 | Torx Flange Screw M6 X 20 |
| 8 | 420431380 | Gasket Ring |
| 9 | 420950732 | Oil Seal This part replaces 420950730. |
| 10 | 420260725 | Bellows This part replaces 420260724. |
| 11 | 420838255 | Hose Spring |
| 12 | 420238557 | Spring |
| 13 | 420854442 | Valve Cover |
| 14 | 420939286 | Hose Spring This part replaces 420939285. |
| 15 | 420854089 | Position Sensor This part replaces 420854088. |
| 16 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 17 | 420942190 | Nut M12 X 1.5 |
| 18 | 420910821 | Cover This part replaces 420910820. |
| 19 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 20 | 219704404 | Oil Hose 1500Mm Long |
| 21 | 420956515 | Check Valve Ass’y |
| 22 | 420851508 | Clamp |
| 23 | 420460782 | MOLDED HOSE - Call your local BRP dealership |
| 24 | 420460782 | MOLDED HOSE - Call your local BRP dealership |
| 25 | 420853511 | Clamp |
| 26 | 293710059 | Y-Fitting This part replaces 420460635. |
| 27 | 420460851 | HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership |
| 28 | 420660543 | Check Valve |
| 29 | 219704410 | Polyurethane Hose 10000Mm Long |
| 30 | 420939974 | RAVE SPRING - Call your local BRP dealership This part replaces 420939972. |
| 31 | 420460852 | HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership |
| 32 | 420939974 | RAVE SPRING - Call your local BRP dealership This part replaces 420939972. |
| 33 | 420853658 | Gear Clamp |
| 34 | 270600005 | Solenoid Valve |
| 35 | 420660571 | High Pressure Air Hose, 180 mm |
| 36 | 420660575 | HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership |
| 37 | 293710068 | T-Fitting |
| 38 | 420660572 | HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership |
| 39 | 219704400 | Was 409901800 Tubing (13 mm) |
| 40 | 219704400 | Was 409901800 Tubing (13 mm) |
| 41 | 219704407 | Tubing 10 MM 1000MM Long |
| 42 | 219704407 | Tubing 10 MM 1000MM Long |
| 43 | 420851250 | Clamp |
| 44 | 293750001 | Tie Wrap 94 mm |
| 45 | 420866714 | Tie Rap |
