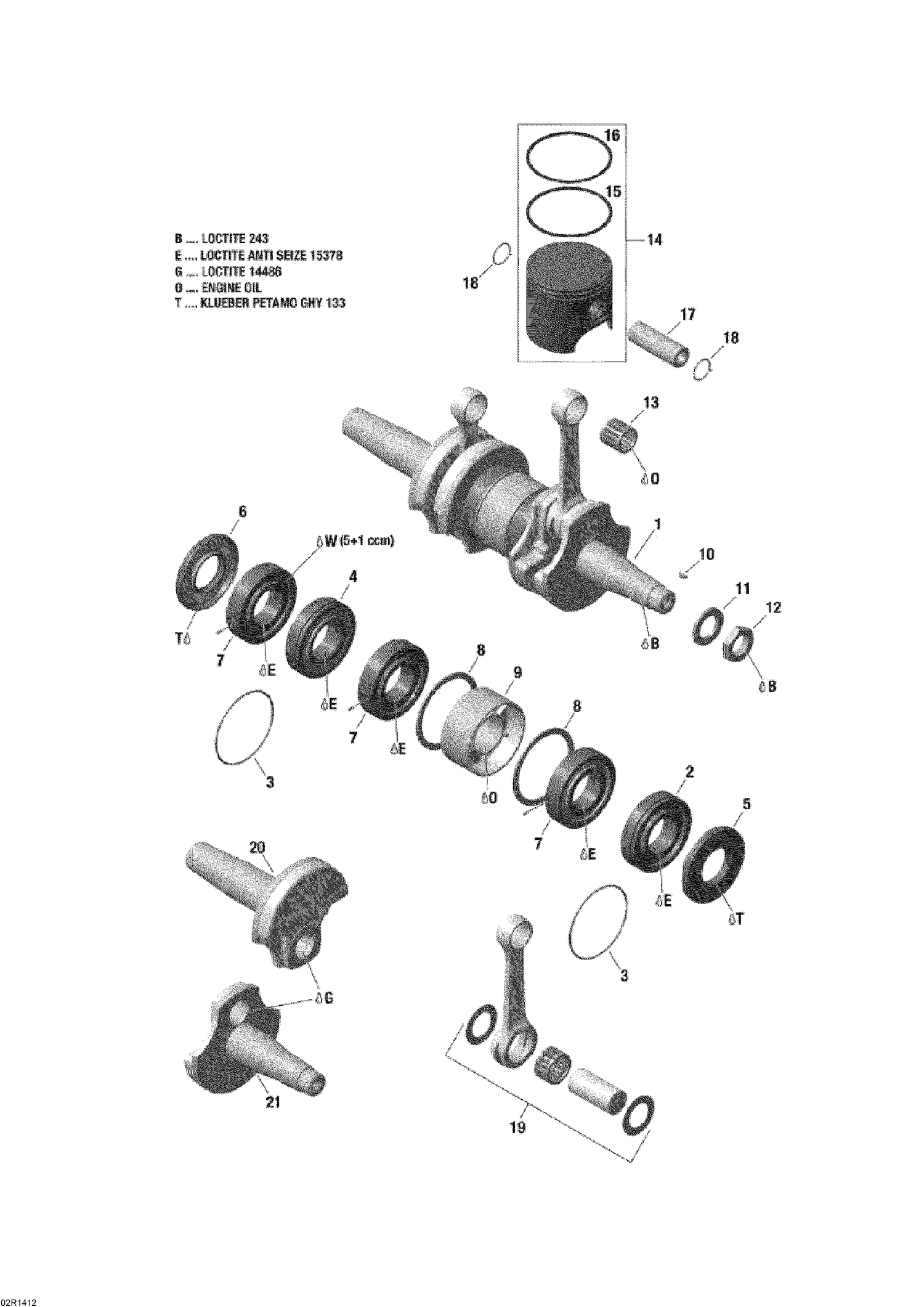

01- Crankshaft
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| E | 619600013 | Loctite 8151 (Antiseize), 400ml Spray |
| G | 619600012 | Loctite 648, 50ml |
| O | Not | Available As Spare Part - Engine Oil |
| T | 619600023 | Grease, 400g |
| 2 | 420832571 | Ball Bearing |
| 3 | 293300022 | O-Ring |
| 4 | 420832632 | Ball Bearing |
| 5 | 420831952 | Oil Seal |
| 6 | 420831955 | Oil Seal |
| 7 | 420832573 | Ball Bearing |
| 8 | 420927710 | Retaining Disk |
| 9 | 420850149 | Labyrinth Sleeve |
| 10 | 420246055 | Woodruff Key |
| 11 | 420945759 | Lock Washer |
| 13 | 420832445 | Piston Pin Bearing |
| 15 | 420815300 | Rectangular Ring 76.00mm |
| 15 | 420815301 | Rectangular Ring 76.25mm |
| 15 | 420815302 | Rectangular Ring 76.50mm |
| 16 | 420815155 | Semi-Trapez Ring 76.00mm |
| 16 | 420815156 | Semi-Trapez Ring 76.25mm |
| 16 | 420815157 | Semi-Trapez Ring 76.50mm |
| 17 | 420916407 | Piston Pin |
| 19 | 420889068 | Crankshaft Repair Kit |
| 20 | 420819181 | CRANKSHAFT PTO SIDE - Call your local BRP dealership |
| 21 | 420819213 | Crankshaft, MAG Side |
