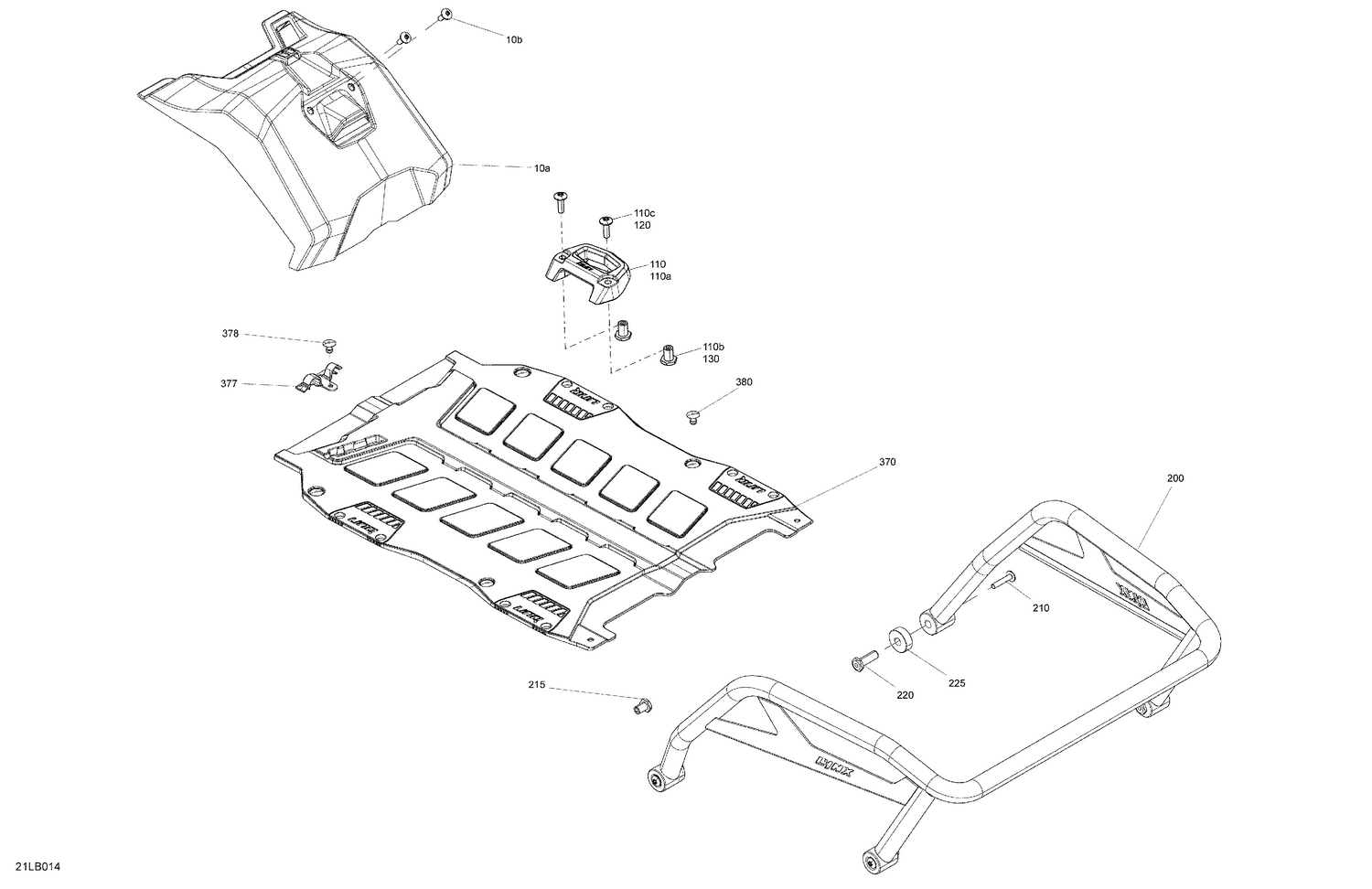

07- Body - Cargo
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 511001210 | Battery Cover |
| 10b | 250001005 | Torx Screw M6 X 16 |
| 110a | 860201806 | Luggage Rack Base With Hardware |
| 110b | 511000822 | Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 120 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 130 | 511000822 | Insert |
| 200 | 511001008 | Rack |
| 210 | 250000634 | Stainless Torx Screw M6 X 30 |
| 215 | 511000822 | Insert |
| 220 | 520001473 | Insert |
| 225 | 510006791 | Bushing |
| 370 | 860201833 | Radiator Trim Kit 165" |
| 377 | 520001722 | Cap |
| 378 | 293150104 | Pop Rivet 3/16 |
