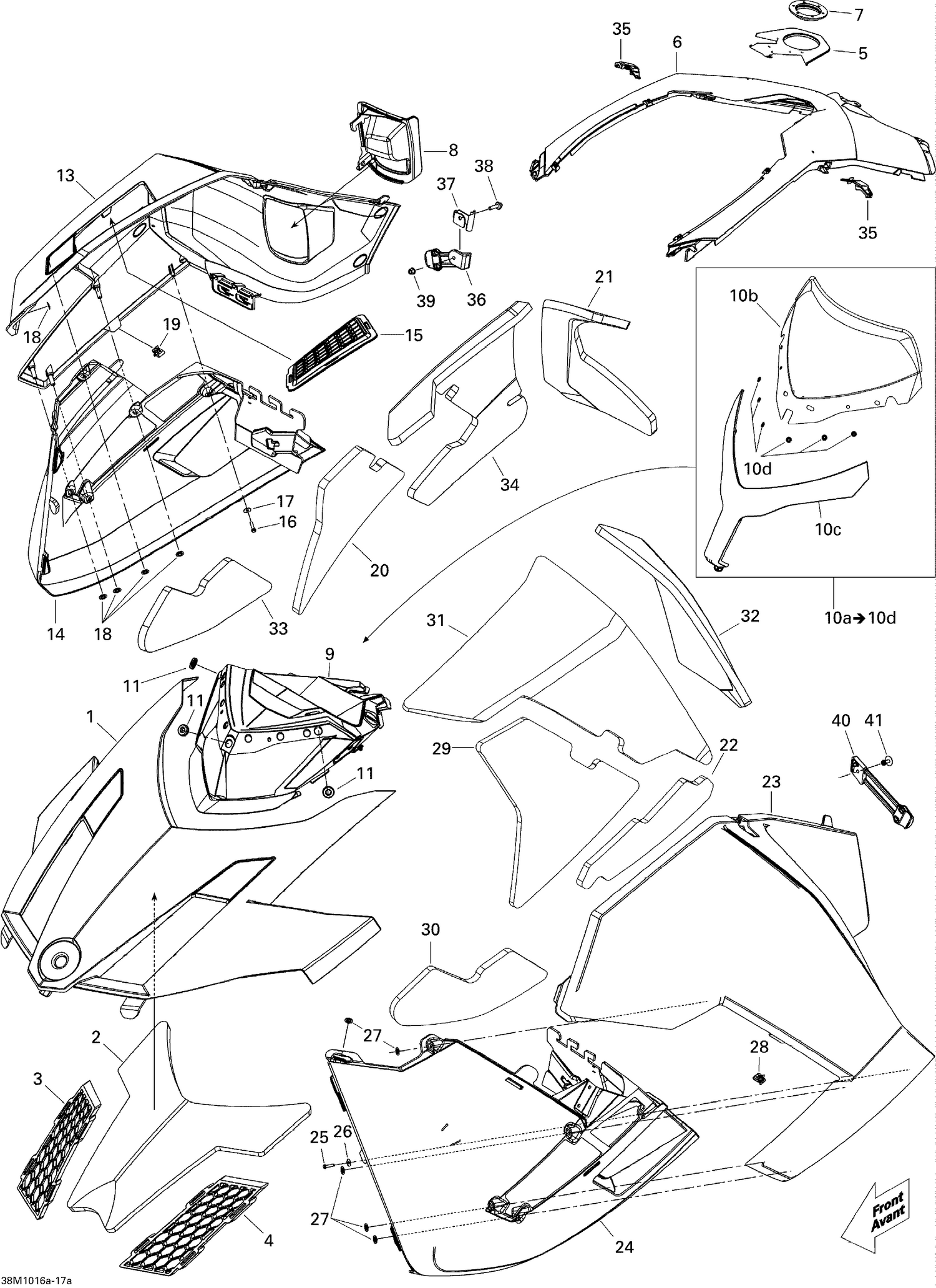

| Ref | Part Number | Description |
|---|
| 2 |
517304892 |
HOOD FOAM - Call your local BRP dealership This part replaces 517304130. |
| 3 |
517303805 |
RH Hood Grille |
| 4 |
517303804 |
LH Hood Grille |
| 5 |
517304027 |
Deep Black, Cap Console |
| 7 |
517304518 |
Console Nut |
| 8 |
517304500 |
Black, RH Console |
| 9 |
517303742 |
Black Indicator Support |
| 10c |
517303959 |
LOW WINDSHIELD SUPPORT - Call your local BRP dealership |
| 10d |
732610072 |
Push Nut |
| 11 |
517303756 |
Grommet |
| 14 |
517304373 |
PANEL_BODY LWR R B-160 - Call your local BRP dealership |
| 15 |
517303801 |
PANEL GRILL - Call your local BRP dealership |
| 16 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 17 |
234042600 |
Flat Washer 4 mm, Stainless |
| 18 |
732610072 |
Push Nut |
| 19 |
517302785 |
Edge Clip |
| 20 |
517304894 |
CENTRAL FOAM PANEL RH - Call your local BRP dealership This part replaces 517303750. |
| 21 |
517304895 |
REAR PANEL FOAM RH - Call your local BRP dealership This part replaces 517303751. |
| 22 |
517304896 |
CENTRAL FOAM PANEL LH - Call your local BRP dealership This part replaces 517304278. |
| 24 |
517304362 |
PANEL_BODY LWR L B-160 - Call your local BRP dealership |
| 25 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 26 |
234042600 |
Flat Washer 4 mm, Stainless |
| 27 |
732610072 |
Push Nut |
| 28 |
517302785 |
Edge Clip |
| 29 |
517304898 |
LH CENTRAL PANEL FOAM - Call your local BRP dealership This part replaces 517304273. |
| 30 |
517304900 |
LH LOWER PANEL FOAM - Call your local BRP dealership This part replaces 517304133. |
| 31 |
517304903 |
LH UPPER PANEL FOAM - Call your local BRP dealership This part replaces 517304275. |
| 32 |
517304904 |
LH REAR PANEL FOAM - Call your local BRP dealership This part replaces 517304135. |
| 33 |
517304906 |
RH LOWER PANEL FOAM - Call your local BRP dealership This part replaces 517304137. |
| 34 |
517304907 |
RH UPPER PANEL FOAM - Call your local BRP dealership This part replaces 517304136. |
| 35 |
517305000 |
Panel Latch This part replaces 517303973. |
| 36 |
517303612 |
RH Panel Latch |
| 37 |
517304221 |
Latch Support |
| 38 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 39 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 40 |
517303808 |
LH Panel Latch |
