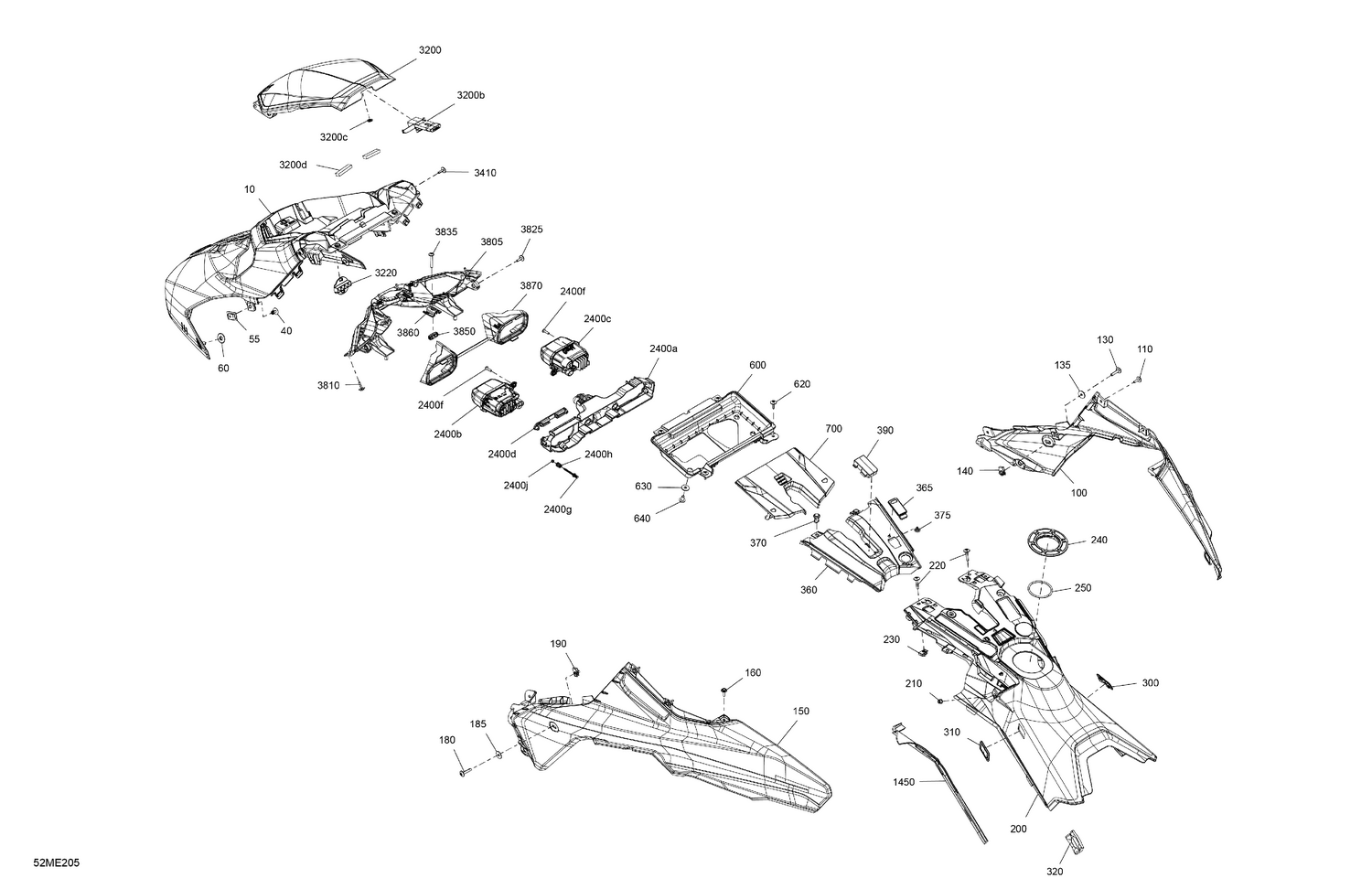

07- Body - Hood
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517309241 | Flare Yellow HG, Hood |
| 40 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 100 | 517309242 | Flare Yellow HG, RH Rear Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 517307442 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 150 | 517309243 | Flare Yellow HG, LH Rear Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 517307442 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517308760 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309507 | Round Slotted Nut |
| 250 | 706002839 | O-Ring |
| 300 | 517306587 | RH Cap |
| 310 | 517306588 | LH Cap |
| 320 | 517308930 | Self Adhesive Weather Strip |
| 360 | 517307914 | Front Console |
| 365 | 517308261 | Cap |
| 370 | 293150230 | Tuflok Plastic Rivet |
| 375 | 732610072 | Push Nut |
| 390 | 517308759 | Connecting Plate |
| 600 | 517307808 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 630 | 234062670 | Stainless Steel Flat Washer |
| 640 | 250000767 | Torx Truss Screw M6 X 12 |
| 700 | 517308112 | Access Cover |
| 1450 | 517308988 | Molded Gasket |
| 2400a | 517309050 | Headlight Support |
| 2400b | 710008089 | Low Beam Light |
| 2400c | 710006911 | High Beam Light |
| 2400d | 517309049 | Support Pivot |
| 2400f | 250000759 | Torx Truss Pt K40 X 16 |
| 2400g | 517309133 | Threaded Rod |
| 2400h | 517309058 | Compression Spring |
| 2400j | 517309134 | Specialized Nut |
| 3200b | 517305779 | Latch |
| 3200c | 732610072 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000889 | Screw M4 X 16 |
| 3805 | 517307762 | Headlight Trim |
| 3810 | 250000725 | Screw M4 X 16 |
| 3825 | 250000725 | Screw M4 X 16 |
| 3835 | 250000732 | Torx Screw Nylon |
| 3850 | 517308229 | Molded Housing Nut |
| 3860 | 517309293 | Clip |
