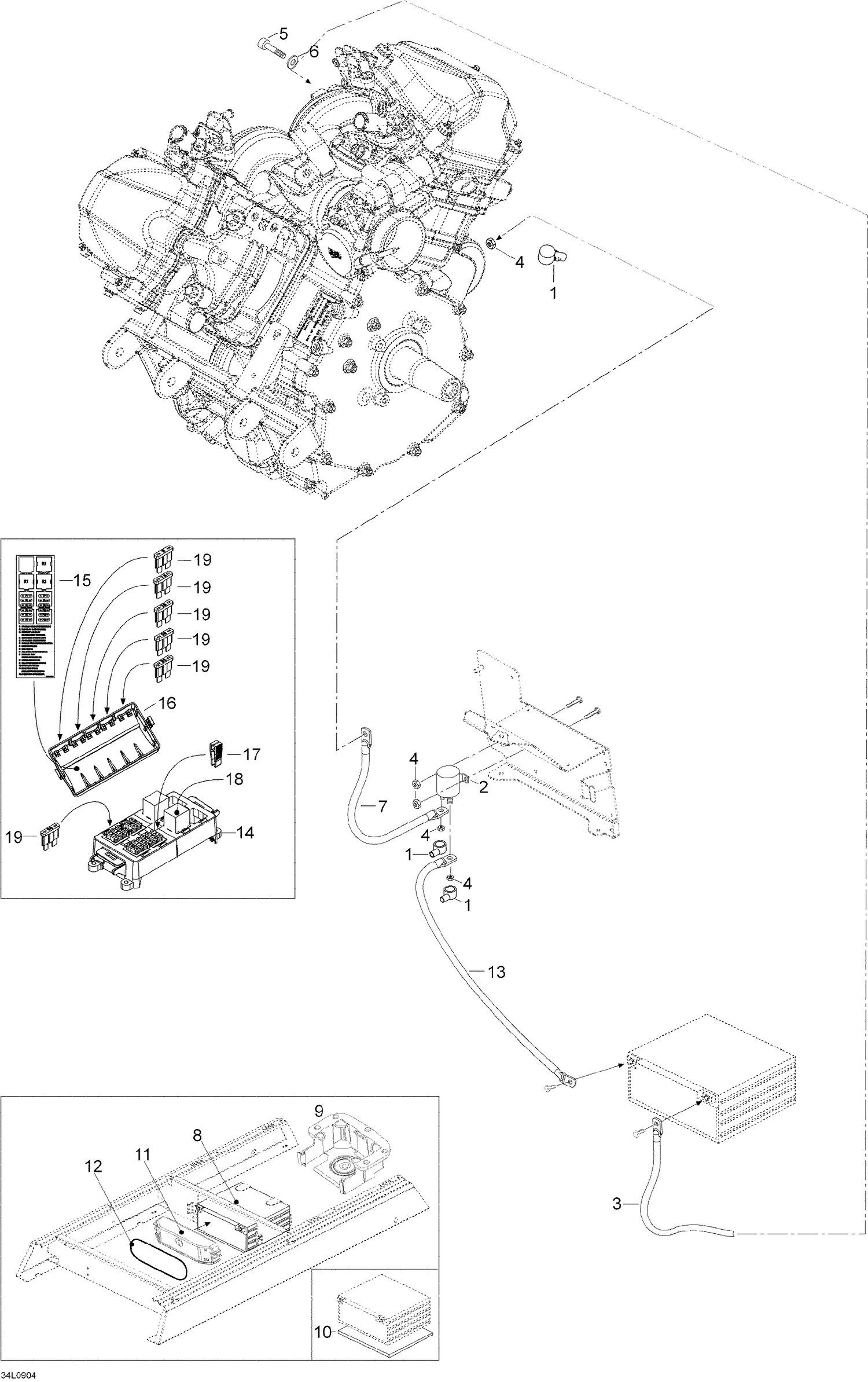

| Ref | Part Number | Description |
|---|
| 1 |
570151000 |
Cover |
| 2 |
515176011 |
Solenoid |
| 3 |
605455189 |
GROUND WIRE - Call your local BRP dealership |
| 4 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 5 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 6 |
20052 |
Lock washer A6 |
| 7 |
605355251 |
BATTERY WIRE - Call your local BRP dealership |
| 8 |
410922962 |
Battery YUASA YTX24-HL |
| 9 |
605255588 |
Battery Holder - Call your local BRP dealership |
| 10 |
605355846 |
FOAM - Call your local BRP dealership |
| 11 |
605255586 |
BATTERY COVER - Call your local BRP dealership |
| 12 |
605676001 |
O'RING 130 X6,0 - Call your local BRP dealership |
| 13 |
605151524 |
Battery wire |
| 14 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 15 |
605452411 |
Decal |
| 16 |
515176066 |
COVER - Call your local BRP dealership |
| 17 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 18 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 19 |
42040 |
Fuse 5 A |
| 19 |
42041 |
Fuse 7.5 A |
| 19 |
42042 |
Fuse 20 A |
| 19 |
42043 |
Fuse 30 A |
| 19 |
42044 |
FUSE 1 A - Call your local BRP dealership |
| 19 |
42045 |
Fuse 15 A |
| 19 |
605151524 |
Battery wire |
