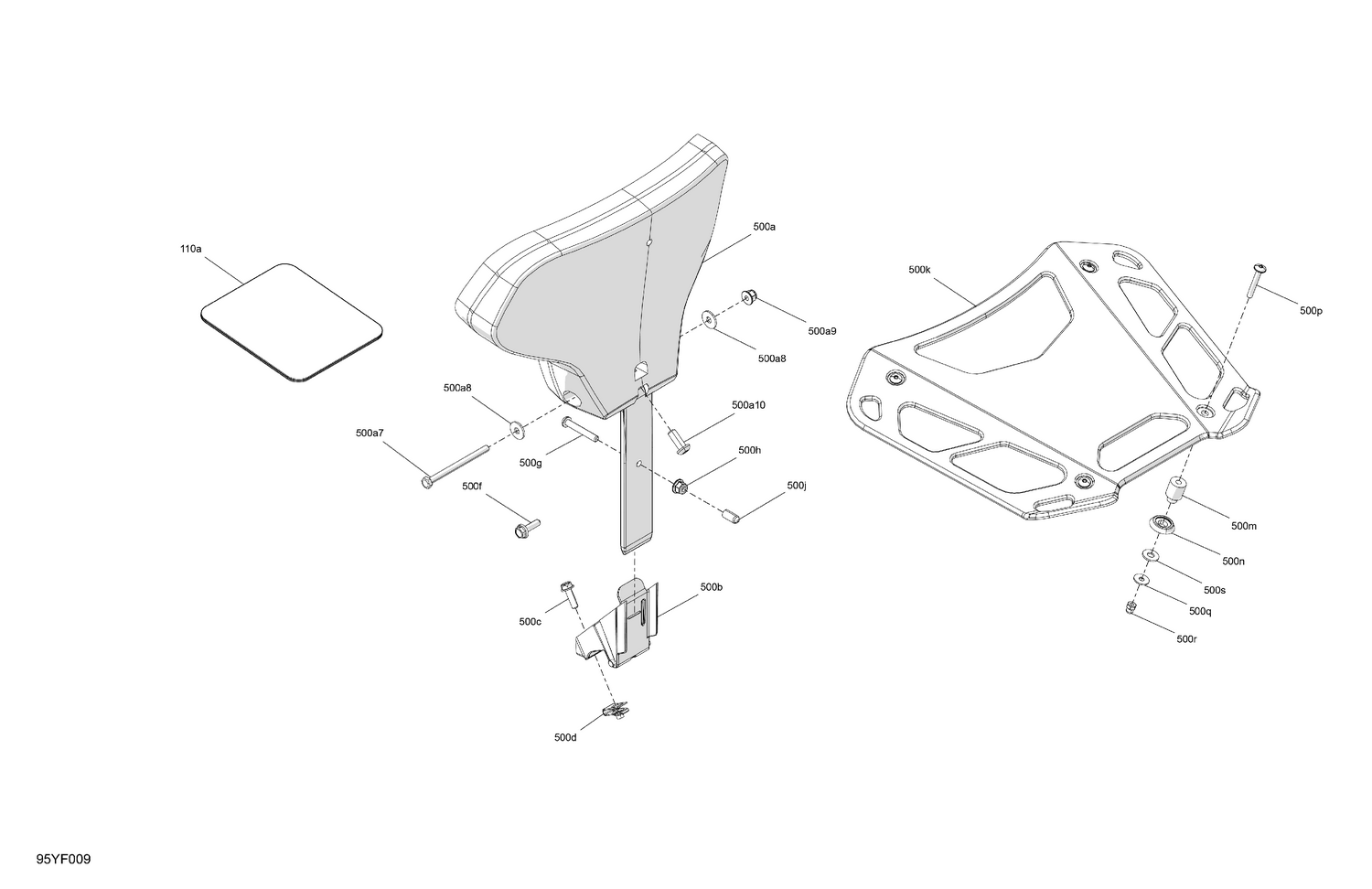

09- Miscellaneous - Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 110a | 705009823 | Protector |
| 500a10 | 250000885 | Head Screw M8 x 20 |
| 500a7 | 207068060 | Hex. Screw M6 x 80 |
| 500a8 | 234062600 | Flat Washer M6, Stainless |
| 500a9 | 233261494 | Hex. Flange Elastic Nut M6 |
| 500b | 708001678 | Backrest Slider |
| 500c | 210262050 | Hexagonal Head Screw |
| 500d | 250100198 | Panel Nut M6 X 1.0 |
| 500f | 207662044 | Hex. Flange Screw M6 X 20 |
| 500g | 205464060 | Socket Screw M6 X 40 |
| 500h | 233261494 | Hex. Flange Elastic Nut M6 |
| 500j | 515176141 | Cap |
| 500k | 219400743 | Topcase Rack Kit |
| 500m | 708002400 | SPACER - Call your local BRP dealership |
| 500n | 293830187 | Stopper |
| 500p | 250000732 | Torx Screw Nylon |
| 500q | 234052670 | Stainless Steel Flat Washer M5 |
| 500r | 250100152 | Cap Nut M5 |
