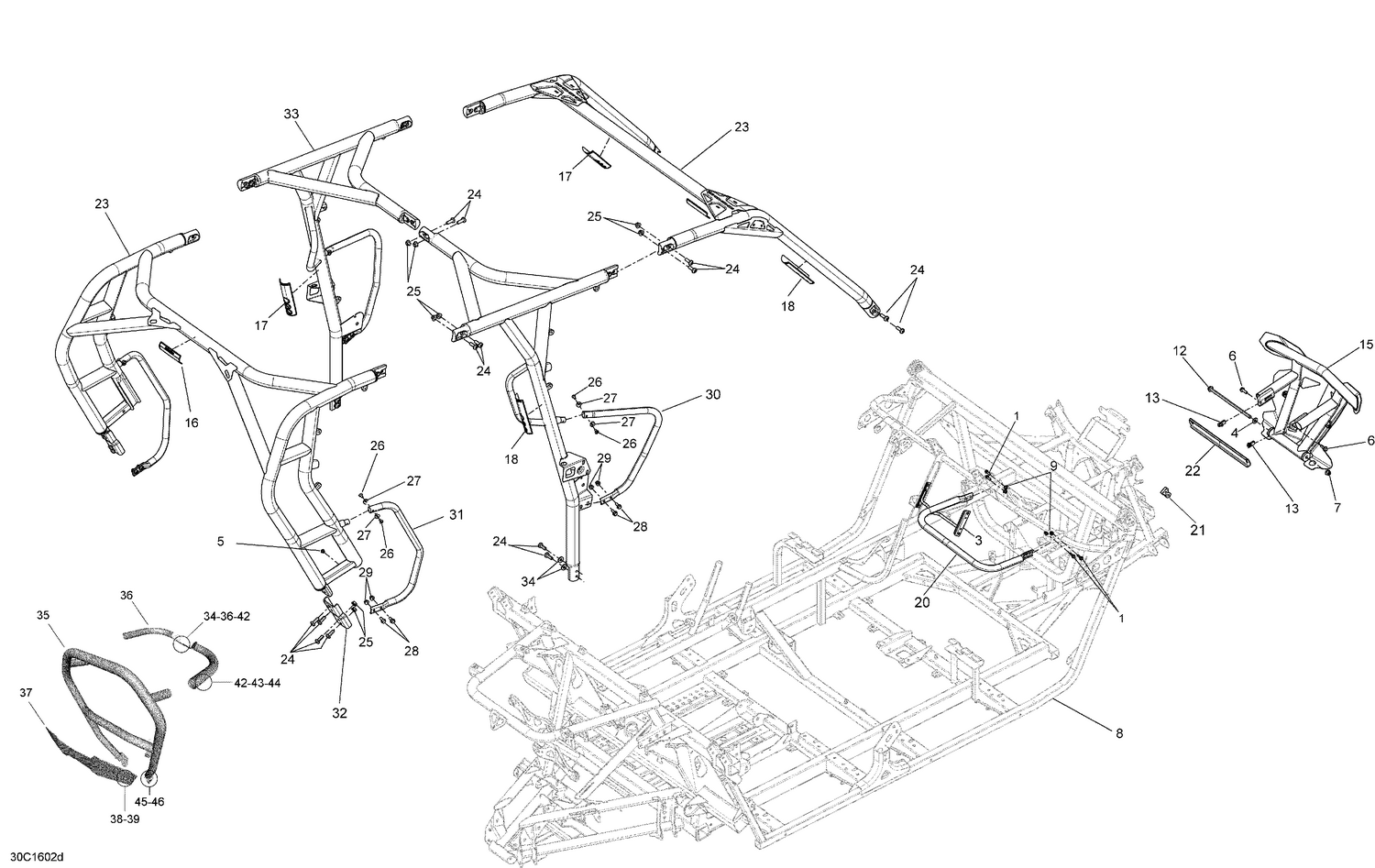

09- Frame Max- XDS Package
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662046 | Hex. Flange Screw M6 X 20 |
| 3 | 705203717 | Reinforcement Panel |
| 4 | 234201474 | Conical Spring Washer 10 mm |
| 5 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 6 | 207382544 | SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 7 | 233201436 | Hex. Flange Elastic Nut M10 |
| 8 | 705204826 | BLACK FRAME MAX - Call your local BRP dealership |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 12 | 250000597 | Hex. Flange Screw |
| 13 | 250100118 | Panel Nut M8 X 1.25 |
| 16 | 704903492 | Warning Label |
| 17 | 704903679 | Warning Label |
| 18 | 704903680 | Warning Label |
| 20 | 705203332 | Black Handle |
| 21 | 705203415 | Binding Block |
| 22 | 705203454 | FRONT SUSPENSION LINK - Call your local BRP dealership |
| 24 | 250000848 | Screw Pan M10 X 30 |
| 25 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 26 | 250000789 | Torx Truss M6X14 |
| 27 | 705202223 | Offset Washer |
| 28 | 207682044 | Hex. Flange Screw M8 X 20 |
| 29 | 233281414 | Hex. Flange Elastic Nut M8 |
| 32 | 705203514 | Rear Hand Mounting |
| 34 | 250200154 | Washer |
