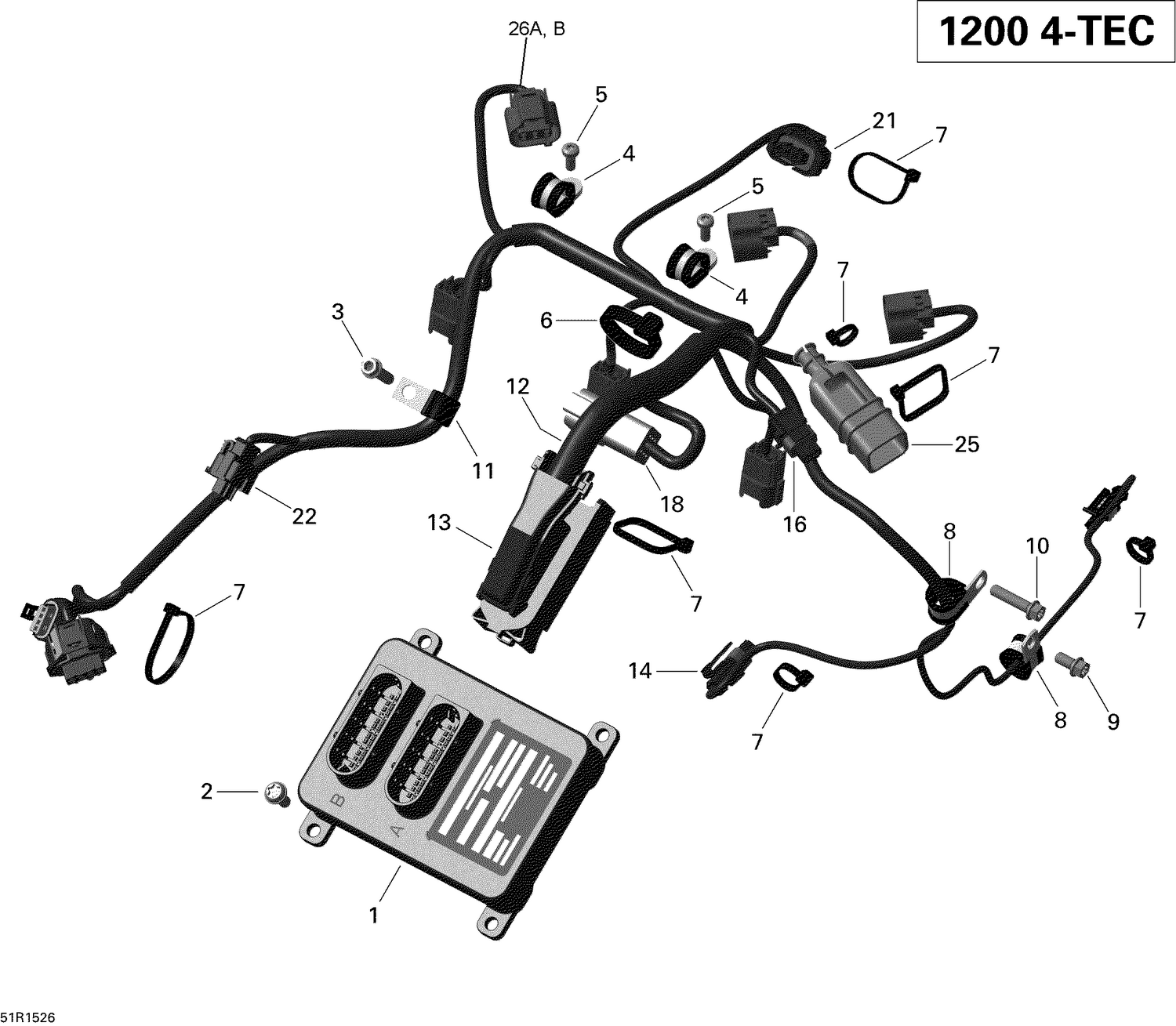

10- Engine Harness And Electronic Module _51R1526
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666128 | ECM, Engine Control Module |
| 2 | 420641588 | Torx Flange Screw M6 X 16 |
| 3 | 420440234 | Torx Flange Screw M6 X 25 |
| 4 | 420851108 | CABLE CLAMP - Call your local BRP dealership |
| 5 | 420640086 | Torx Screw M5 X 12 |
| 6 | 420866716 | Tie-Rap |
| 7 | 420651397 | Tie Rap This part replaces 420651396. |
| 8 | 420851492 | Cable Clamp |
| 9 | 420440147 | Hex. Flange Screw M6 X 12 |
| 10 | 420440234 | Torx Flange Screw M6 X 25 |
| 11 | 420251812 | Cable Clamp |
| 13 | 420664450 | ECM Connector |
| 14 | 278001005 | Male Housing, 2 Circuits |
| 16 | 278001005 | Male Housing, 2 Circuits |
| 18 | 710001539 | Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 21 | 278001830 | Housing Connector, 3 Circuits |
| 22 | 278001829 | Housing Connector, 3 Circuits |
| 25 | 420201070 | PROTECTOR - Call your local BRP dealership |
| 26 | Not | Available As Spare Part - Connector - Coil 1-3 |
| 26a | 710000335 | Female Terminal |
