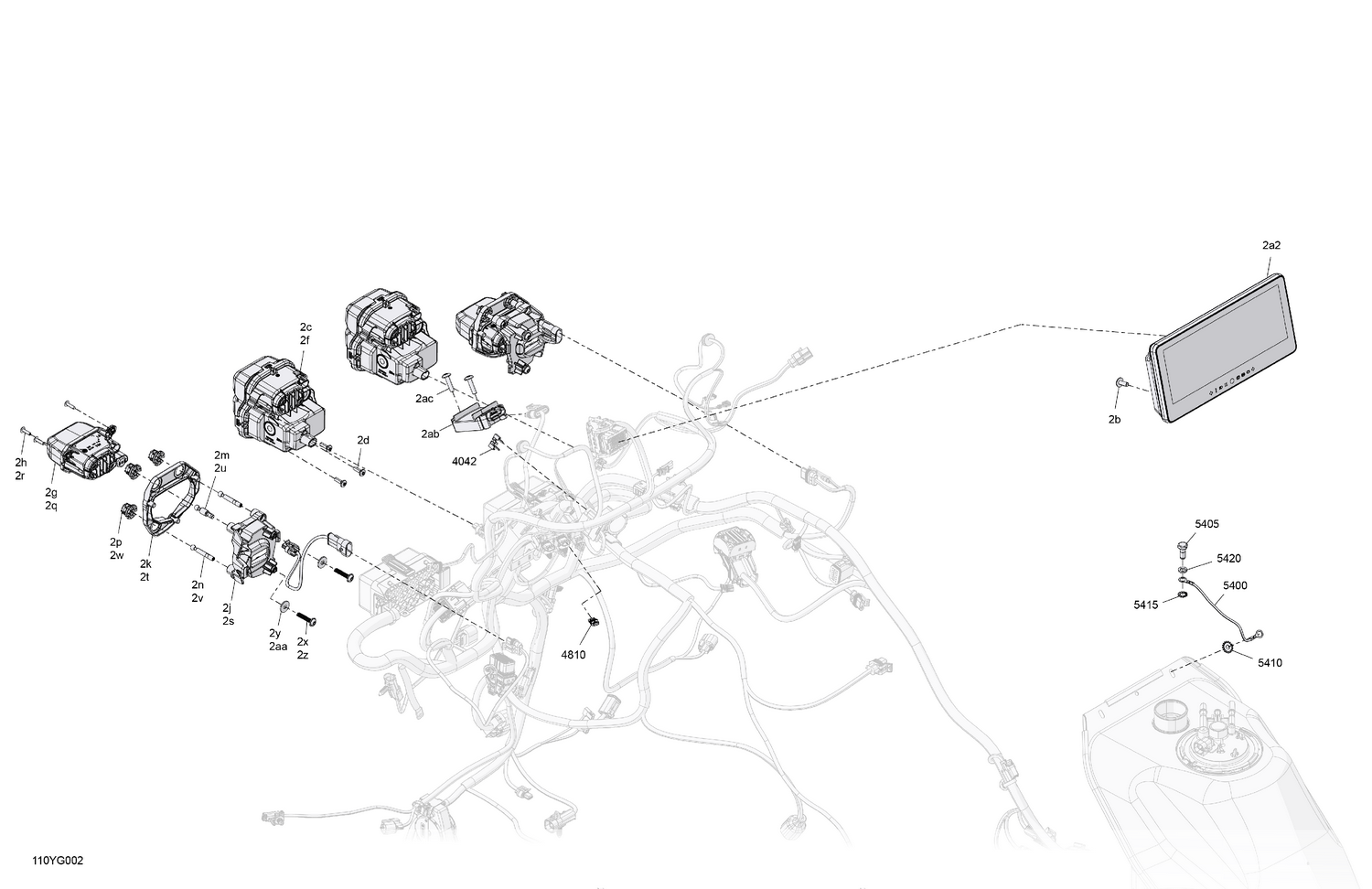

08- Electric - Sub Console Upper Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2a2 | 710010374 | Multifunction Gauge 10 |
| 2aa | 234062670 | Stainless Steel Flat Washer |
| 2ab | 278004172 | External Module GPS |
| 2ac | 250001111 | Torx Screw K50 X 35 |
| 2b | 250001429 | Truss Head Torx Screw Threadlock M6 |
| 2c | 710008694 | Front Headlight |
| 2d | 250000720 | Torx Screw K50 X 16 |
| 2f | 710008694 | Front Headlight |
| 2g | 710011574 | Low Beam Headlight |
| 2h | 250000759 | Torx Truss Pt K40 X 16 |
| 2j | 705019784 | Adapter |
| 2k | 705019801 | LH Front Low Beam Headlight Support |
| 2m | 705019966 | Ball Joint |
| 2n | 705020107 | Ball Joint |
| 2p | 708400955 | Retaining Ring |
| 2q | 710011574 | Low Beam Headlight |
| 2r | 250000759 | Torx Truss Pt K40 X 16 |
| 2s | 705019785 | Adapter |
| 2t | 705019802 | RH Front Low Beam Headlight Support |
| 2u | 705019966 | Ball Joint |
| 2v | 705020107 | Ball Joint |
| 2w | 708400955 | Retaining Ring |
| 2x | 250000949 | Screw PT K60 X 30 |
| 2y | 234062670 | Stainless Steel Flat Washer |
| 2z | 250000949 | Screw PT K60 X 30 |
| 4042 | 710001222 | Lock |
| 4810 | 708305003 | Connector Cap |
| 5400 | 710006436 | Fuel Tank Cable |
| 5405 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5415 | 234481608 | Serrated Lock Washer 8 mm |
