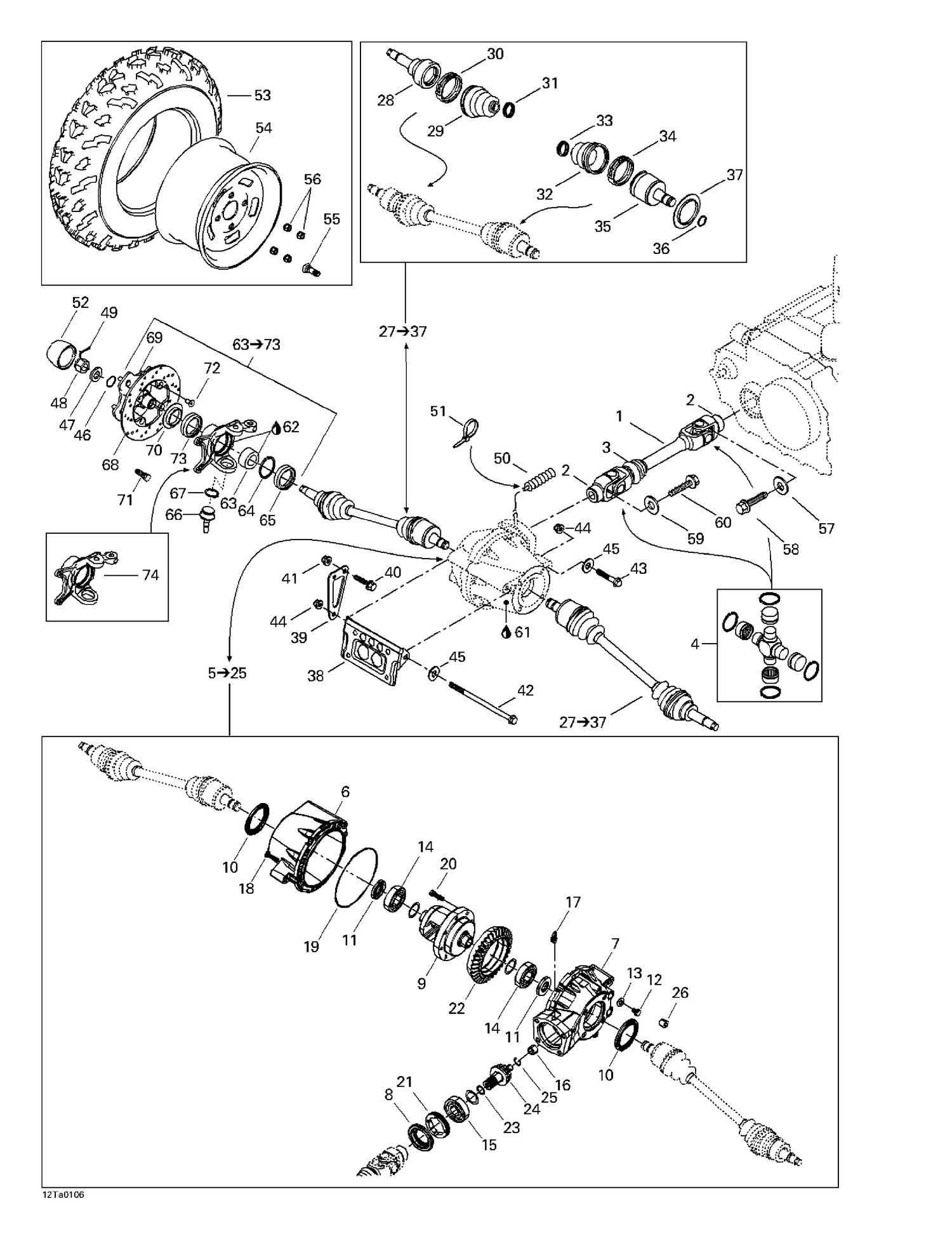

05- Drive System, Front
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705400036 | Wear Ring |
| 3 | 705400051 | PROTECTOR - Call your local BRP dealership |
| 4 | 715900325 | Ens. Croix*U-Joint Cross Kit This part replaces 703500002. |
| 6 | 705400025 | Differential Cap |
| 7 | 705400026 | Differential Carrier |
| 8 | 705401481 | Oil Seal This part replaces 705400027. |
| 9 | 705400404 | DIFFERENTIAL - Call your local BRP dealership This part replaces 705400004. |
| 10 | 705400019 | OIL SEAL - Call your local BRP dealership |
| 11 | 705401618 | Gasket This part replaces 705500081. |
| 12 | 705500298 | Drain Plug |
| 13 | 705500299 | SEAL RING - Call your local BRP dealership |
| 14 | 705401606 | Ball Bearing This part replaces 705500080. |
| 15 | 705500074 | Ball Bearing |
| 16 | 705500077 | Needle Bearing |
| 17 | 705500124 | Vent Valve |
| 18 | 705500088 | SCREW - Call your local BRP dealership |
| 19 | 705500091 | Seal |
| 20 | 705500090 | RING GEAR SCREW - Call your local BRP dealership |
| 21 | 705401603 | Nut This part replaces 705500072. |
| 22 | 705500087 | Gear (36 Teeth) |
| 23 | 705500073 | O-Ring |
| 24 | 705500076 | GEAR (10 TEETH) - Call your local BRP dealership |
| 25 | 705500102 | Retaining Ring |
| 26 | 705500143 | Filler/Level Plug |
| 30 | 705400063 | Clamp (big) |
| 31 | 705400064 | CLAMP - Call your local BRP dealership |
| 33 | 705400064 | CLAMP - Call your local BRP dealership |
| 34 | 705400065 | Clamp (Big) |
| 35 | 705400040 | RH Plunging Joint |
| 36 | 705400042 | CIRCLIP - Call your local BRP dealership |
| 37 | 705400016 | Wear Ring |
| 38 | 705400068 | Bracket (Differential) |
| 39 | 705400069 | RH Diffential Front Bracket |
| 40 | 207682044 | Hex. Flange Screw M8 X 20 |
| 41 | 233281414 | Hex. Flange Elastic Nut M8 |
| 44 | 233101414 | Hex. Flange Nut M10 |
| 45 | 250200003 | Flat Washer |
| 47 | 250200019 | WASHER - Call your local BRP dealership |
| 48 | 232291413 | Hex. Flange Castellated Nut M18 |
| 50 | 705400552 | Rubber Bellow This part replaces 705400066. |
| 51 | 293750001 | Tie Wrap 94 mm |
| 52 | 705400012 | WHEEL CAP - Call your local BRP dealership |
| 55 | 705400193 | Rim Valve With Cap This part replaces 705400053. |
| 56 | 705400013 | HEX. NUT - Call your local BRP dealership |
| 57 | 211200041 | Washer |
| 59 | 250200014 | Flat Washer M10 |
| 62 | 293550010 | Synthetic Grease, 400 G |
| 65 | 293250090 | Oil Seal |
| 66 | 706200653 | Ball Joint This part replaces 706200091. |
| 67 | 293370009 | Circlip 32 mm |
| 71 | 250300055 | Wheel Stud M10 X 1.25 This part replaces 211300020. |
| 705400041 | LH | Plunging Joint 705400041 |
