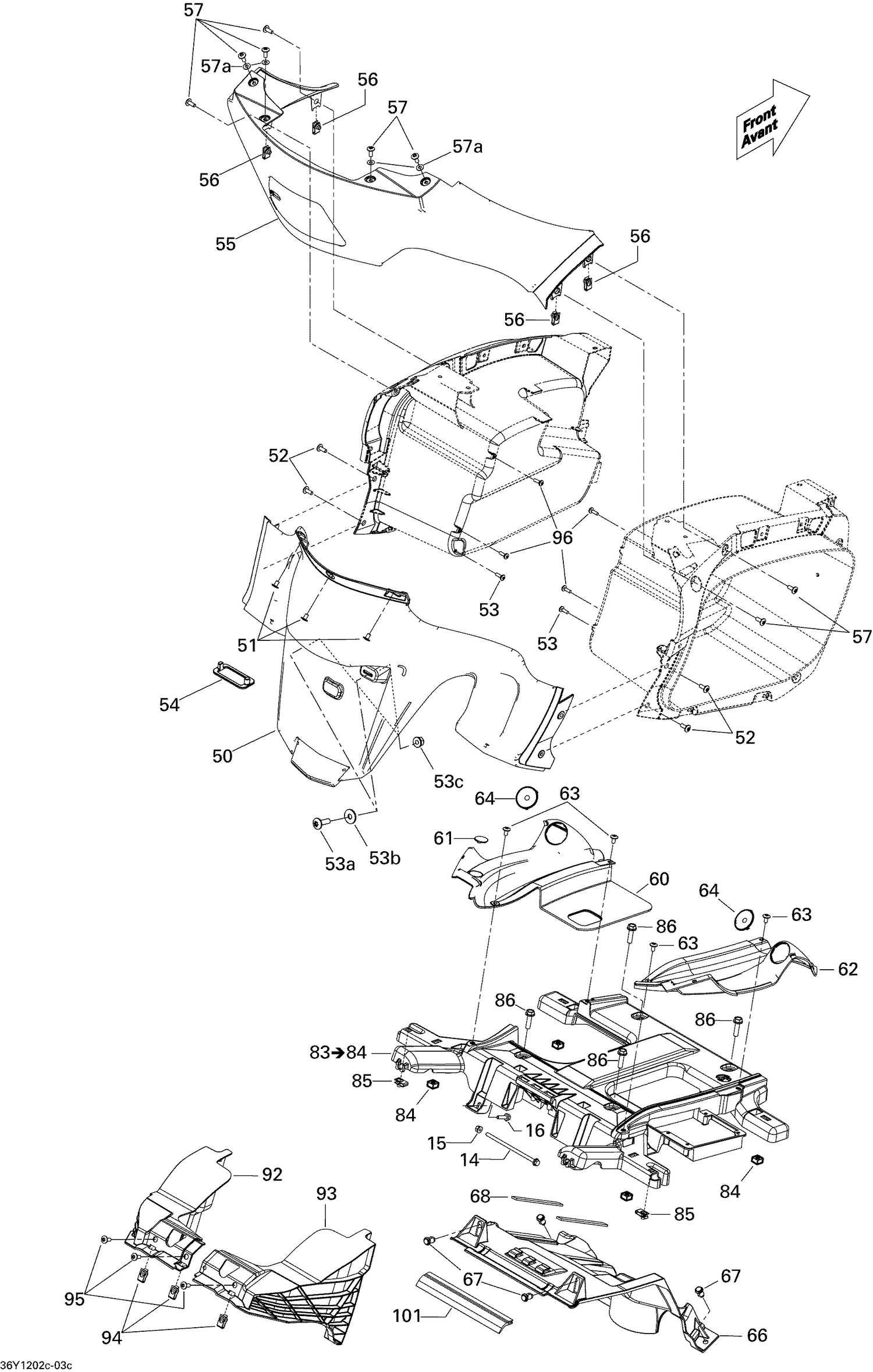

09- Luggages Rear Fender
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 14 | 230663084 | Hex. Flange Screw M6 X 130 |
| 15 | 233261494 | Hex. Flange Elastic Nut M6 |
| 16 | 207561234 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 50 | 708302277 | Fender Rear This part replaces 708300020. |
| 51 | 250000349 | Torx Truss Screw M6 X 10 |
| 52 | 250000348 | Torx Truss Screw M6 X 16 |
| 53 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 53a | 250000303 | Torx Truss Screw M6 X 20 |
| 53b | 234062600 | Flat Washer M6, Stainless |
| 53c | 233261494 | Hex. Flange Elastic Nut M6 |
| 54 | 708300177 | License Plate Light Support |
| 56 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 57 | 250000348 | Torx Truss Screw M6 X 16 |
| 57a | 705003207 | Plastic Washer |
| 60 | 708300209 | LH Handle Pannel |
| 61 | 708300405 | Cap |
| 62 | 708300027 | RH Handle Pannel |
| 63 | 250000454 | Torx Screw M6 X 12 |
| 66 | 708300028 | Under Tail Rear Wheel Cover |
| 67 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 68 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 84 | 269500725 | M6 Nut Housing Ass'y |
| 85 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 86 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 92 | 708300327 | LH Inner Fender |
| 93 | 708300328 | RH Inner Fender |
| 94 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 95 | 250000350 | Torx Truss Screw M6 X 20 |
| 96 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
