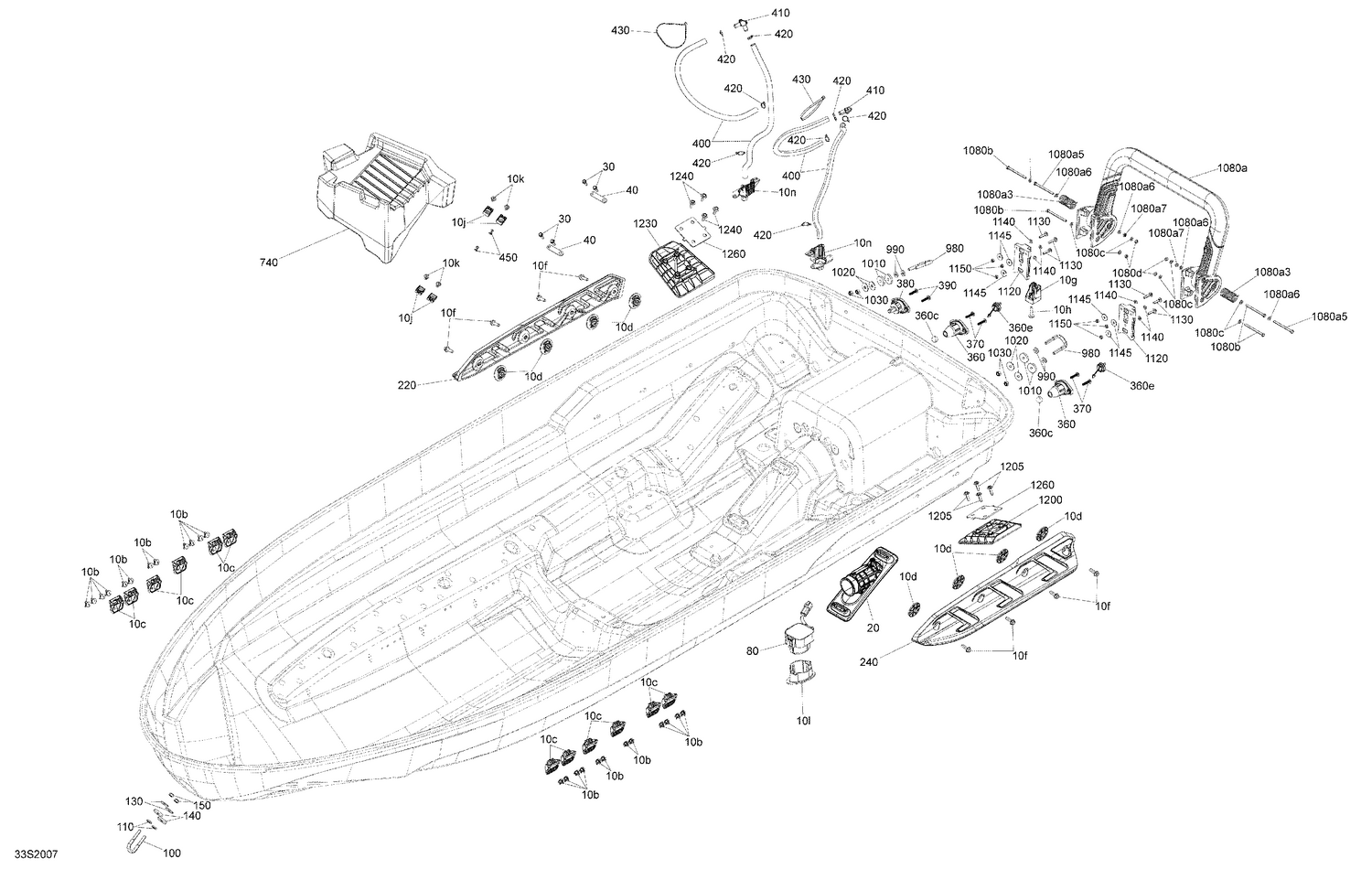

09- Hull
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 293150067 | Rivet |
| 10c | 270000933 | Strap Retaining |
| 10d | 293450387 | Housing Nut M8 This part replaces 293450363. |
| 10f | 250000994 | Torx-Head Screw M8 X 35 |
| 10g | 270000988 | Strap Anchor |
| 10h | 250000399 | Hexagonal Cap Screw M6 X35 |
| 10j | 270000854 | Strap Anchor |
| 10k | 293150186 | Pop Rivet 3/16 |
| 10n | 269800956 | Pump Support This part replaces 269800816. |
| 20 | 293450362 | Through Hull Fitting |
| 30 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 40 | 291004907 | Reinforcement |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 140 | 293830037 | Rubber Washer |
| 150 | 232581200 | Hex. Elastic Nut M8 Brass |
| 220 | 292001953 | RH Sponson |
| 240 | 292001954 | LH Sponson |
| 360c | 293830080 | Floating Ball |
| 360e | 292002022 | Plug Ass'y |
| 370 | 250001007 | Screw Torx M6.81 X 30 |
| 380 | 292002153 | Drain Neck Ass'y |
| 390 | 250001007 | Screw Torx M6.81 X 30 |
| 400 | 219704393 | Polyurethane Hose 1000Mm Long |
| 410 | 293710152 | Fitting Elbow 90° |
| 420 | 293750001 | Tie Wrap 94 mm |
| 430 | 293750008 | Tie Wrap 368 mm |
| 450 | 293150037 | Avdel Rivet 3/16" |
| 740 | 292002011 | Cooler Float |
| 980 | 292000933 | U-Clamp |
| 990 | 293050001 | Flat Washer M8.5 x 18 |
| 1010 | 293830037 | Rubber Washer |
| 1020 | 250200175 | Flat Washer 8 mm, Stainless |
| 1030 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1080a | 295100869 | Ladder Ass'y |
| 1080a3 | 292002107 | Spring |
| 1080a5 | 207068060 | Hex. Screw M6 x 80 |
| 1080a6 | 234061600 | Stainless Flat Washer M6 |
| 1080a7 | 232561600 | Hex. Elastic Stop Nut M6 |
| 1080b | 207068060 | Hex. Screw M6 x 80 |
| 1080c | 234061600 | Stainless Flat Washer M6 |
| 1080d | 232561600 | Hex. Elastic Stop Nut M6 |
| 1120 | 292002113 | Ladder Attachment |
| 1130 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 1140 | 234061600 | Stainless Flat Washer M6 |
| 1145 | 250200022 | Flat Washer M6.6 X 22 |
| 1150 | 232561200 | Brass Elastic Stop Nut M6 |
| 1200 | 292002102 | LH Trim Tab |
| 1205 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1230 | 292002103 | RH Trim Tab |
| 1240 | 250000978 | Hexagonal Cap Screw M6 X 25 |
