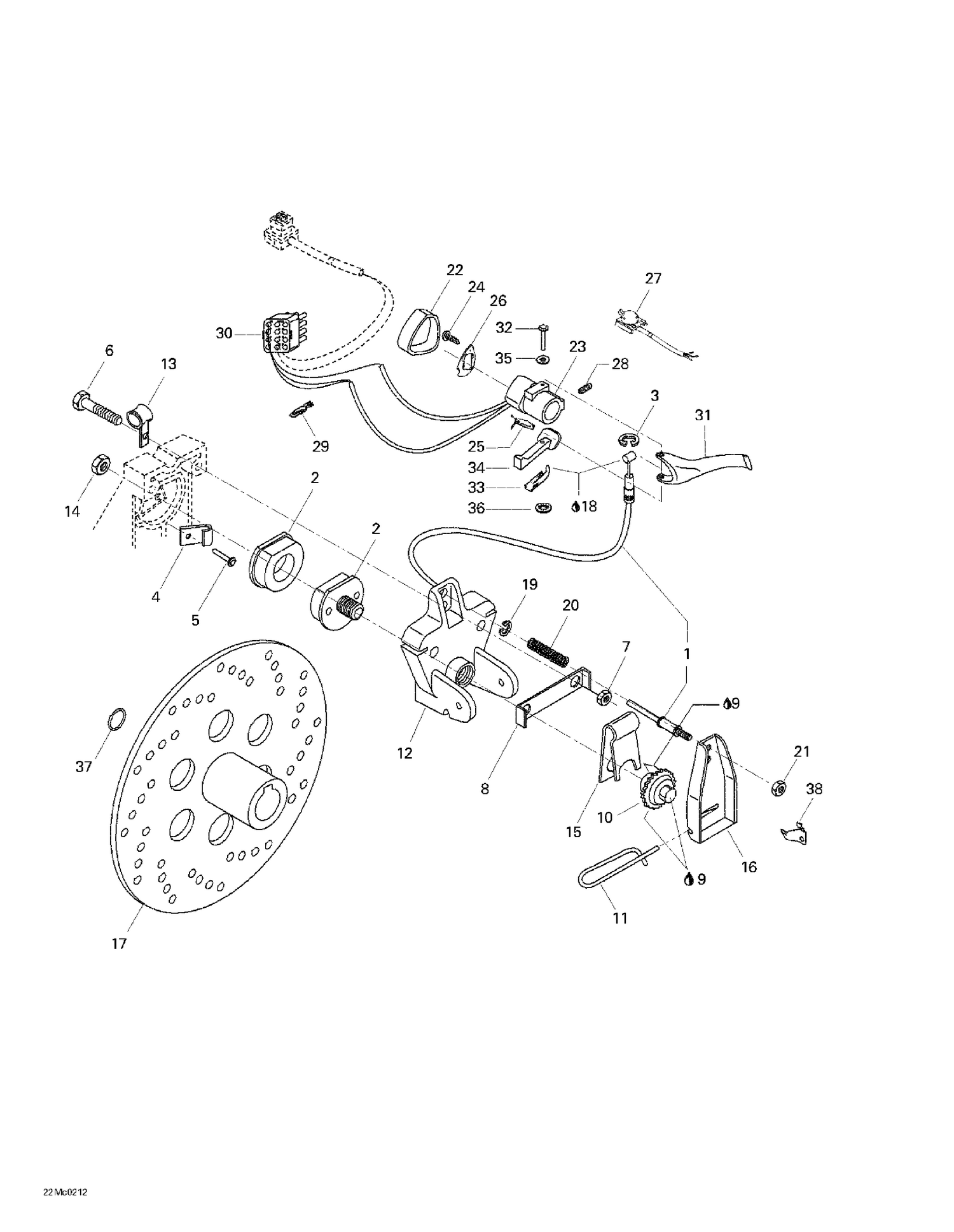

| Ref | Part Number | Description |
|---|
| 1 |
414922500 |
BRAKE CABLE - Call your local BRP dealership |
| 2 |
860700700 |
Pad_Brake Kit - Call your local BRP dealership |
| 3 |
M31038 |
Circlip |
| 4 |
507022600 |
WEAR INDICATOR - Call your local BRP dealership |
| 5 |
M36489 |
Rivet |
| 6 |
207085596 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
507020400 |
LOCK-TAB - Call your local BRP dealership |
| 9 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 10 |
507032310 |
WELDED RATCHET WHEEL - Call your local BRP dealership |
| 11 |
507032306 |
HAIR PIN - Call your local BRP dealership |
| 12 |
507027600 |
Machined Caliper |
| 13 |
M5446616 |
Rope Guide |
| 14 |
M33055 |
Nut-lock |
| 15 |
507020200 |
RELEASE SPRING - Call your local BRP dealership |
| 16 |
507021500 |
LEVER - Call your local BRP dealership |
| 17 |
507029000 |
WELDED DISK - Call your local BRP dealership |
| 18 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 19 |
M31038 |
Circlip |
| 20 |
414460600 |
SPRING - Call your local BRP dealership |
| 21 |
232561414 |
Elastic Stop Nut M6 |
| 22 |
572073800 |
BRAKE COVER - Call your local BRP dealership |
| 23 |
M24034 |
Brake Housing |
| 24 |
414473200 |
Screw |
| 25 |
415085700 |
Brake Switch |
| 26 |
572086600 |
LH Plate |
| 27 |
415085800 |
Dimmer Switch |
| 28 |
414440800 |
Socket Set Screw M8 X 10 |
| 29 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 30 |
M42266 |
Male Housing |
| 31 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 32 |
517229400 |
PIN - Call your local BRP dealership |
| 33 |
507032317 |
SPRING - Call your local BRP dealership |
| 34 |
572025200 |
Brake Lever |
| 35 |
414729400 |
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 36 |
389804300 |
Push Nut |
| 37 |
414928900 |
O'RING - Call your local BRP dealership |
